Maintenance And Adjustment
117
Rear Suspension Compression
Damping Adjustment - Thruxton R
Only
ciyq
1

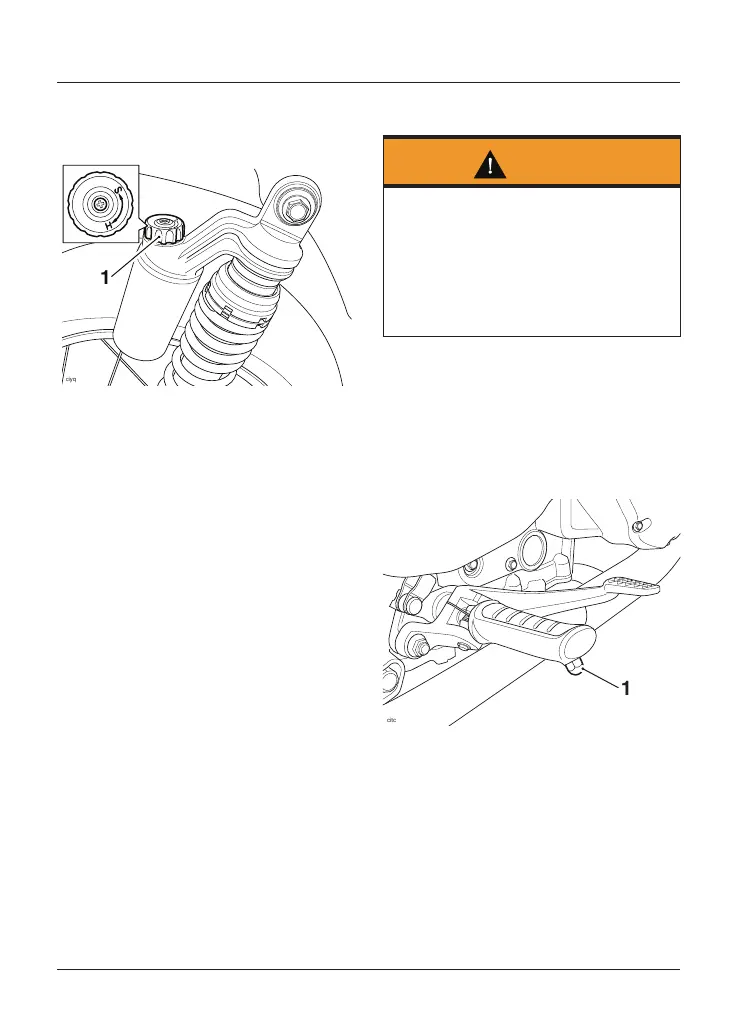

1. Rear suspension compression damping
adjuster
The compression damping adjuster is
located at the top of the rear
suspension unit.
To change the compression damping
setting:
Rotate the adjuster clockwise to
increase, or anticlockwise to decrease.
Note:
• The setting is measured as the
number of adjuster clicks
anticlockwise from the fully
clockwise position.
• The motorcycle is delivered from
the factory with the compression
damping set at the Standard
setting, as shown in the relevant
suspension chart (see page 114).
Bank Angle Indicators
Warning
Use of a motorcycle with bank angle
indicators worn beyond the maximum
limit will allow the motorcycle to be
banked to an unsafe angle.
Banking to an unsafe angle may cause
instability, loss of motorcycle control
and an accident.
Bank angle indicators are located on the
rider’s footrests.
Regularly check the bank angle
indicators for wear.
Bank angle indicators must be replaced
when they have reached the maximum
wear limit of 5 mm in length.
citc
1
1. Bank angle indicator
