Triumph Street Cup User Manual

Maintenance And Adjustment
114
Front Suspension Rebound and
Compression Damping Adjustment -
Thruxton R Only
ciyt

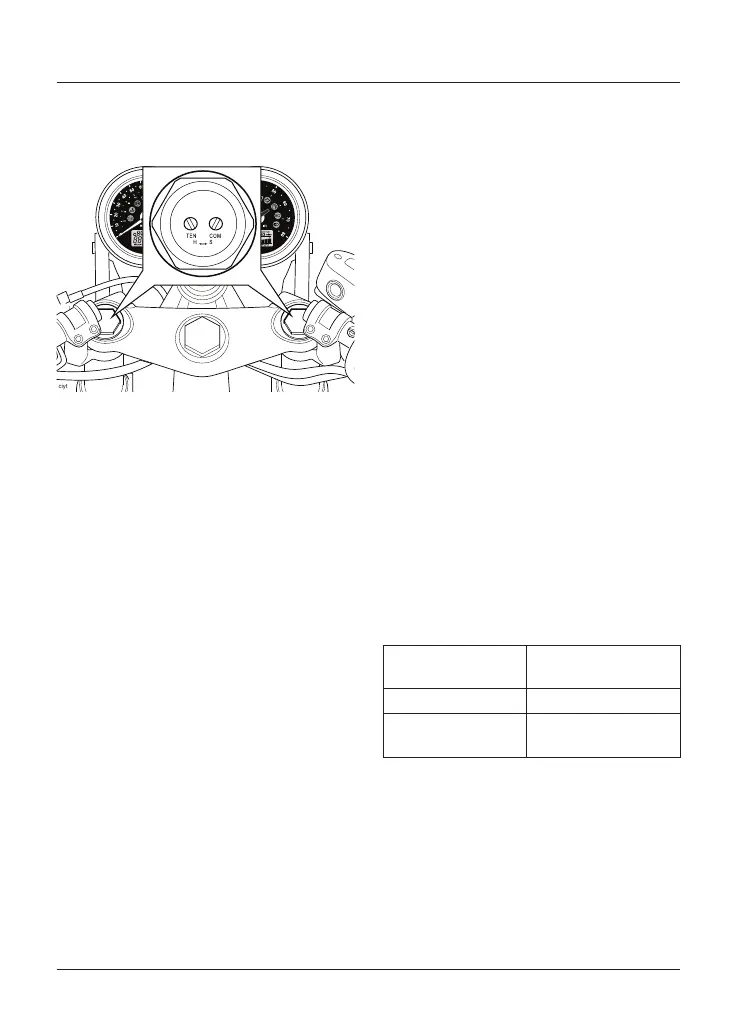

Front suspension rebound and
compression damping adjusters
The rebound and compression damping
adjusters are located at the top of each
fork.
To change the rebound damping setting:
Rotate the TEN slotted adjuster
clockwise to increase, or anticlockwise
to decrease.
To change the compression damping
setting:
Rotate the COM slotted adjuster
clockwise to increase, or anticlockwise
to decrease.
Always count the number of turns from
the fully clockwise position.
Note:
• The motorcycle is delivered from
the factory with the rebound and
compression damping adjusters set
at the Standard setting, as shown
in the relevant suspension chart
(see page 112).
Rear Suspension
Note:
• Street Twin, Street Cup,
Street Scrambler, Thruxton,
Bonneville T100 and Bonneville T120
suspension settings are spring
preload adjustable only.
• Thruxton R suspension has three
different rear adjustment settings;
spring preload, rebound damping
and compression damping.
The standard rear suspension preload
settings provide a comfortable ride and
good handling characteristics for
general, solo riding. The following tables
show suggested settings for rear
suspension under different load
conditions for all models.
Rear Suspension Settings
Street Cup, Street Twin,
Street Scrambler, Thruxton,
Bonneville T100 and Bonneville T120
Loading Condition Rear Spring Preload
Adjuster Position
Solo Riding ‑ Standard 1
Rider, Passenger and
Luggage
5

Triumph Street Cup Specifications

General

Engine Capacity	900 cc
Max Torque	80 Nm @ 3, 230 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel cradle
Rear Suspension	KYB twin shocks with adjustable preload, 120 mm rear wheel travel
Front Brakes	Single 310 mm disc, Nissin 2-piston floating caliper, ABS
Dry Weight	200 kg
Bore x Stroke	84.6 x 80 mm
Compression Ratio	10.55:1
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Front Tyre	100/90-18
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	55 PS (54 hp) @ 5, 900 rpm
Exhaust	Brushed stainless steel twin silencers
Front Suspension	41mm forks
Rear Brakes	Single 255 mm disc, Nissin 2-piston floating caliper, ABS
Seat Height	780 mm
Fuel Tank Capacity	12 L
Swingarm	Twin-sided, tubular steel
Front Wheel	18 x 2.75 in
Rear Wheel	17 x 4.25 in
Instrument Display and Functions	Analogue speedometer, fuel gauge and gear position indicator
Width (Handlebars)	740 mm
Rake	25.5°
