Triumph Street Cup User Manual

Maintenance And Adjustment
132
Headlight/Position Light Bulb
Replacement
Warning
The bulbs become hot during use.
Always allow sufficient time for the
bulbs to cool before handling. Avoid
touching the glass part of the bulb. If
the glass is touched or gets dirty, clean
with alcohol before reuse.
Caution
The use of non‑approved headlight
bulbs may result in damage to the
headlight lens.
Use a genuine Triumph supplied
headlight bulb as specified in the
Triumph Parts Catalogue.
Always have replacement headlight
bulbs installed by an authorised
Triumph dealer.

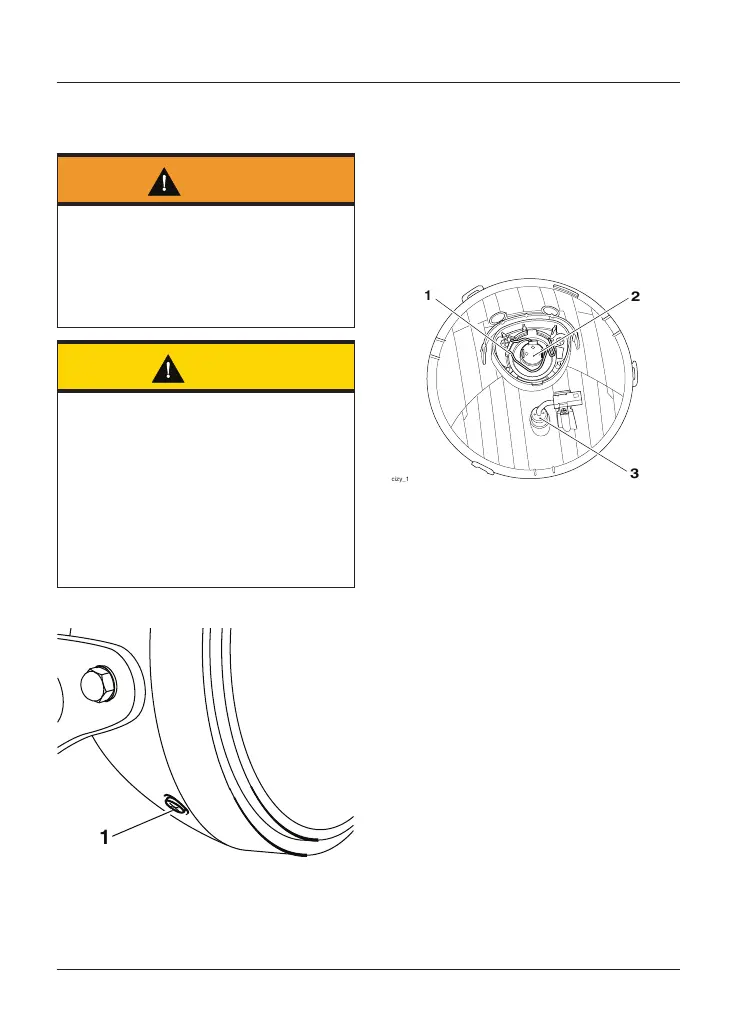

1
1. Headlight rim screws (one of two)
Disconnect the battery, negative (black)
lead first.
Remove the headlight rim screws.
Detach the headlight and rim assembly
from the headlight bowl.
Street Twin, Street Scrambler and
Bonneville T100
c
i
z
y
_
1
2
1
3
1. Wire retainer
2. Headlight bulb
3. Position bulb
While supporting the light unit,
disconnect the multipin electrical
connector from the headlight bulb and
the connector from the position light.
Remove the rubber dust cover.
Unhook the headlight bulb's wire
retainer.
The headlight bulb can now be removed.
To remove the position light bulb, detach
the bulb holder from the headlight body
and release the bulb.
Installation is the reversal of removal.

Triumph Street Cup Specifications

General

Engine Capacity	900 cc
Max Torque	80 Nm @ 3, 230 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel cradle
Rear Suspension	KYB twin shocks with adjustable preload, 120 mm rear wheel travel
Front Brakes	Single 310 mm disc, Nissin 2-piston floating caliper, ABS
Dry Weight	200 kg
Bore x Stroke	84.6 x 80 mm
Compression Ratio	10.55:1
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Front Tyre	100/90-18
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	55 PS (54 hp) @ 5, 900 rpm
Exhaust	Brushed stainless steel twin silencers
Front Suspension	41mm forks
Rear Brakes	Single 255 mm disc, Nissin 2-piston floating caliper, ABS
Seat Height	780 mm
Fuel Tank Capacity	12 L
Swingarm	Twin-sided, tubular steel
Front Wheel	18 x 2.75 in
Rear Wheel	17 x 4.25 in
Instrument Display and Functions	Analogue speedometer, fuel gauge and gear position indicator
Width (Handlebars)	740 mm
Rake	25.5°
