Triumph Street Cup User Manual

Maintenance And Adjustment
107
Rear Brake Fluid Level Inspection
and Adjustment
Warning
If there has been an appreciable drop
in the level of the fluid in either fluid
reservoir, consult your authorised
Triumph dealer for advice before riding.
Riding with depleted brake fluid levels,
or with a brake fluid leak is dangerous
and will cause reduced brake
performance potentially leading to loss
of motorcycle control and an accident.
Street Twin, Street Cup, Thruxton,
Thruxton R, Bonneville T100 and
Bonneville T120

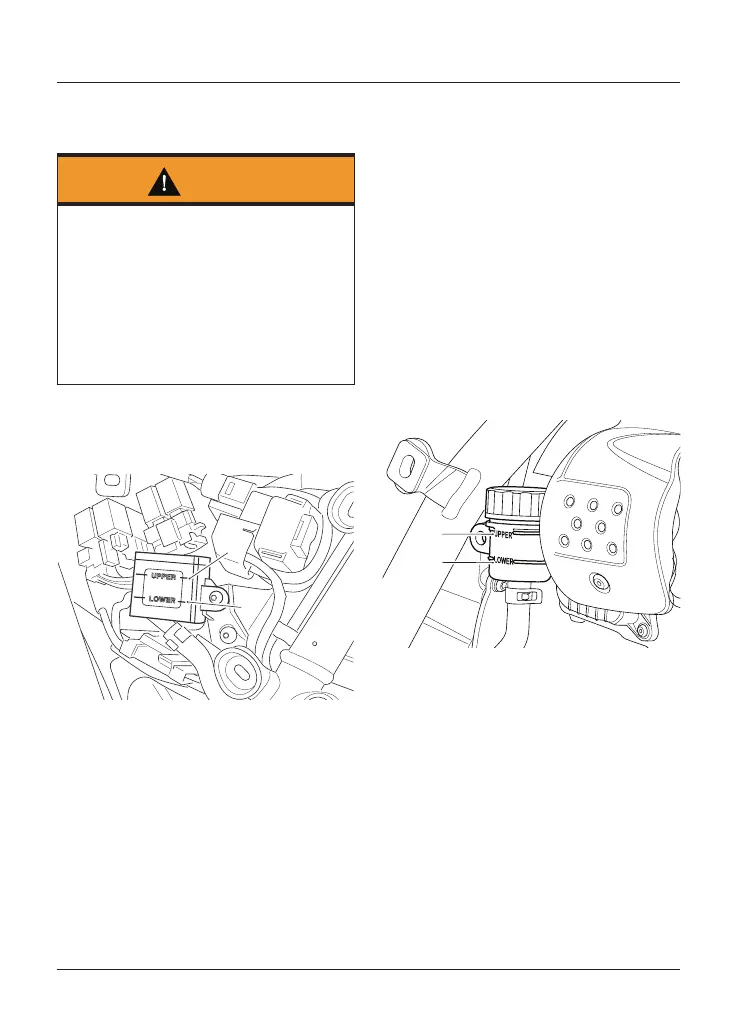

citi_1
1
2
1. Upper level line, rear brake
2. Lower level line, rear brake
To inspect the rear brake fluid level:
Remove the right hand side panel as
described on page 59.
The brake fluid level in the rear
reservoir must be kept between the
upper and lower level lines.
To adjust the rear brake fluid level:
Release the reservoir from the airbox
without detaching the connecting hose.
Release the cap screws and remove the
cap noting the position of the sealing
diaphragm.
Fill the reservoir to the upper level line
using new DOT 4 from a sealed
container.
Refit the reservoir cap making sure that
the diaphragm seal is correctly
positioned between the cap and the
reservoir body. Tighten the cap
retaining screws to 1.5 Nm.
Refit the reservoir to the airbox by
tightening the original fixing to 5 Nm.
Refit the right hand side panel.
Street Scrambler
cjyu
1
2
1. Upper level line, rear brake
2. Lower level line, rear brake
To inspect the rear brake fluid level:
Remove the right hand side panel as
described for the Street Scrambler on
page 59.
The brake fluid level in the rear
reservoir must be kept between the
upper and lower level lines.
To adjust the rear brake fluid level:
Release the reservoir from the frame
without detaching the connecting hose.
Remove the cap noting the position of
the sealing diaphragm.

Triumph Street Cup Specifications

General

Engine Capacity	900 cc
Max Torque	80 Nm @ 3, 230 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel cradle
Rear Suspension	KYB twin shocks with adjustable preload, 120 mm rear wheel travel
Front Brakes	Single 310 mm disc, Nissin 2-piston floating caliper, ABS
Dry Weight	200 kg
Bore x Stroke	84.6 x 80 mm
Compression Ratio	10.55:1
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Front Tyre	100/90-18
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	55 PS (54 hp) @ 5, 900 rpm
Exhaust	Brushed stainless steel twin silencers
Front Suspension	41mm forks
Rear Brakes	Single 255 mm disc, Nissin 2-piston floating caliper, ABS
Seat Height	780 mm
Fuel Tank Capacity	12 L
Swingarm	Twin-sided, tubular steel
Front Wheel	18 x 2.75 in
Rear Wheel	17 x 4.25 in
Instrument Display and Functions	Analogue speedometer, fuel gauge and gear position indicator
Width (Handlebars)	740 mm
Rake	25.5°
