Triumph Street Cup User Manual

Maintenance And Adjustment
126
Battery
Warning
Under some circumstances, the
battery can give off explosive gases;
keep sparks, flames and cigarettes
away. Provide adequate ventilation
when charging or using the battery in
an enclosed space.
The battery contains sulphuric acid
(battery acid). Contact with skin or
eyes may cause severe burns. Wear
protective clothing and a face shield.
If battery acid gets on your skin, flush
with water immediately.
If battery acid gets in your eyes, flush
with water for at least 15 minutes and
SEEK MEDICAL ATTENTION IMMEDIATELY.
If battery acid is swallowed, drink large
quantities of water and SEEK MEDICAL
ATTENTION IMMEDIATELY.
KEEP BATTERY ACID OUT OF THE
REACH OF CHILDREN.
Warning
The battery contains harmful
materials. Always keep children away
from the battery whether or not it is
fitted in the motorcycle.
Do not attach jump leads to the
battery, touch the battery cables
together or reverse the polarity of the
cables as any of these actions may
cause a spark which would ignite
battery gases causing a risk of
personal injury.
Battery Removal
Street Twin, Street Cup,
Street Scrambler, Bonneville T100
and Bonneville T120
citv
1
2
3
4
5
6
7
8

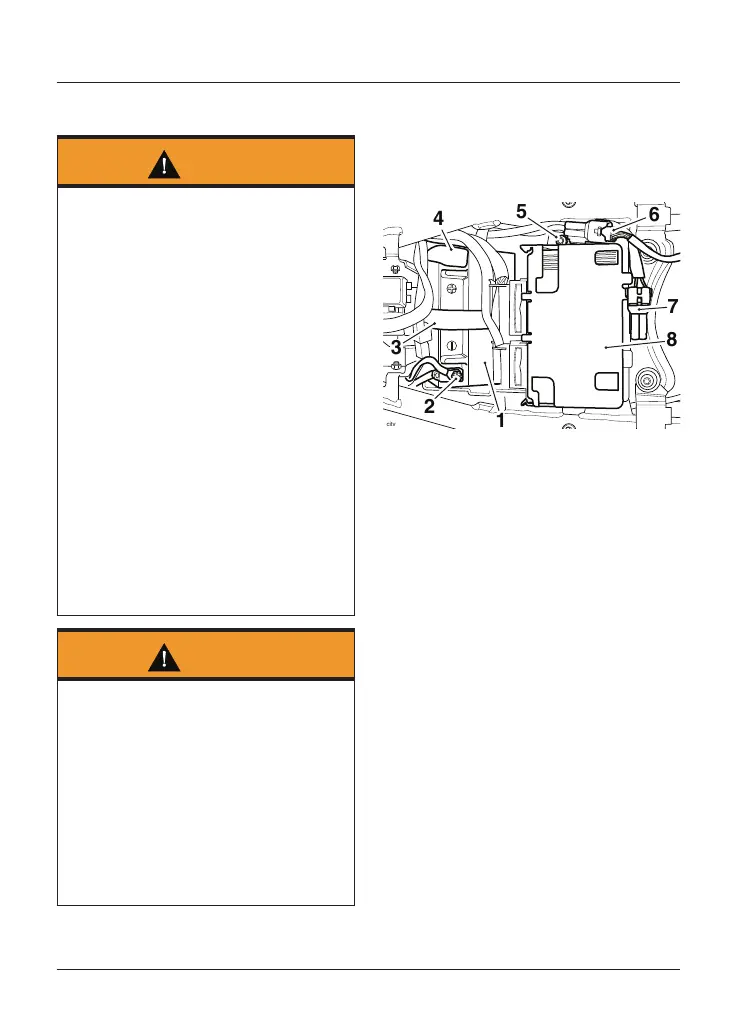

1. Battery
2. Negative (-) terminal
3. Battery strap
4. Positive (+) terminal
5. Fixing
6. Rear light cable
7. Accessory cable
8. Engine Control Module (ECM) unit
Remove the seat (see page 63).
Disconnect the battery leads, negative
(black) lead first.
Release the rear light and accessory
cables.
Release the fixing on the Engine Control
Module (ECM) unit.
Lift the ECM unit and place to the side
allowing access to the battery.
Note:
• Make sure that the ECM unit is
handled with care during the battery
removal or installation process.
Remove the battery strap.
Detach the USB port socket.
Take the battery out of the case.

Triumph Street Cup Specifications

General

Engine Capacity	900 cc
Max Torque	80 Nm @ 3, 230 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel cradle
Rear Suspension	KYB twin shocks with adjustable preload, 120 mm rear wheel travel
Front Brakes	Single 310 mm disc, Nissin 2-piston floating caliper, ABS
Dry Weight	200 kg
Bore x Stroke	84.6 x 80 mm
Compression Ratio	10.55:1
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Front Tyre	100/90-18
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	55 PS (54 hp) @ 5, 900 rpm
Exhaust	Brushed stainless steel twin silencers
Front Suspension	41mm forks
Rear Brakes	Single 255 mm disc, Nissin 2-piston floating caliper, ABS
Seat Height	780 mm
Fuel Tank Capacity	12 L
Swingarm	Twin-sided, tubular steel
Front Wheel	18 x 2.75 in
Rear Wheel	17 x 4.25 in
Instrument Display and Functions	Analogue speedometer, fuel gauge and gear position indicator
Width (Handlebars)	740 mm
Rake	25.5°
