Maintenance And Adjustment
133
Street Cup, Thruxton, Thruxton R
and Bonneville T120
cizx
2
1

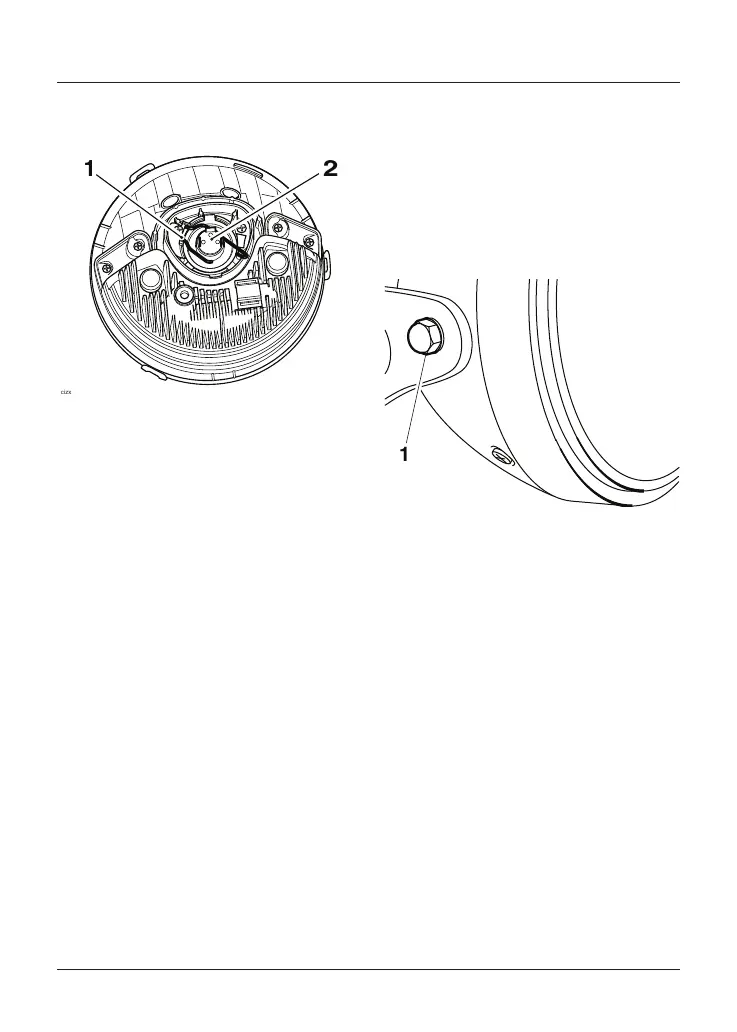

1. Wire retainer
2. Headlight bulb
While supporting the light unit,
disconnect the multipin electrical
connector from the headlight bulb.
Remove the rubber dust cover.
Unhook the headlight bulb's wire
retainer.
The headlight bulb can now be removed.
Installation is the reversal of removal.
The position bulb is situated within the
headlight assembly and is a sealed,
maintenance‑free LED unit.
Daytime Running Lights (if fitted)
The Daytime Running Lights (DRL) are
situated within the headlight assembly
and are sealed, maintenance free LED
units. If DRL are fitted then there is no
position bulb.
Headlight Adjustment
Note:
• Always make sure the handlebars
are in the straight ahead position
when checking and adjusting the
headlight beam setting.
1
1. Headlight assembly mounting bolt
Vertical adjustment of the headlight
beam is controlled by loosening the
headlight assembly mounting bolts and
altering the position of the headlight
assembly.
Retighten the fixings after adjustment
to 10 Nm.

Triumph Street Cup Specifications

General

Engine Capacity	900 cc
Max Torque	80 Nm @ 3, 230 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel cradle
Rear Suspension	KYB twin shocks with adjustable preload, 120 mm rear wheel travel
Front Brakes	Single 310 mm disc, Nissin 2-piston floating caliper, ABS
Dry Weight	200 kg
Bore x Stroke	84.6 x 80 mm
Compression Ratio	10.55:1
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Front Tyre	100/90-18
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	55 PS (54 hp) @ 5, 900 rpm
Exhaust	Brushed stainless steel twin silencers
Front Suspension	41mm forks
Rear Brakes	Single 255 mm disc, Nissin 2-piston floating caliper, ABS
Seat Height	780 mm
Fuel Tank Capacity	12 L
Swingarm	Twin-sided, tubular steel
Front Wheel	18 x 2.75 in
Rear Wheel	17 x 4.25 in
Instrument Display and Functions	Analogue speedometer, fuel gauge and gear position indicator
Width (Handlebars)	740 mm
Rake	25.5°
