Triumph Street Cup User Manual

General Information
59
Side Panels
Street Twin, Street Cup, Thruxton,
Thruxton R, Bonneville T100 and
Bonneville T120
citf
1
2
2

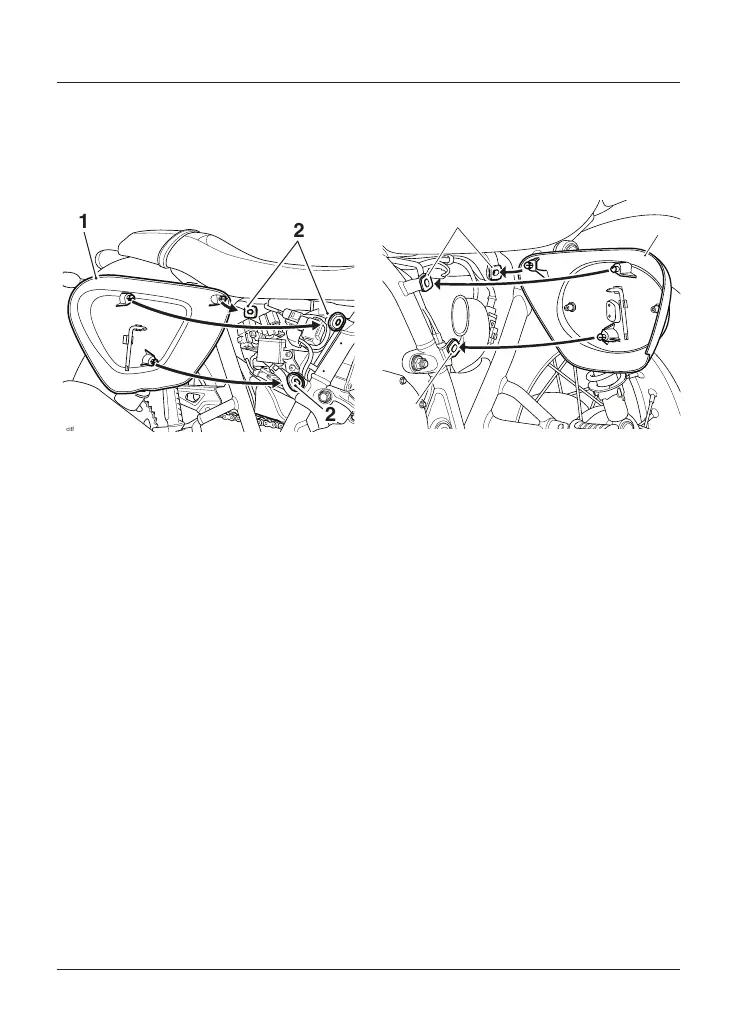

1. Side panel (right hand shown)
2. Grommets
The right side panel can be removed to
gain access to the adjustment tool and
the rear brake fluid reservoir.
To remove either side panel:
Grasp the panel firmly and pull the
panel away from the motorcycle until it
is free from the three retaining
grommets (leaving the grommets in
place).
To refit either side panel:
Position the three locating dowels to the
grommets, then press firmly to secure
the panel.
Finally, grasp the panel and make sure
that it is fully retained.
Street Scrambler
Left Hand Side Panel
The left hand side panel can be removed
to gain access to the adjustment tool.
2
1
2
1. Side panel (left hand shown)
2. Grommets
To remove the left hand side panel:
Grasp the panel firmly and pull the
panel away from the motorcycle until it
is free from the three retaining
grommets (leaving the grommets in
place).
To refit the left hand side panel:
Position the three locating dowels to the
grommets, then press firmly to secure
the panel.
Finally, grasp the panel and make sure
that it is fully retained.

Triumph Street Cup Specifications

General

Engine Capacity	900 cc
Max Torque	80 Nm @ 3, 230 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel cradle
Rear Suspension	KYB twin shocks with adjustable preload, 120 mm rear wheel travel
Front Brakes	Single 310 mm disc, Nissin 2-piston floating caliper, ABS
Dry Weight	200 kg
Bore x Stroke	84.6 x 80 mm
Compression Ratio	10.55:1
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Front Tyre	100/90-18
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	55 PS (54 hp) @ 5, 900 rpm
Exhaust	Brushed stainless steel twin silencers
Front Suspension	41mm forks
Rear Brakes	Single 255 mm disc, Nissin 2-piston floating caliper, ABS
Seat Height	780 mm
Fuel Tank Capacity	12 L
Swingarm	Twin-sided, tubular steel
Front Wheel	18 x 2.75 in
Rear Wheel	17 x 4.25 in
Instrument Display and Functions	Analogue speedometer, fuel gauge and gear position indicator
Width (Handlebars)	740 mm
Rake	25.5°
