Triumph Street Cup User Manual

Maintenance And Adjustment
134
Rear Light
The rear light unit is a sealed,
maintenance‑free LED unit.
Direction Indicator Lights
Street Twin and Street Scrambler
Bulb Replacement
1
2
3

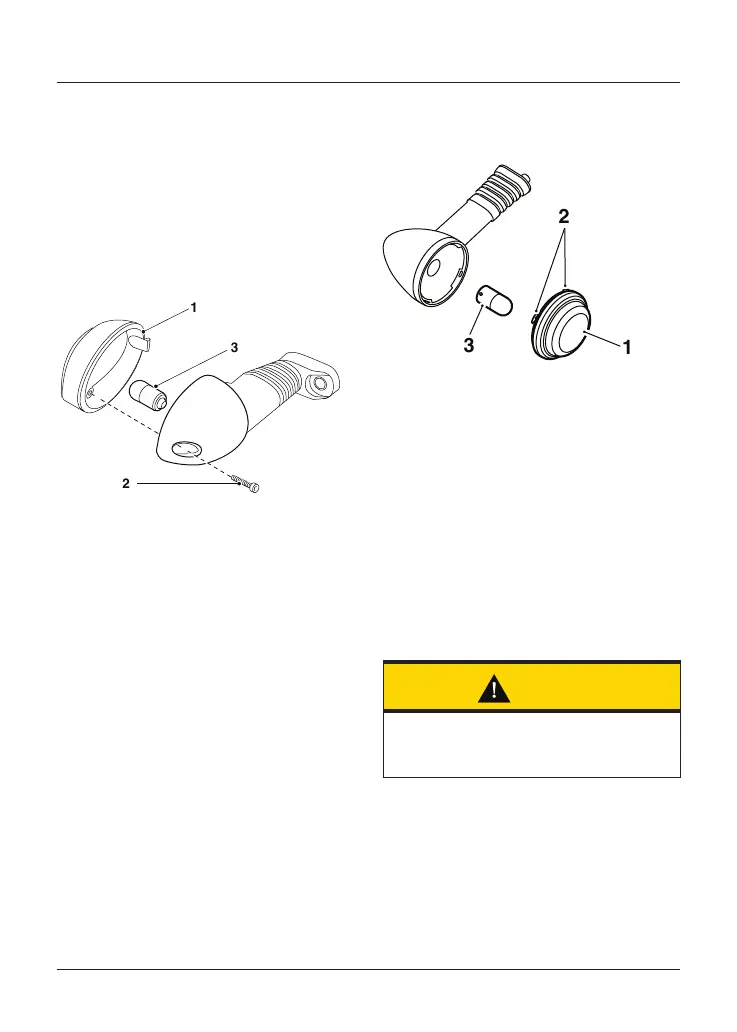

1. Lens
2. Indicator lens screw
3. Bulb
The lens on each indicator light is held
in place by a screw located in the body
of the light unit.
To replace the direction indicator light
bulb:
Release the screw and remove the lens
to gain access to the bulb for
replacement.
Carefully remove the bulb and replace it
with a new bulb.
Installation is the reverse of the removal
procedure.
Street Cup, Thruxton, Thruxton R,
Bonneville T100 and Bonneville T120
Bulb Replacement
1
2
3
1. Lens
2. Locating tangs
3. Bulb
To replace the direction indicator light
bulb:
Carefully twist the lens anticlockwise
and remove from the indicator to gain
access to the bulb.
Gently press the bulb inwards and twist
anticlockwise. Replace with a new bulb.
Installation for the bulb is the reverse of
the removal procedure.
Caution
When installing the lens, make sure
that the locating tangs are correctly
aligned to the indicator body.
To install the indicator lens, align the
locating tangs with the indicator body
and twist anticlockwise to secure.

Triumph Street Cup Specifications

General

Engine Capacity	900 cc
Max Torque	80 Nm @ 3, 230 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel cradle
Rear Suspension	KYB twin shocks with adjustable preload, 120 mm rear wheel travel
Front Brakes	Single 310 mm disc, Nissin 2-piston floating caliper, ABS
Dry Weight	200 kg
Bore x Stroke	84.6 x 80 mm
Compression Ratio	10.55:1
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Front Tyre	100/90-18
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	55 PS (54 hp) @ 5, 900 rpm
Exhaust	Brushed stainless steel twin silencers
Front Suspension	41mm forks
Rear Brakes	Single 255 mm disc, Nissin 2-piston floating caliper, ABS
Seat Height	780 mm
Fuel Tank Capacity	12 L
Swingarm	Twin-sided, tubular steel
Front Wheel	18 x 2.75 in
Rear Wheel	17 x 4.25 in
Instrument Display and Functions	Analogue speedometer, fuel gauge and gear position indicator
Width (Handlebars)	740 mm
Rake	25.5°
