Xerox 4112 System Administration Guide

Using CentreWare Internet Services
Xerox 4112/4127 Copier/Printer 3-19
System Administration Guide

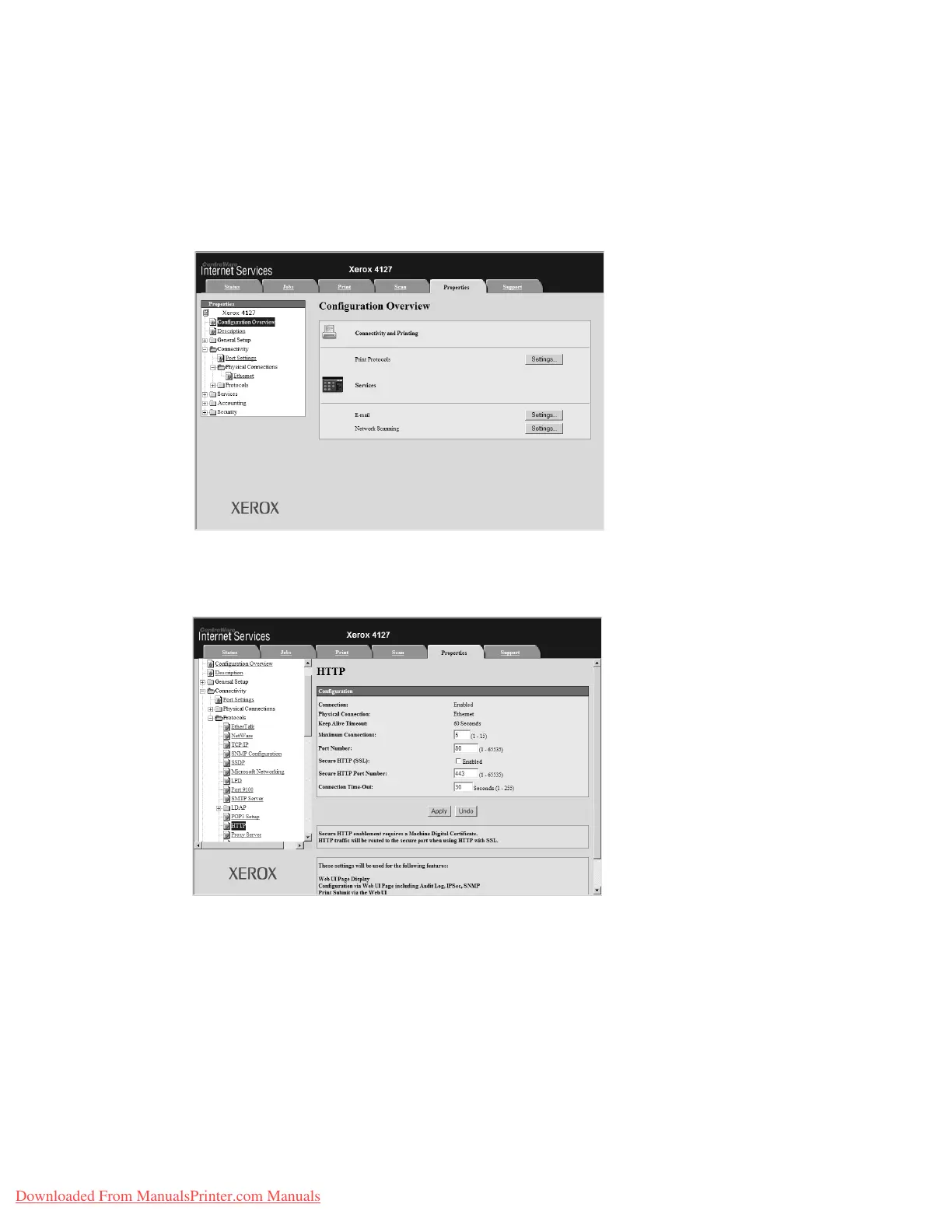

HTTP
This section describes the settings for the HTTP port.
1. Connect to CentreWare (See Chapter 3 Connect to CentreWare Internet Services from a
computer on page 3-2).
2. Click the Properties tab.
3. Click + on the left of Connectivity and + on the left of Protocols to display the items in the
folder.
4. Click HTTP.
5. Set the Port Number.
6. Set the Maximum Session Number.
7. Set the Connection Time-Out.
8. Reflect the values as the machine’s setting values.
a. Click the Apply button. A screen to enter the user name and password will be displayed.
b. Enter the System Administrator UserID and password into User Name and Password,
and then click OK.
Note
The default User ID value is 11111 and password is x-admin.
