Service Parts Disassembly 8-13
Left and Right Links (PL 1.1.23)
Note
To disengage the links from the printer without removing the link, release
the end of the link from the retaining clip and leave the spring connected to
the printer.

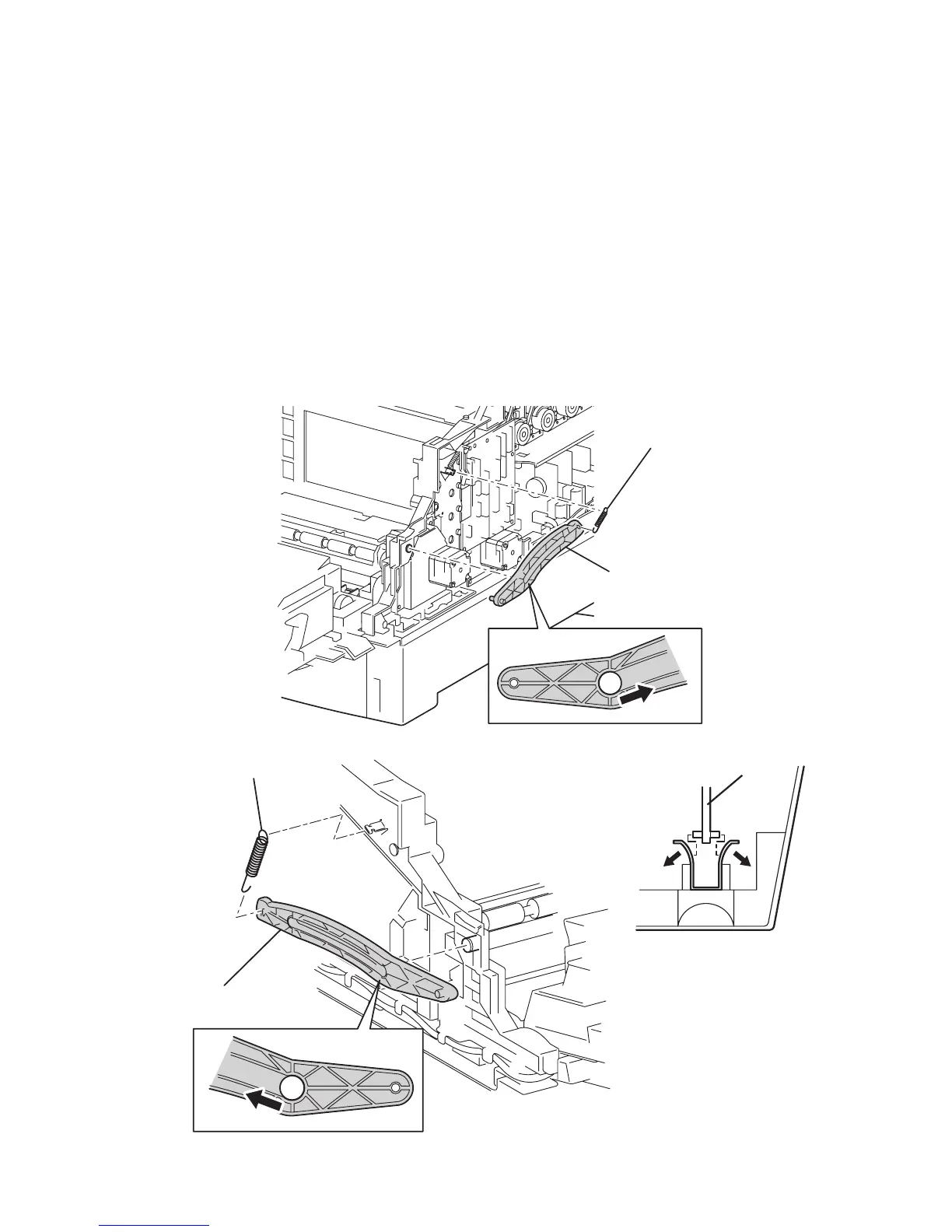

1. Remove the Right and Left Side Covers (page 8-11).
2. Remove the upper end (eye) of the spring (item #1) from the printer.
3. Open Door A.
4. With a flat blade screwdriver, spread apart both sides of the metal retaining clip
holding the Link (item #2) to the Front Cover Assembly and remove the Link and
Spring together.
6250-125
1
2
6250-126
1
2
6250-506
2
To Next Page
