Xerox PHASER 6250 Service Manual

Service Parts Disassembly 8-25
High-Capacity Feeder Harness (PL3.2.3)
1. Remove the Printer Chassis from the Feeder Assembly (page 8-20).
2. Carefully free the HCF Harness (item #1) from the wire guides in the Right
Housing.
3. Release the 2 tabs securing the harness connector to the Right Housing.
4. Pull the HCF Harness down from the Right Housing to remove.

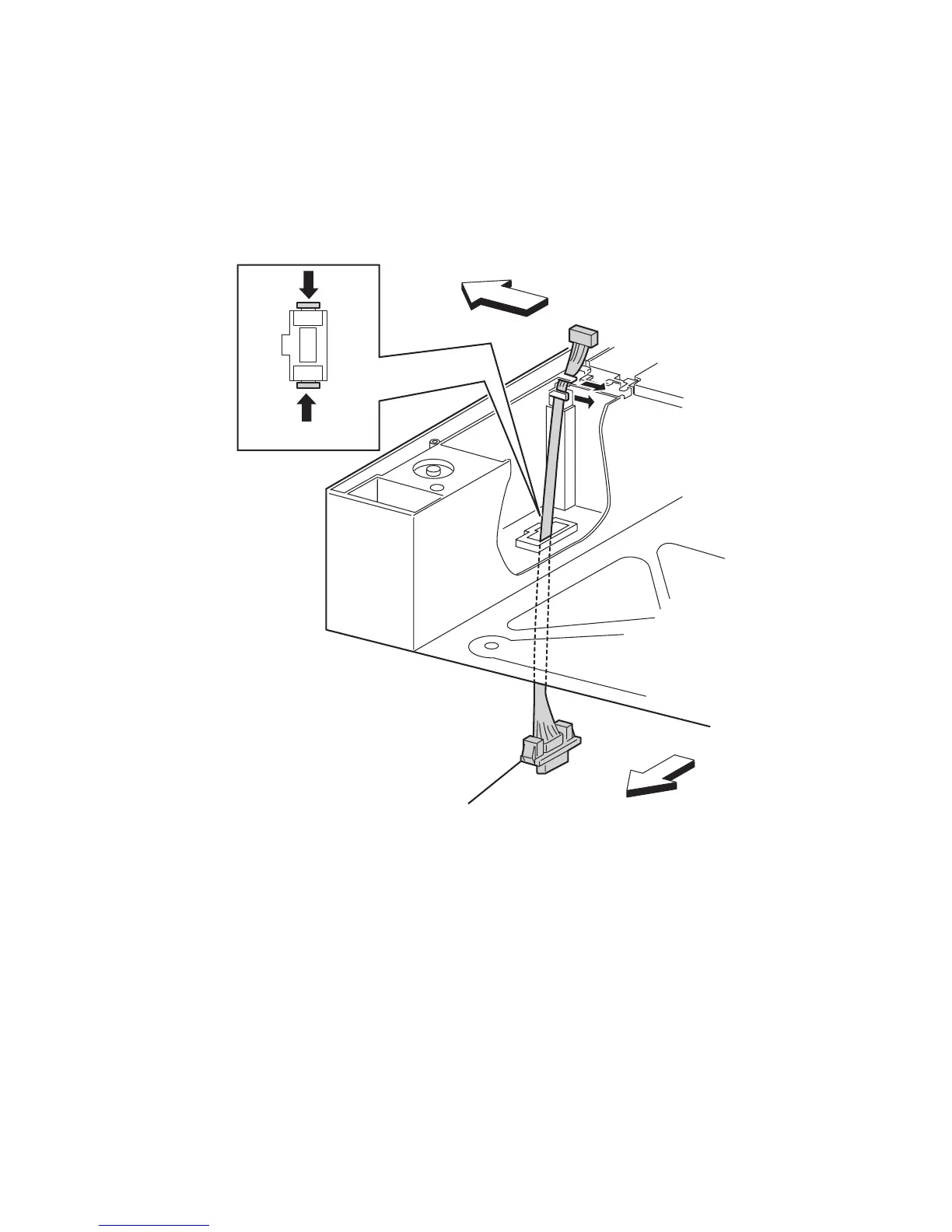

6250-143
TOP VIEW
1
REAR
RIGHT
