Xerox PHASER 6250 Service Manual

Service Parts Disassembly 8-111
Optional High Capacity Feeder Disassembly

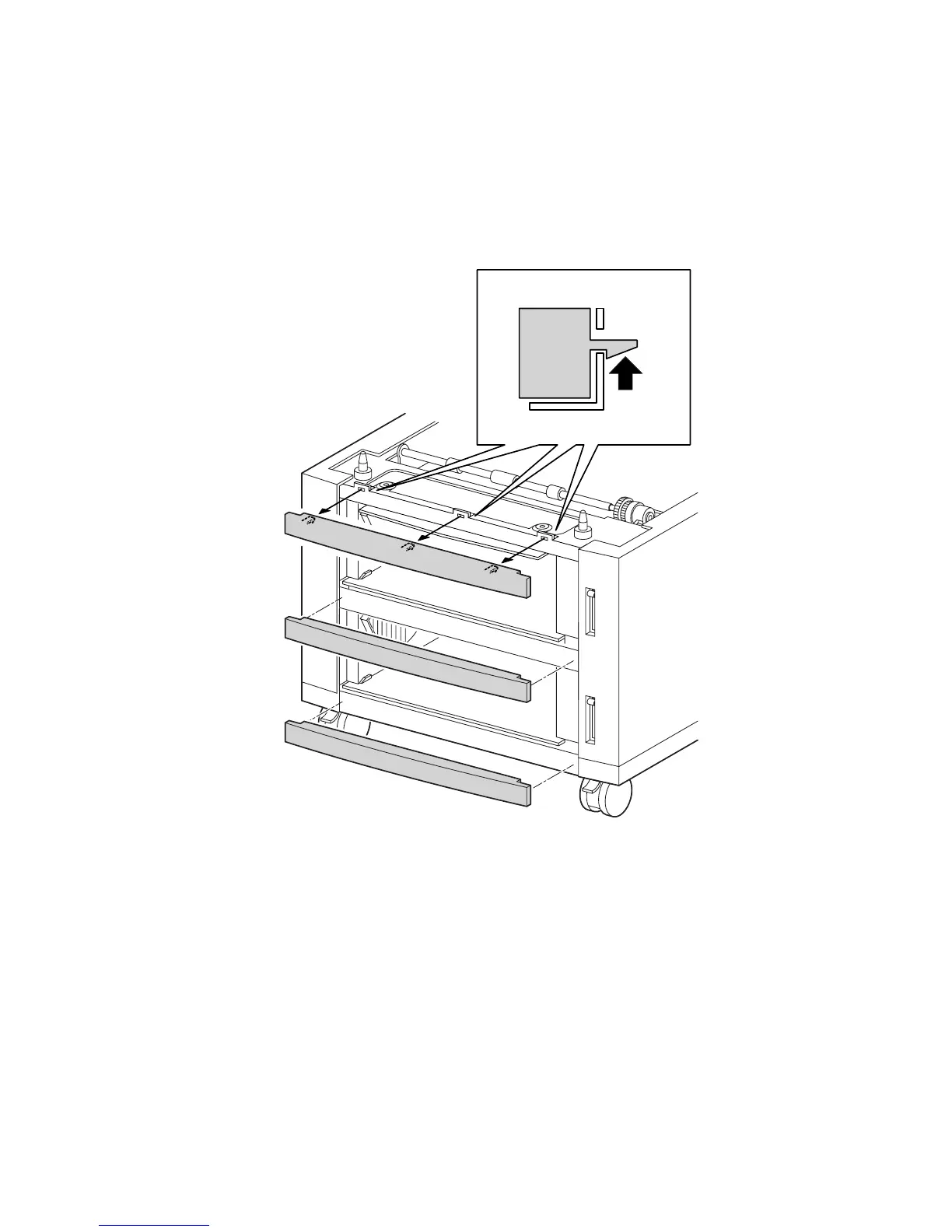

Cover Front (PL14.2.4)
1. Remove Paper Trays 3 and 4.
2. Carefully pry up on the 3 tabs securing the Cover Front to the frame and remove
the Cover Front.
Reassembly
Note
When replacing the Cover Front note the orientation. Align the edge with the
slit in the Feeder Frame.
6250-267
