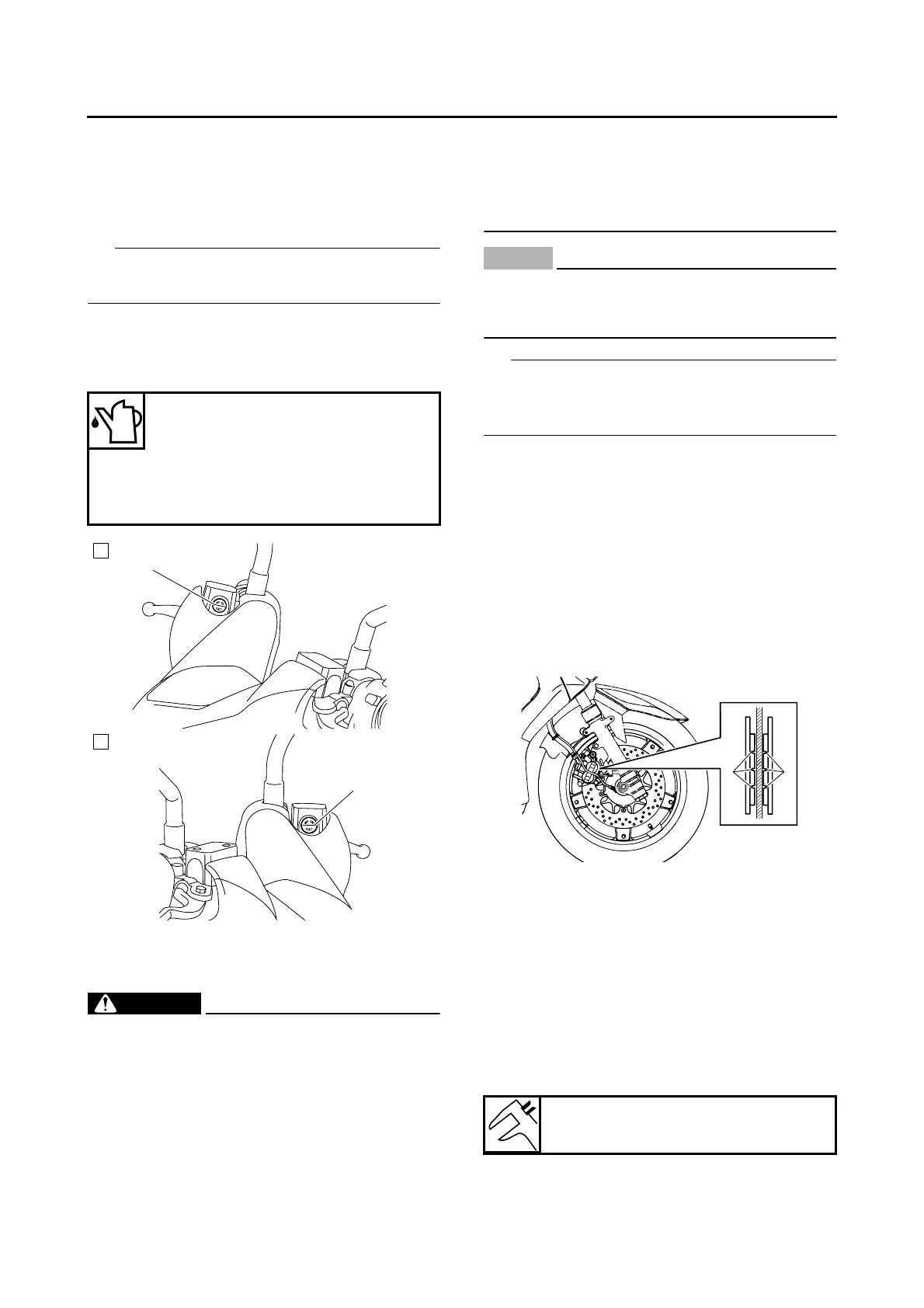

CHECKING THE BRAKE FLUID LEVEL
1. Stand the vehicle on a level surface.
IP
• Place the vehicle on the centerstand.
• Make sure the vehicle is upright.
2. Check:
• Brake fluid level
Below the minimum level mark “a” → Add the
recommended brake fluid to the proper level.
WARNING
EWA13540
• Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
• Refill with the same type of brake fluid that
is already in the system. Mixing brake fluids
may result in a harmful chemical reaction,
leading to poor brake performance.
• When refilling, be careful that water does
not enter the brake master cylinder reser-
voir. Water will significantly lower the boil-
ing point of the brake fluid and could cause
vapor lock.
NOTICE
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
IP
In order to ensure a correct reading of the brake
fluid level, make sure the top of the brake fluid
reservoir is horizontal.
EAS21250
CHECKING THE FRONT BRAKE PADS
The following procedure applies to all of the
brake pads.
1. Operate the brake.
2. Check:
• Front brake pad
Wear indicator grooves “a” have almost dis-
appeared → Replace the brake pads as a
set.
Refer to “FRONT BRAKE” on page 4-17.
EAS37P1130
CHECKING THE REAR BRAKE PADS
(YP125R)
The following procedure applies to all of the
brake pads.
1. Operate the brake.
2. Check:
• Rear brake pad
Wear limit “a” reached → Replace the brake
pads as a set.
Refer to “REAR BRAKE” on page 4-29.
Front brake
Recommended fluid
DOT 4
Rear brake
Recommended fluid
DOT 4
A. Front brake
B. Rear brake
A
a
B
a
Limit
0.8 mm (0.03 in)
aa
