Yamaha YP125R Service Manual

V-BELT AUTOMATIC TRANSMISSION (YP125R)
5-30
EAS37P1137
V-BELT AUTOMATIC TRANSMISSION (YP125R)

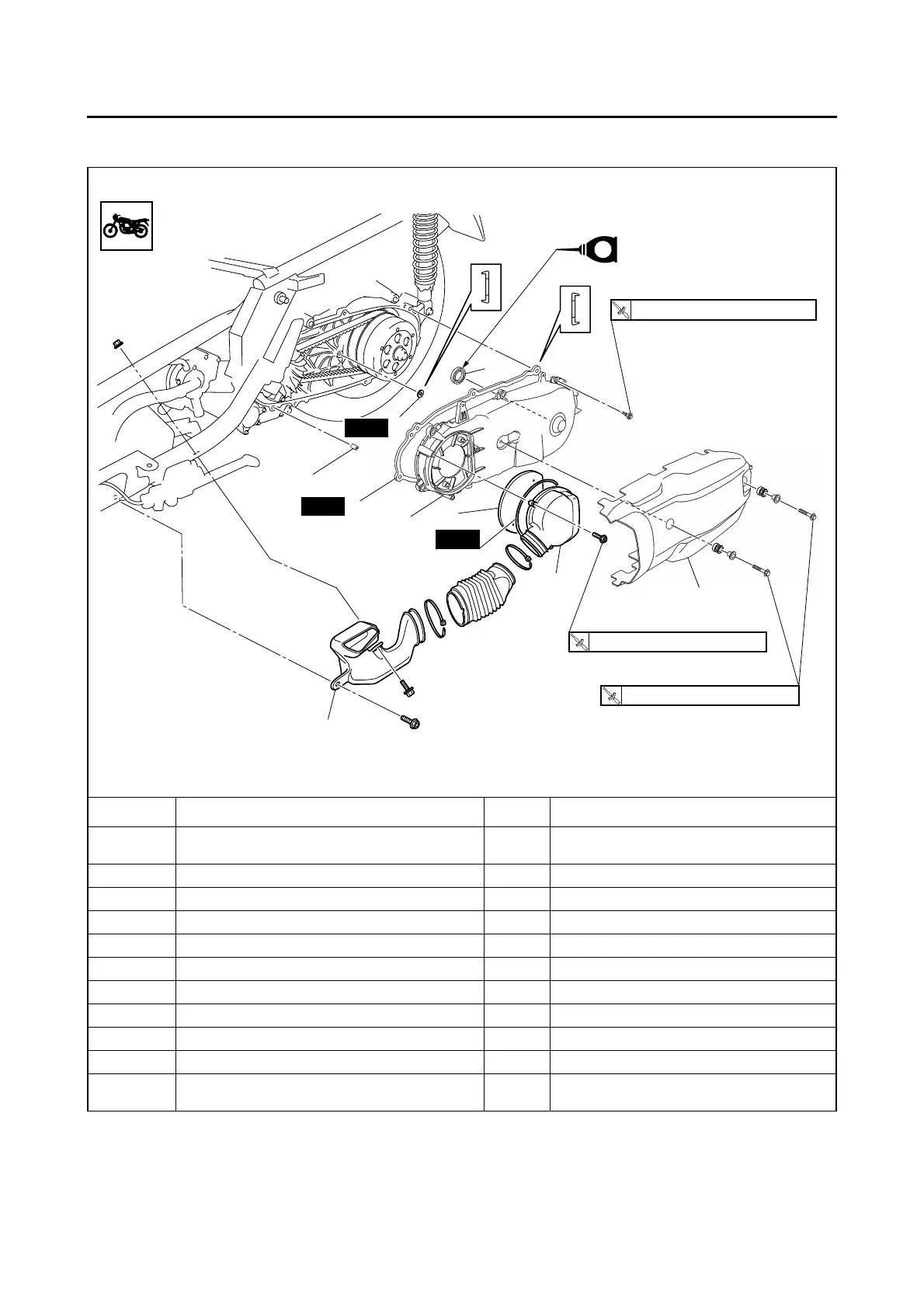

Removing the V-belt case cover
Order Job/Parts to remove Q’ty Remarks
Bottom cover/Air filter case
Refer to “GENERAL CHASSIS” on page
4-1.
1 V-belt case cover 1
2 V-belt case air duct joint 1
3 V-belt case air duct 1
4 V-belt case air filter element 1
5 V-belt case 1
6 V-belt case gasket 1 1
7 V-belt case gasket 2 1
8 Dowel pin 1
9 Bearing 1
For installation, reverse the removal proce-
dure.
New
New
6
5
7
New
9
2
3
(3)
1
(8)
4
E
8
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.

Yamaha YP125R Specifications

General

Engine Type	Liquid-cooled, 4-stroke, SOHC, 4-valve
Bore x Stroke	52.4 mm x 57.9 mm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Front Suspension	Telescopic fork
Rear Suspension	Unit Swing
Front Brake	Hydraulic single disc, Ø267 mm
Starter System	Electric
Rear Tyre	140/70-14M/C 62P (Tubeless)
