CYLINDER AND PISTON (YP250R)
5-85
EAS24380

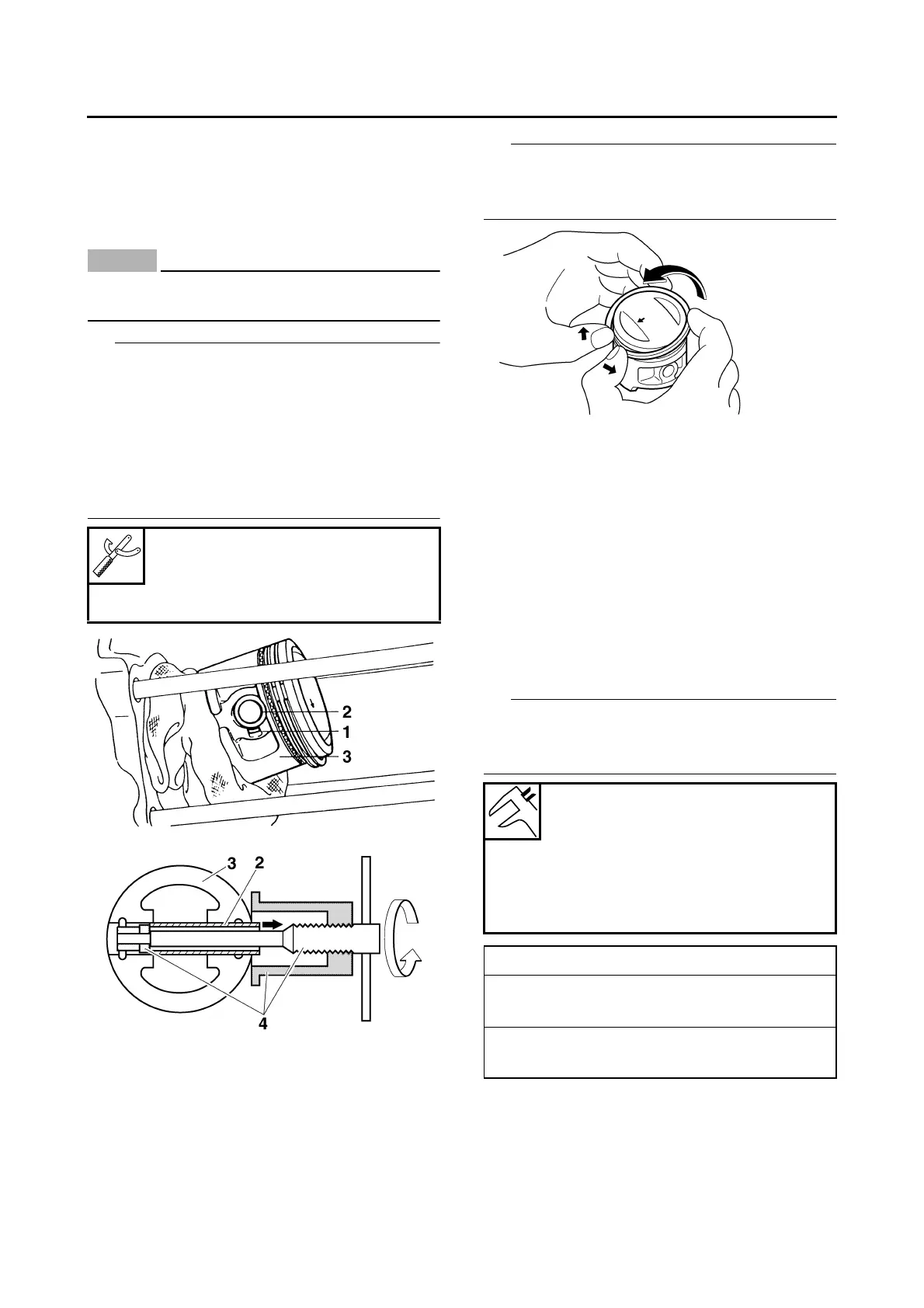

REMOVING THE PISTON
1. Remove:
• Piston pin clips “1”
• Piston pin “2”
• Piston “3”
NOTICE
ECA13810
Do not use a hammer to drive the piston pin
out.
IP
• Before removing the piston pin clips, cover the
crankcase opening with a clean rag to prevent
them from falling into the crankcase.
• Before removing the piston pin, deburr the pis-
ton pin clip groove and the piston pin bore ar-
ea. If both areas are deburred and the piston
pin is still difficult to remove, remove it with the
piston pin puller set “4”.
2. Remove:
• Top ring
• 2nd ring
• Oil ring
IP
When removing a piston ring, open the end gap
with your fingers and lift the other side of the ring
over the piston crown.
EAS24390
CHECKING THE CYLINDER AND PISTON
1. Check:
• Piston wall
• Cylinder wall
Vertical scratches → Rebore or replace the
cylinder, and replace the piston and piston
rings as a set.
2. Measure:
• Piston-to-cylinder clearance
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Measure cylinder bore “C” with the cylinder
bore gauge.
IP
Measure cylinder bore “C” by taking side-to-side
and front-to-back measurements of the cylinder.
Then, find the average of the measurements.
Piston pin puller set
90890-01304
Piston pin puller
YU-01304
Bore
69.000–69.005 mm (2.7165–
2.7167 in)
Taper limit
0.030 mm (0.0012 in)
Out of round limit
0.030 mm (0.0012 in)
“C” = maximum of D
1
–D
2
“T” = maximum of D
1
or D
2
- maximum of D
5
or D
6
“R” = maximum of D
1
, D
3
or D
5
- minimum of
D
2
, D
4
or D
6
To Next Page
