Yamaha YP125R Service Manual

V-BELT AUTOMATIC TRANSMISSION (YP250R)
5-97
EAS24740

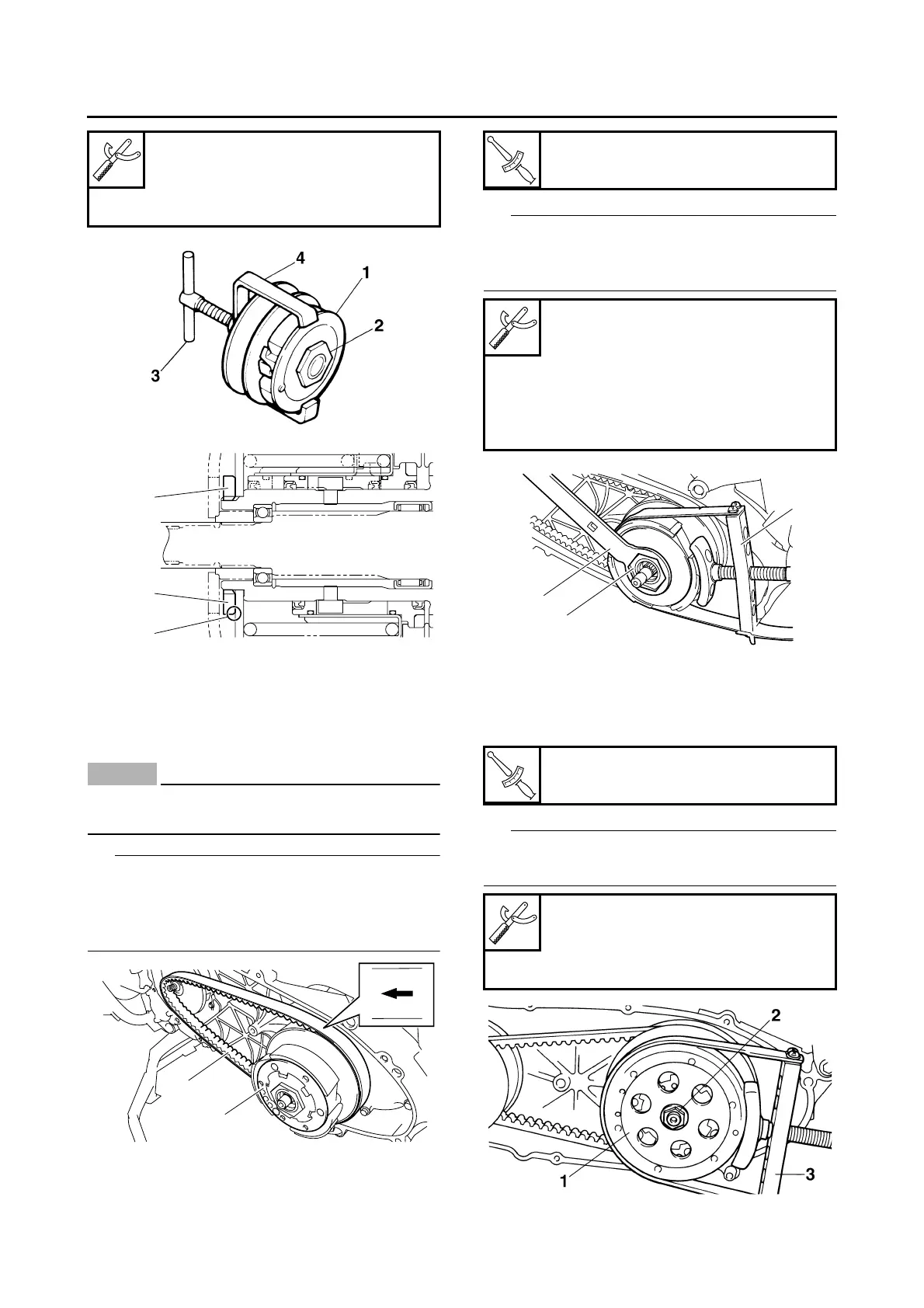

INSTALLING THE V-BELT
1. Install:
• V-belt “1”
• Secondary sheave assembly “2”
NOTICE
ECA37P1011
Do not allow grease to come in contact with
the V-belt or secondary sheave assembly.
T
IP
• Install the V-belt with the printed arrow mark on
the V-belt facing in the direction shown in the il-
lustration.
• Install the V-belt onto the primary sheave side.
2. Tighten:
• Clutch carrier nut “1”
T
IP
While holding the clutch carrier with the sheave
holder “2”, tighten the clutch carrier nut with the
locknut wrench “3”.
3. Install:
• Clutch housing “1”
• Spacer
• Secondary sheave nut “2”
T
IP
While holding the clutch housing with the sheave
holder “3”, tighten the secondary sheave nut.
Clutch spring holder
90890-01337
Clutch spring holder arm
90890-01464
2
2
a
1
2
T
R
.
.
Clutch carrier nut
90 Nm (9.0 m·kgf, 65 ft·lbf)
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A
Locknut wrench
90890-01348
YM-01348
T
R
.
.
Secondary sheave nut
60 Nm (6.0 m·kgf, 43 ft·lbf)
Sheave holder
90890-01701
Primary clutch holder
YS-01880-A
1
3
2

Yamaha YP125R Specifications

General

Engine Type	Liquid-cooled, 4-stroke, SOHC, 4-valve
Bore x Stroke	52.4 mm x 57.9 mm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Front Suspension	Telescopic fork
Rear Suspension	Unit Swing
Front Brake	Hydraulic single disc, Ø267 mm
Starter System	Electric
Rear Tyre	140/70-14M/C 62P (Tubeless)
