V-BELT AUTOMATIC TRANSMISSION (YP250R)
5-89
EAS24610
V-BELT AUTOMATIC TRANSMISSION (YP250R)

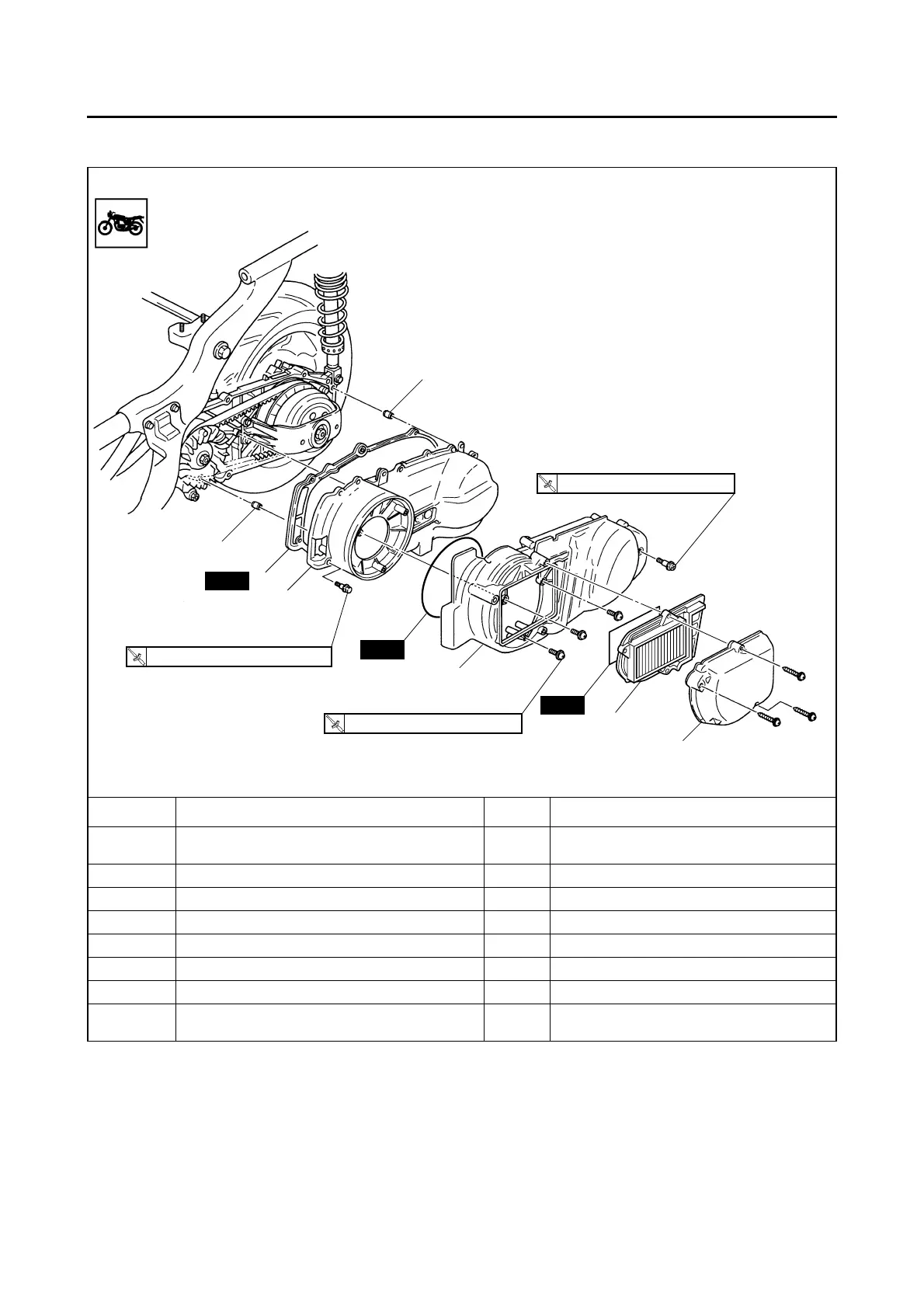

Removing the V-belt case cover
Order Job/Parts to remove Q’ty Remarks
Air filter case
Refer to “GENERAL CHASSIS” on page
4-1.
1 V-belt case air filter cover 1
2 V-belt case air filter element 1
3 V-belt case cover 1
4 V-belt case 1
5 V-belt case gasket 1
6 Dowel pin 2
For installation, reverse the removal proce-
dure.
3
4
(11)
5
6
6
1
New
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
New
New
2
