GENERAL CHASSIS
4-2
EAS37P1079

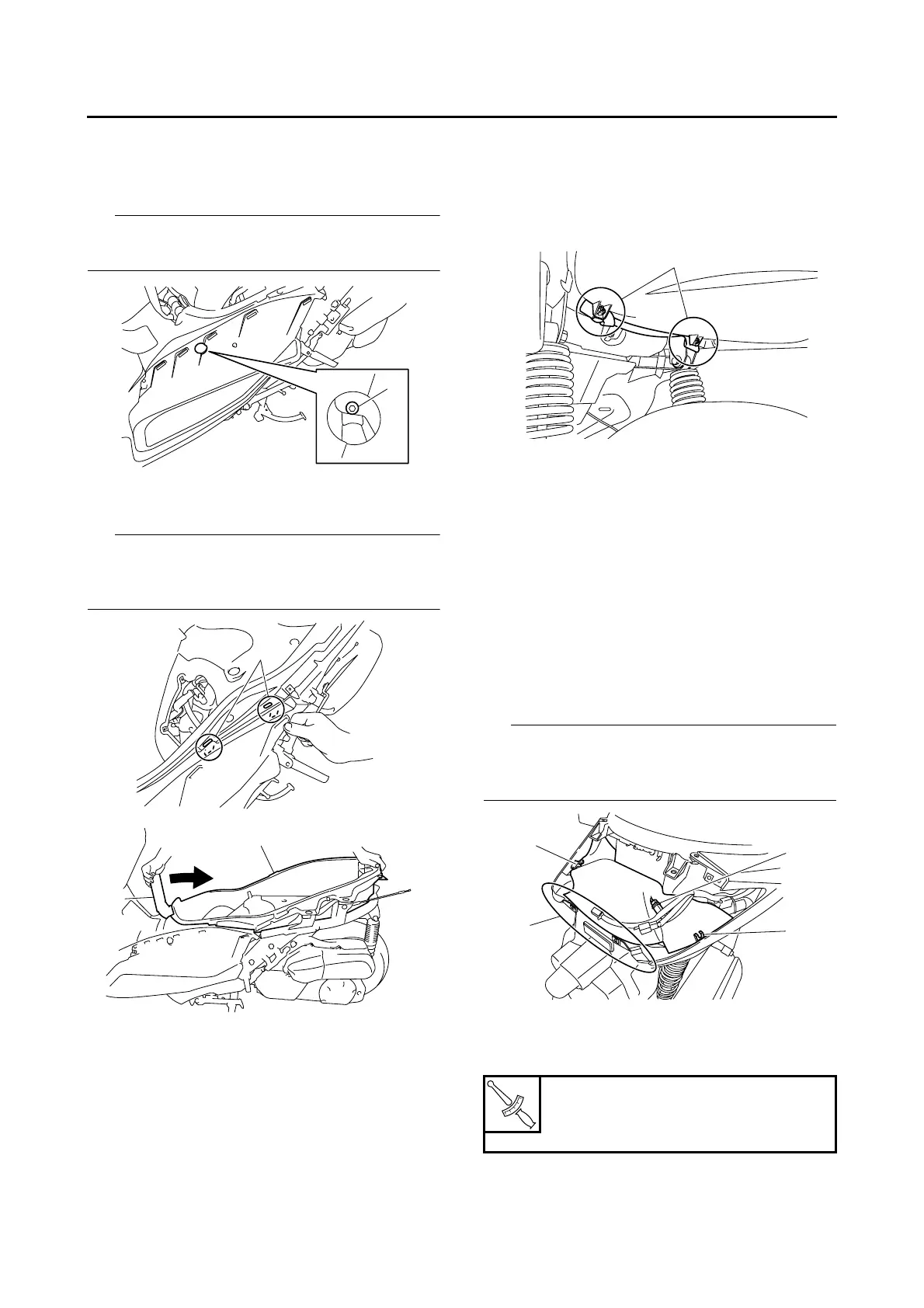

REMOVING THE STORAGE BOX
1. Remove:
• Storage box bolts “1”
IP
Be sure not to let the storage box bolts fall inside
the vehicle when removing them.
2. Remove:
• Storage box “1”
IP
• Unhook the tabs “a” from the storage box.
• Remove the storage box by moving the seat
hinge “2” in the direction of the arrow shown.
EAS37P1138
INSTALLING THE SEAT
1. Install:
• Safety protector
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Fold the tabs on the safety protector so that
the holes in each tab are aligned, and then
fasten the tabs to the storage box with the
quick fastener screws at the locations “a”
shown in the illustration.
b. Install the storage box, seat lock cable, water
guard, and mudguard to the vehicle.
c. Pass the license plate light coupler (license
plate light side) through the hole in the safety
protector at the location “b” shown in the illus-
tration, and then connect the coupler.
d. Install the rear panels to the vehicle.
e. Align the holes in the safety protector with the
projections on the water guard at the loca-
tions “c” shown in the illustration, and then
fasten the safety protector with the clips at the
locations where the holes are aligned with the
projections.
IP
Make sure that the edge of the safety protector
is positioned to the inside of the rear panels at
the location “d” shown in the illustration.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
2. Install:
• Mudguard
1
a
1
2
T
R
.
.
Mudguard bolt
11 Nm (1.1 m·kgf, 8.0 ft·lbf)
LOCTITE®
a
b
c
c
d
