REAR WHEEL
4-16
EAS28760
REMOVING THE REAR WHEEL
1. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
IP
Place the vehicle on the centerstand so that the
rear wheel is elevated. Also, place a suitable
stand under the engine.
EAS22090
CHECKING THE REAR WHEEL
1. Check:
• Tire
• Rear wheel
Damage/wear → Replace.
Refer to “CHECKING THE TIRES” on page
3-39 and “CHECKING THE WHEELS” on
page 3-41.
2. Measure:
• Radial wheel runout
• Lateral wheel runout
Refer to “CHECKING THE FRONT WHEEL”
on page 4-11.
EAS22150
ADJUSTING THE REAR WHEEL STATIC
BALANCE
IP
• After replacing the tire, wheel or both, the rear
wheel static balance should be adjusted.
• Adjust the rear wheel static balance with the
brake disc installed.
1. Adjust:
• Rear wheel static balance
Refer to “ADJUSTING THE FRONT WHEEL
STATIC BALANCE” on page 4-12.
EAS28770
INSTALLING THE REAR WHEEL (REAR
BRAKE DISC)

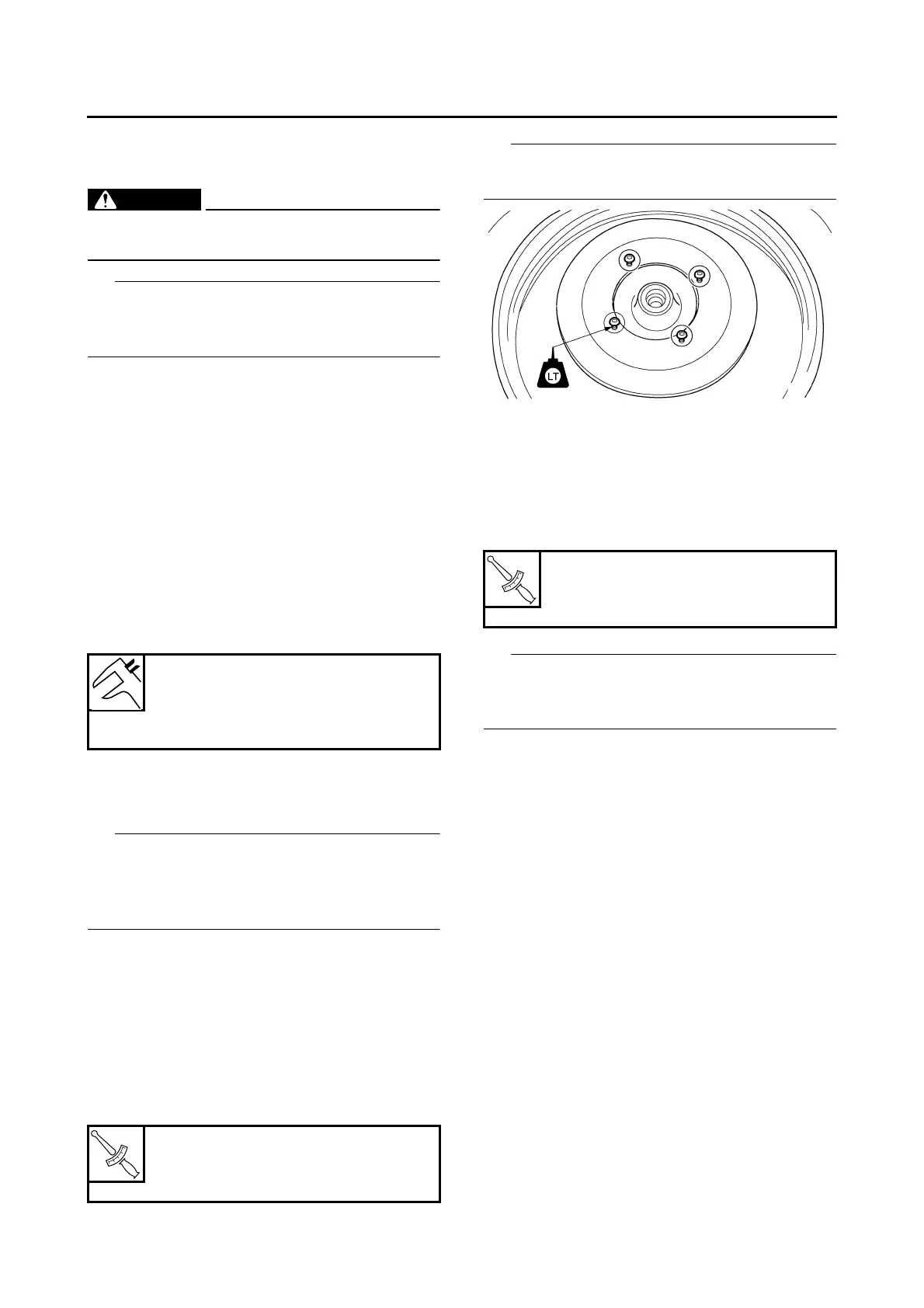

1. Install:
• Rear brake disc
IP
Tighten the brake disc bolts in stages and in a
crisscross pattern.
2. Check:
• Rear brake disc
Refer to “CHECKING THE REAR BRAKE
DISC” on page 4-37.
3. Install:
• Rear fender
• Air filter case mounting bolts
IP
Place the rear fender between the air filter case
and the crankcase, and then install the air filter
case mounting bolts.
Radial wheel runout limit
1.0 mm (0.04 in)
Lateral wheel runout limit
0.5 mm (0.02 in)
T
R
.
.
Rear brake disc bolt
23 Nm (2.3 m·kgf, 17 ft·lbf)
LOCTITE®
T
R
.
.
Air filter case mounting bolt
9 Nm (0.9 m·kgf, 6.5 ft·lbf)
LOCTITE®
To Next Page
