Yamaha YP125R Service Manual

STEERING HEAD
4-57
EAS23090
STEERING HEAD

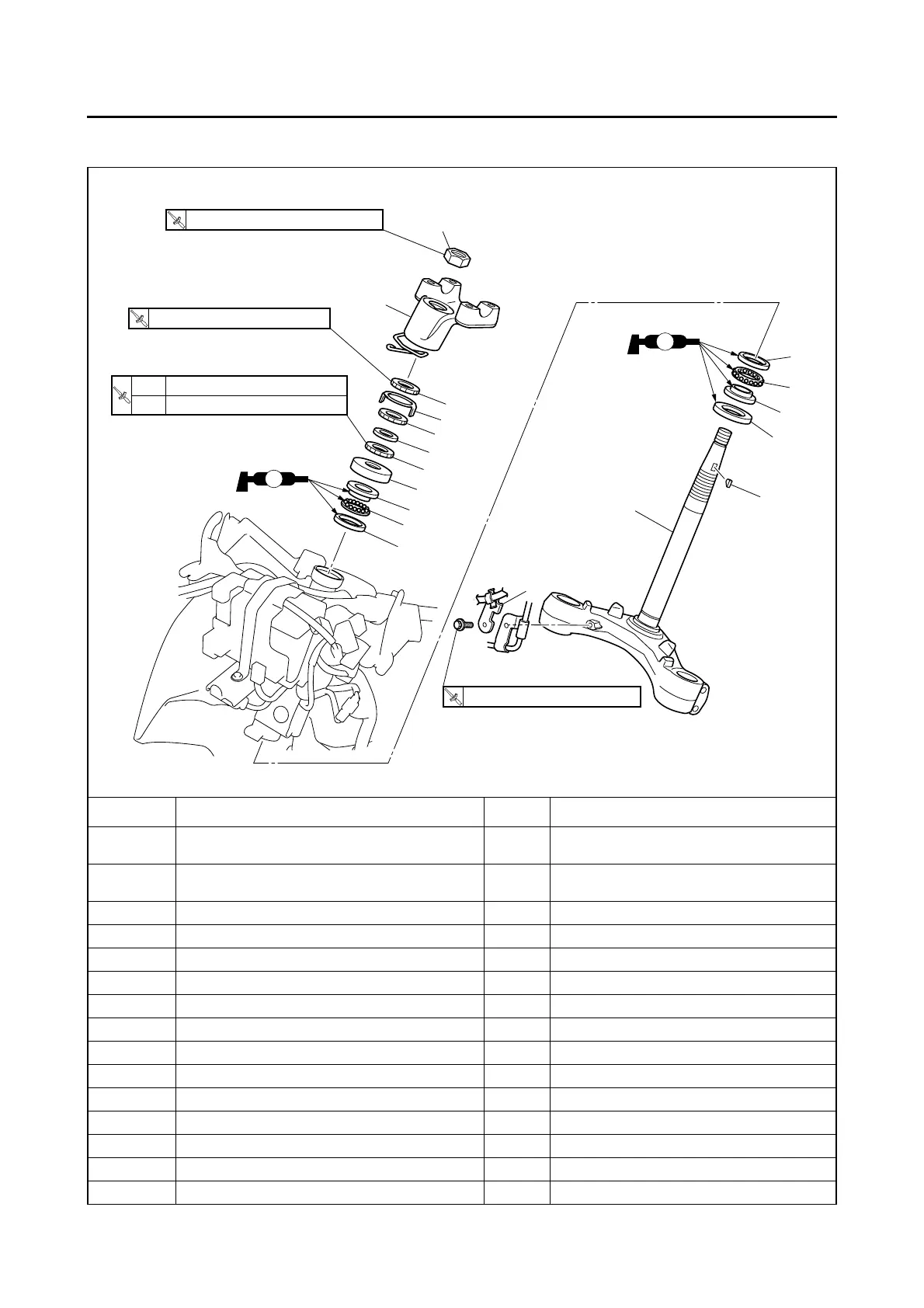

Removing the lower bracket
Order Job/Parts to remove Q’ty Remarks
Front cowling assembly
Refer to “GENERAL CHASSIS” on page
4-1.
Meter assembly cover
Refer to “GENERAL CHASSIS” on page
4-1.
Front fork legs Refer to “FRONT FORK” on page 4-50.
1 Speed sensor lead holder bracket 1
2 Steering stem nut 1
3 Lower handlebar holder 1
4 Woodruff key 1
5 Upper ring nut 1
6 Lock washer 1
7 Center ring nut 1
8 Rubber washer 1
9 Lower ring nut 1
10 Lower bracket 1
11 Upper bearing cover 1
12 Upper bearing inner race 1
4
5
6
7
8
9
11
12
13
18
3
2
10
15
16
14
17
1
LS
LS
9 Nm (0.9 m
•
kgf, 6.5 ft
•
Ibf)
T
.R.
1st 38 Nm (3.8 m
•
kgf, 27 ft
•
lbf)
2nd 22 Nm (2.2 m
•
kgf, 16 ft
•
lbf)
T
.R.
75 Nm (7.5 m
•
kgf, 54 ft
•
Ibf)
T
.R.
120 Nm (12.0 m
•
kgf, 85 ft
•
lbf)
T
.R.

Yamaha YP125R Specifications

General

Engine Type	Liquid-cooled, 4-stroke, SOHC, 4-valve
Bore x Stroke	52.4 mm x 57.9 mm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Front Suspension	Telescopic fork
Rear Suspension	Unit Swing
Front Brake	Hydraulic single disc, Ø267 mm
Starter System	Electric
Rear Tyre	140/70-14M/C 62P (Tubeless)
