FUEL TANK
7-3
EAS26630

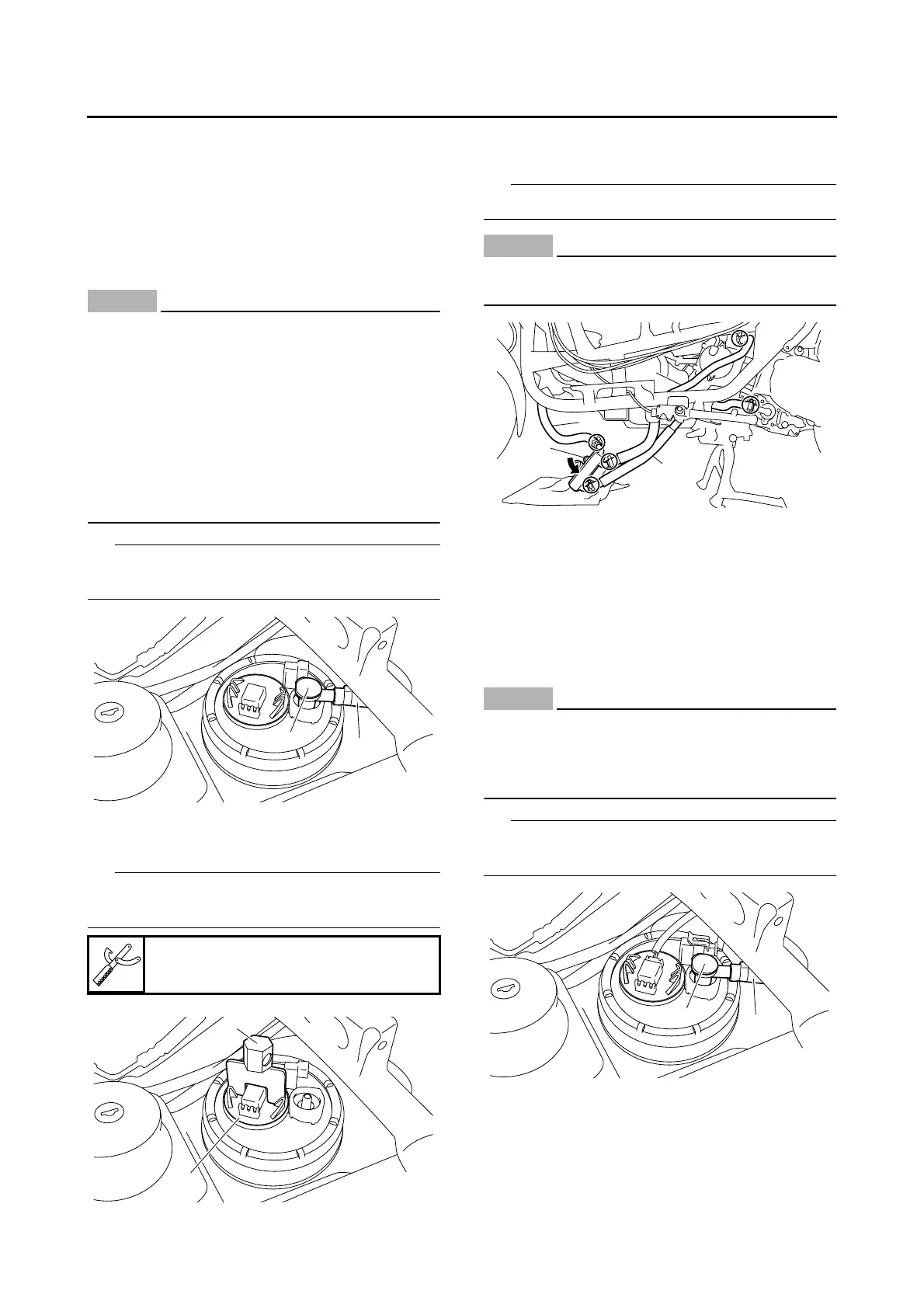

REMOVING THE FUEL TANK
1. Extract the fuel in the fuel tank through the
fuel tank filler hole with a pump.
2. Remove:
• Fuel hose connector cover “1”
3. Remove:
• Fuel hose “2”
NOTICE
ECA37P1023
• Be sure to disconnect the fuel hose by
hand. Do not forcefully disconnect the
hose with tools.
• Although the fuel has been removed from
the fuel tank, be careful when removing the
fuel hose, since there may be fuel remain-
ing in it.
• Do not disconnect the fuel hose from the
fuel hose connector. Disconnect the con-
nector from the fuel pump.
IP
Before removing the hose, place a few rags in
the area under where it will be removed.
4. Remove:
• Fuel sender “1”
IP
Remove the fuel sender with the fuel sender
wrench “2”.
5. Remove:
• Fuel tank
IP
To remove the fuel tank, lower the radiator “1”.
NOTICE
ECA37P1021
When removing the fuel tank, be sure not to
pull forcefully on the radiator hoses “2”.
EAS37P1071
CHECKING THE FUEL PRESSURE
1. Check:
• Pressure regulator operation
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Remove the fuel hose connector cover “1”,
and then remove the fuel hose “2” from the
fuel pump.
NOTICE
ECA37P1024
Although the fuel has been removed from
the fuel tank, be careful when removing the
fuel hose, since there may be fuel remaining
in it.
IP
Before removing the hose, place a few rags in
the area under where it will be removed.
b. Connect the pressure gauge “3” and fuel
pressure adapter “4”.
Fuel sender wrench
90890-11098
2
1
2
1
2
1
2
2
1
2
To Next Page
