Yamaha YP125R Service Manual

GENERAL CHASSIS
4-1
EAS21830
GENERAL CHASSIS

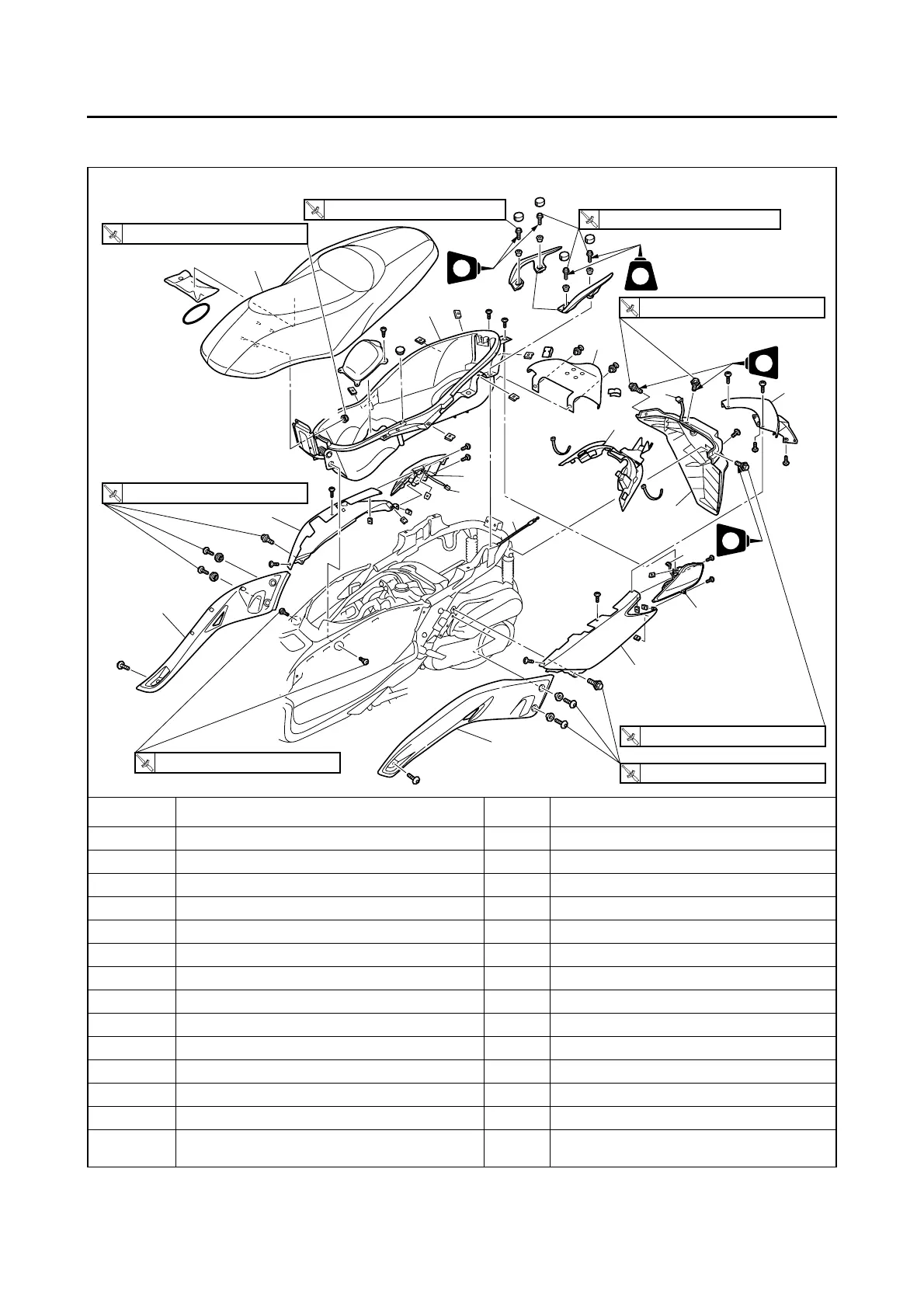

Removing the seat and storage box
Order Job/Parts to remove Q’ty Remarks
1 Seat 1
2 Grab bar 2
3 Rear cover 1
4 Tail/brake light assembly coupler 2 Disconnect.
5 Tail/brake light assembly 2
6 Center panel 2
7 Rear panel 2
8 License plate light coupler 1 Disconnect.
9 Mudguard 1
10 Water guard 1
11 Seat lock cable 1 Disconnect.
12 Storage box 1
13 Safety protector 1
For installation, reverse the removal proce-
dure.
4
4
3
2
1
5
6
6
7
7
8
9
(4)
(4)
12
13
10
11
5
LT
LT
LT
LT
LT
23 Nm (2.3 m
•
kgf, 17 ft
•
Ibf)
T
.R.
23 Nm (2.3 m
•
kgf, 17 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
11 Nm (1.1 m
•
kgf, 8.0 ft
•
Ibf)
T
.R.
11 Nm (1.1 m
•
kgf, 8.0 ft
•
Ibf)
T
.R.
11 Nm (1.1 m
•
kgf, 8.0 ft
•
Ibf)
T
.R.

Yamaha YP125R Specifications

General

Engine Type	Liquid-cooled, 4-stroke, SOHC, 4-valve
Bore x Stroke	52.4 mm x 57.9 mm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Front Suspension	Telescopic fork
Rear Suspension	Unit Swing
Front Brake	Hydraulic single disc, Ø267 mm
Starter System	Electric
Rear Tyre	140/70-14M/C 62P (Tubeless)
