Yamaha YP125R Service Manual

WATER PUMP (YP250R)
6-12
EAS26500

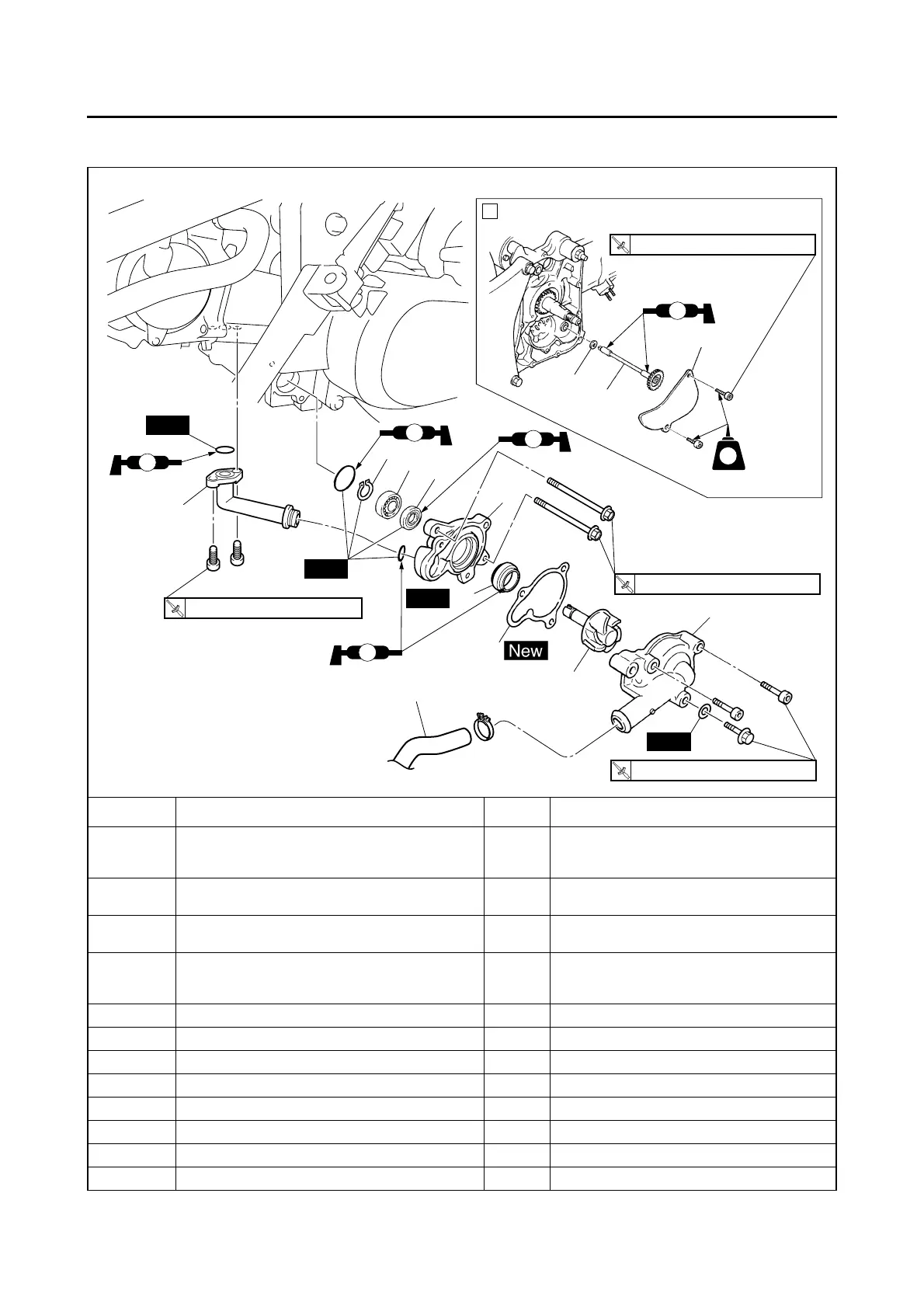

WATER PUMP (YP250R)
Removing the water pump
Order Job/Parts to remove Q’ty Remarks
It is not necessary to remove the water
pump unless the coolant level is extremely
low or the coolant contains engine oil.
Bottom cover
Refer to “GENERAL CHASSIS” on page
4-1.
Generator rotor
Refer to “STARTER CLUTCH AND GENER-
ATOR (YP250R)” on page 5-99.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-32.
1 Oil baffle plate 1
2 Impeller shaft gear 1
3Washer 1
4 Radiator outlet hose 1 Disconnect.
5 Water pump outlet pipe 1
6 Water pump housing cover 1
7Gasket 1
8 Water pump housing 1
New
LS
LS
12
11
13
New
New
New
7
8
10
9
5
6
4
3
2
1
LS
LS
A
LT
M
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
12 Nm (1.2 m
•
kgf, 8.7 ft
•
Ibf)
T
.R.
