Yamaha YP125R Service Manual

ELECTRIC STARTING SYSTEM
8-7
EAS27180

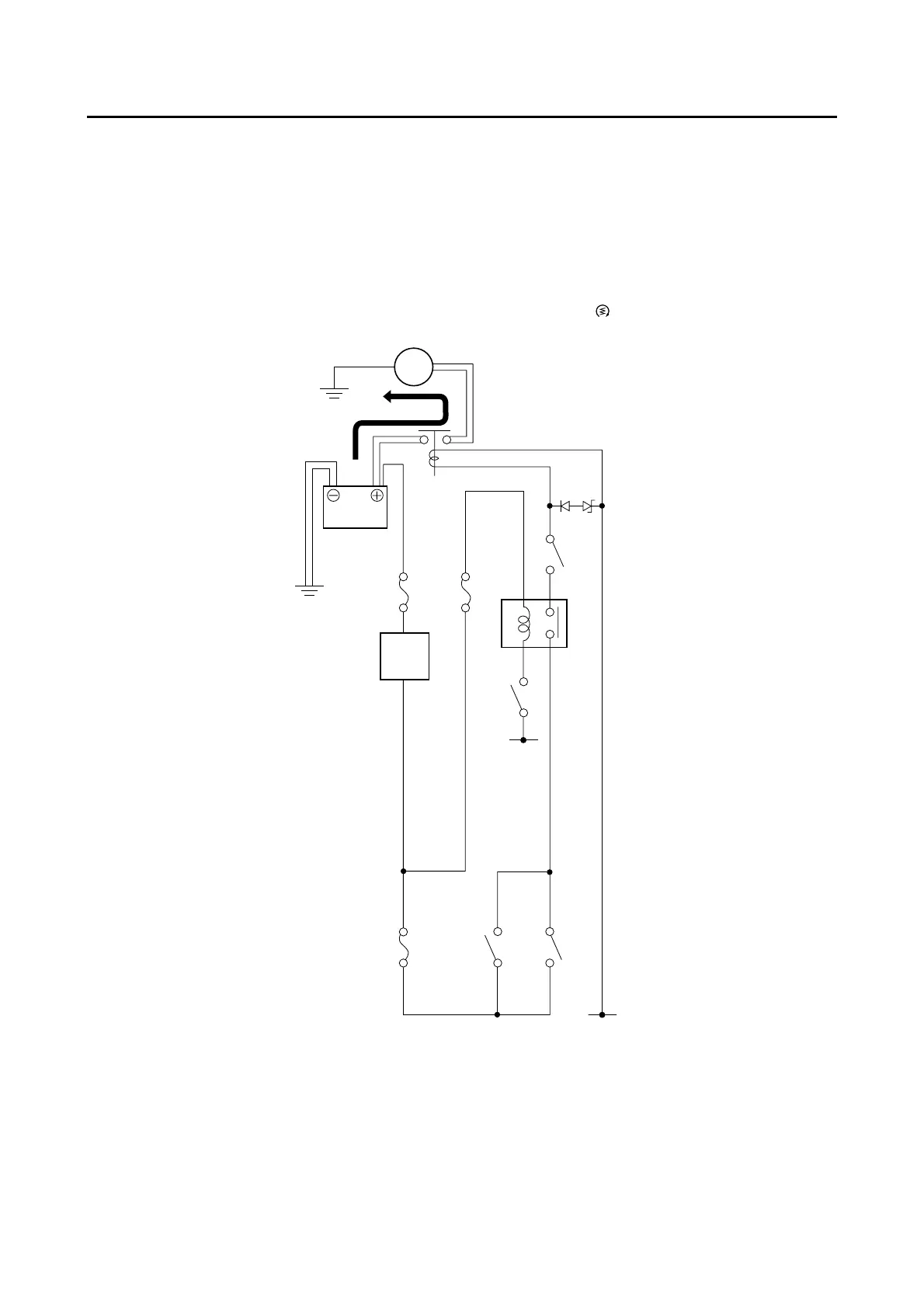

STARTING CIRCUIT CUT-OFF SYSTEM OPERATION
If the main switch is set to “ON” (switch circuit is closed), the starter motor can only operate if the fol-
lowing conditions are met:
• The brake lever is pulled to the handlebar (the brake switch is closed) and the sidestand is up (the
sidestand switch is closed).
The starting circuit cut-off relay prevents the starter motor from operating when neither of these condi-
tions has been met. In this instance, the starting circuit cut-off relay is open so current cannot reach the
starter motor. When at least one of the above conditions has been met, the starting circuit cut-off relay
is closed and the engine can be started by pressing the start switch “”.
13
12
24
3
11
10
5
6
789
1

Yamaha YP125R Specifications

General

Engine Type	Liquid-cooled, 4-stroke, SOHC, 4-valve
Bore x Stroke	52.4 mm x 57.9 mm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Front Suspension	Telescopic fork
Rear Suspension	Unit Swing
Front Brake	Hydraulic single disc, Ø267 mm
Starter System	Electric
Rear Tyre	140/70-14M/C 62P (Tubeless)
