Yamaha YP125R Service Manual

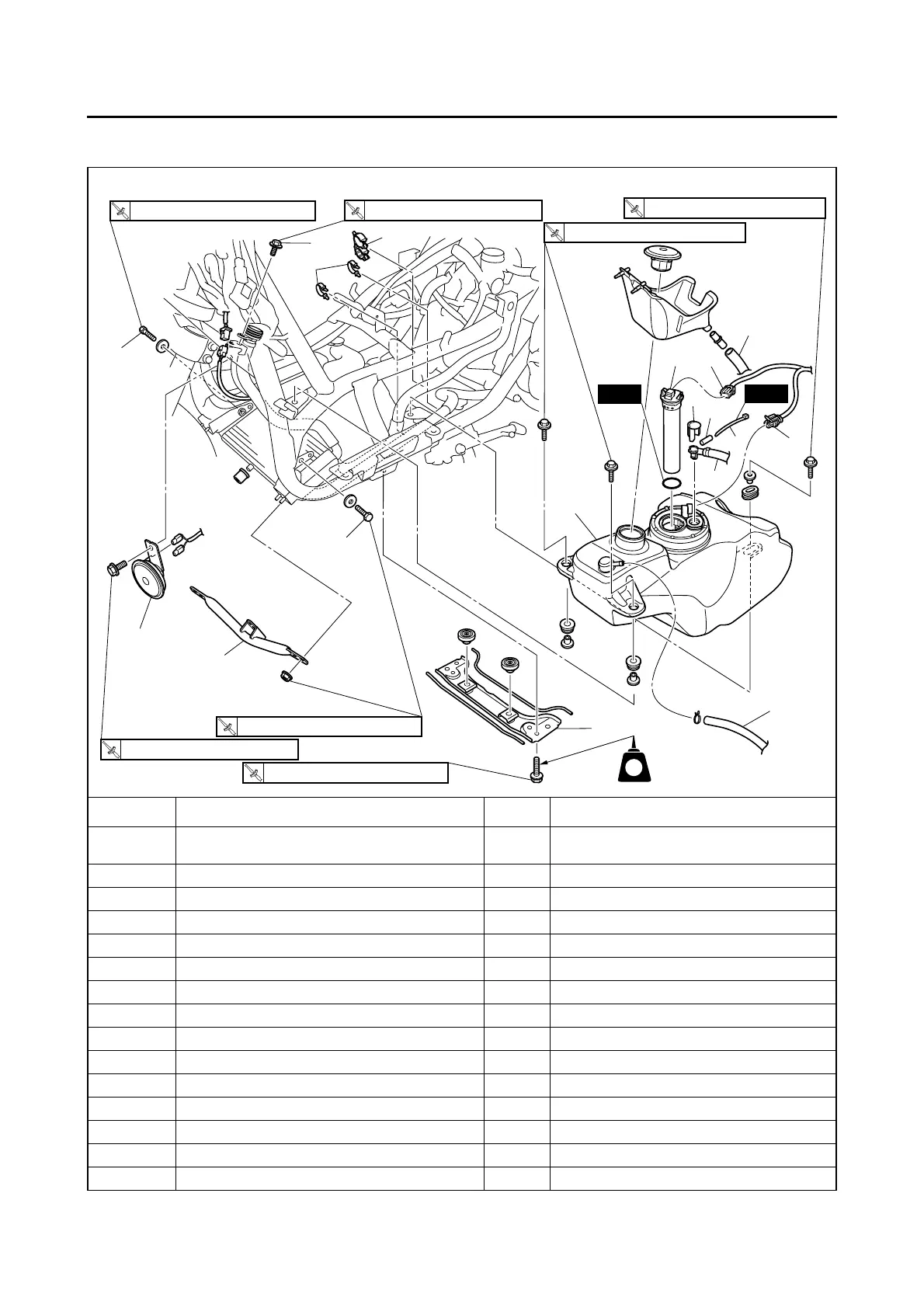

FUEL TANK
7-1
EAS26620
FUEL TANK
Removing the fuel tank
Order Job/Parts to remove Q’ty Remarks
Storage box/Front cowling assembly/Bottom
cover
Refer to “GENERAL CHASSIS” on page
4-1.
1Horn 1
2 Fuel pump coupler 1 Disconnect.
3 Fuel sender coupler 1 Disconnect.
4 Fuel tank breather hose 1
5 Fuel tank overflow hose 1
6 Plastic locking tie 1 YP250R only
7 Tube 1 YP250R only
8 Fuel hose connector cover 1
9 Fuel hose 1 Disconnect.
10 Fuel sender 1
11 Fuel tank bracket 1
12 Radiator fan motor coupler 1 Disconnect.
13 Clamp 3
14 Radiator cap holder bolt 1
New
New
LT
16
13
13
14
12
16
1
15
11
(4)
(4)
10
8
9
3
7
6
2
5
17
4
13 Nm (1.3 m
•
kgf, 9.4 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
14 Nm (1.4 m
•
kgf, 10 ft
•
Ibf)
T
.R.
14 Nm (1.4 m
•
kgf, 10 ft
•
Ibf)
T
.R.

Yamaha YP125R Specifications

General

Engine Type	Liquid-cooled, 4-stroke, SOHC, 4-valve
Bore x Stroke	52.4 mm x 57.9 mm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Front Suspension	Telescopic fork
Rear Suspension	Unit Swing
Front Brake	Hydraulic single disc, Ø267 mm
Starter System	Electric
Rear Tyre	140/70-14M/C 62P (Tubeless)
