Yamaha YP125R Service Manual

ELECTRIC STARTER (YP250R)
5-104
EAS24780
ELECTRIC STARTER (YP250R)

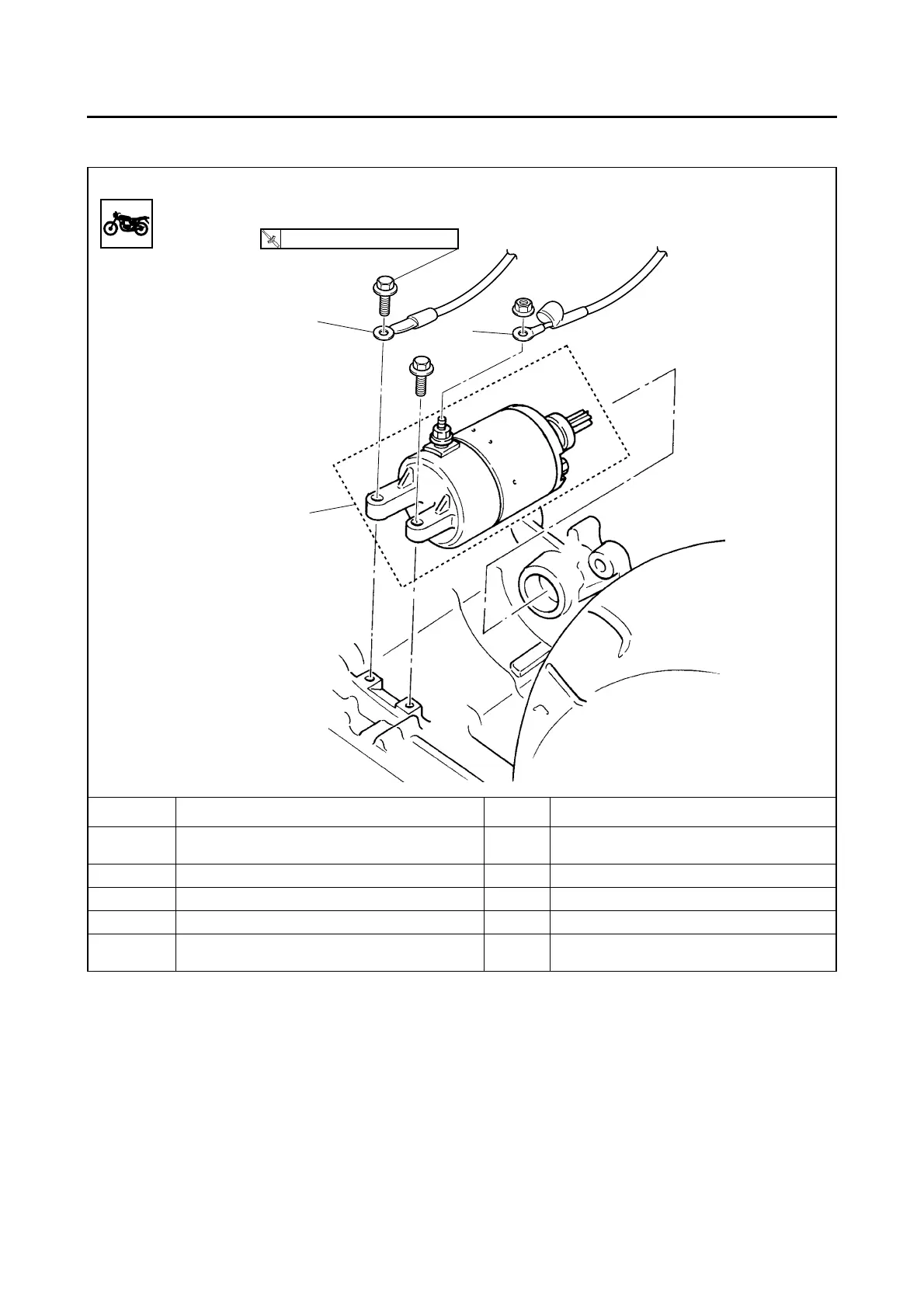

Removing the starter motor
Order Job/Parts to remove Q’ty Remarks
Storage box/Air filter case
Refer to “GENERAL CHASSIS” on page
4-1.
1 Starter motor lead 1 Disconnect.
2 Ground lead 1 Disconnect.
3 Starter motor 1
For installation, reverse the removal proce-
dure.
2
3
1
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
