V-BELT AUTOMATIC TRANSMISSION (YP250R)
5-96
• Primary sliding sheave
• Spacer
• Primary sheave weights
• Cam
2. Install:
• Primary sheave weights “1”
• Spacer “2”
IP
Before installing the primary sheave weights, lu-
bricate the inside and outside of each weight
with Shell BT grease 3®.
EAS24730

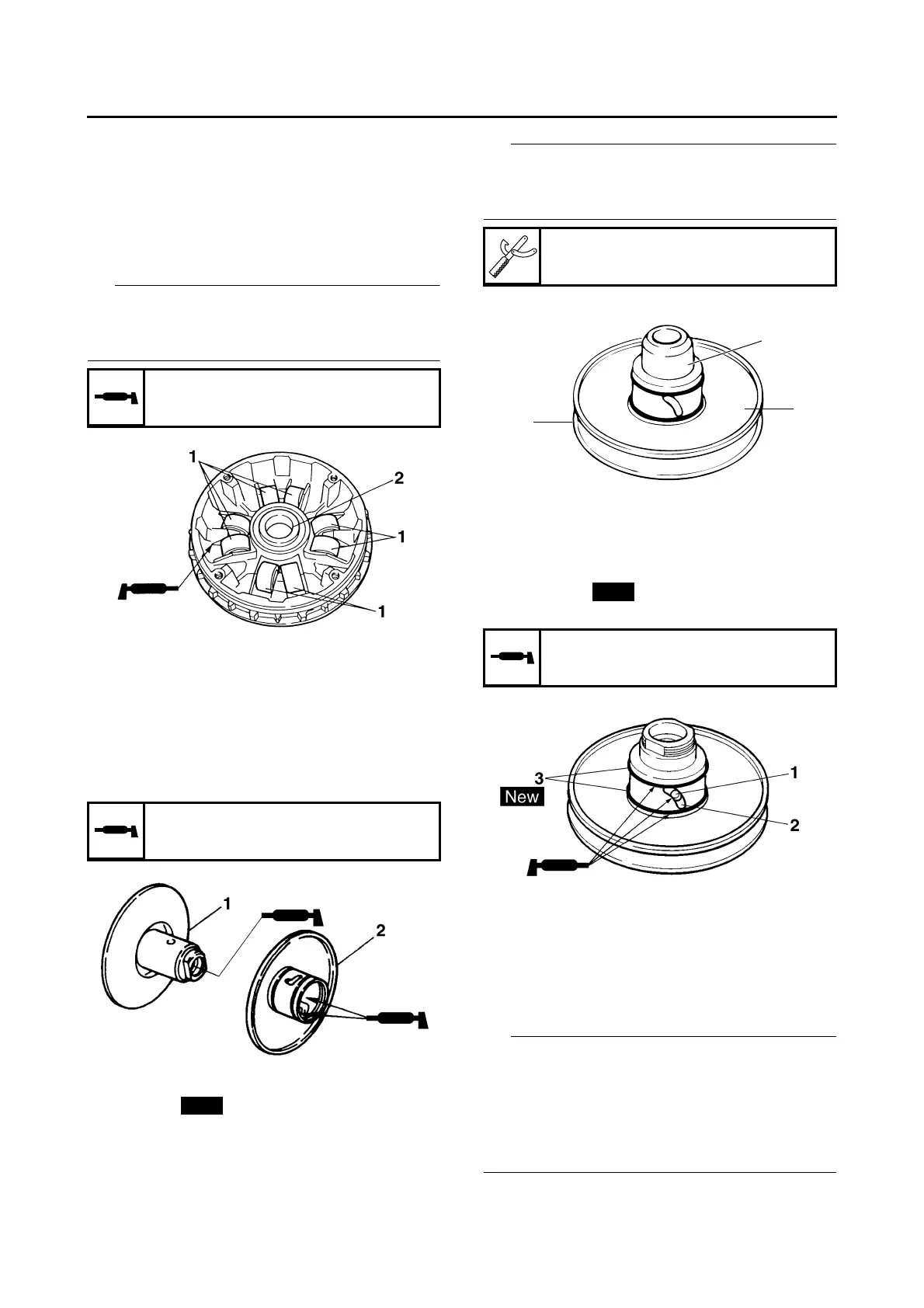

ASSEMBLING THE SECONDARY SHEAVE
1. Lubricate:
• Secondary fixed sheave’s inner surface “1”
• Secondary sliding sheave’s inner surface “2”
• Oil seals
• Bearing
(with the recommended lubricant)
2. Install:
• Oil seals
• Secondary sliding sheave “1”
IP
Install the secondary sliding sheave onto the
secondary fixed sheave “2” with the oil seal
guide “3”.
3. Install:
• Guide pins “1”
4. Lubricate:
• Guide pin grooves “2”
• O-rings “3”
(with the recommended lubricant)
5. Install:
• Spring seat
• Compression spring
• Spacer
• Clutch carrier “1”
• Clutch carrier nut “2”
IP
• While compressing the compression spring
with the clutch spring holder “3” and clutch
spring holder arm “4”, install the clutch carrier
nut.
• Install the clutch carrier nut “2” with its tapered
side “a” facing the clutch carrier.
Recommended lubricant
Shell BT grease 3®
Recommended lubricant
BEL-RAY assembly lube®
New
Oil seal guide (ø41)
90890-01396
Recommended lubricant
BEL-RAY assembly lube®
2
1
3
New
To Next Page
