CAMSHAFT (YP125R)
5-17
EAS37P1012
INSTALLING THE CAMSHAFT AND ROCKER
ARMS
1. Lubricate:
• Camshaft
2. Lubricate:
• Rocker arms
• Rocker arm shafts
3. Install:
• Rocker arms
• Rocker arm shafts “1”
T
IP
• Make sure that the cutout “a” in each rocker
arm shaft is facing downward as shown in the
illustration.
• Make sure the rocker arm shafts (intake and
exhaust) are completely pushed into the cylin-
der head.
4. Install:
• Camshaft “1”
T
IP

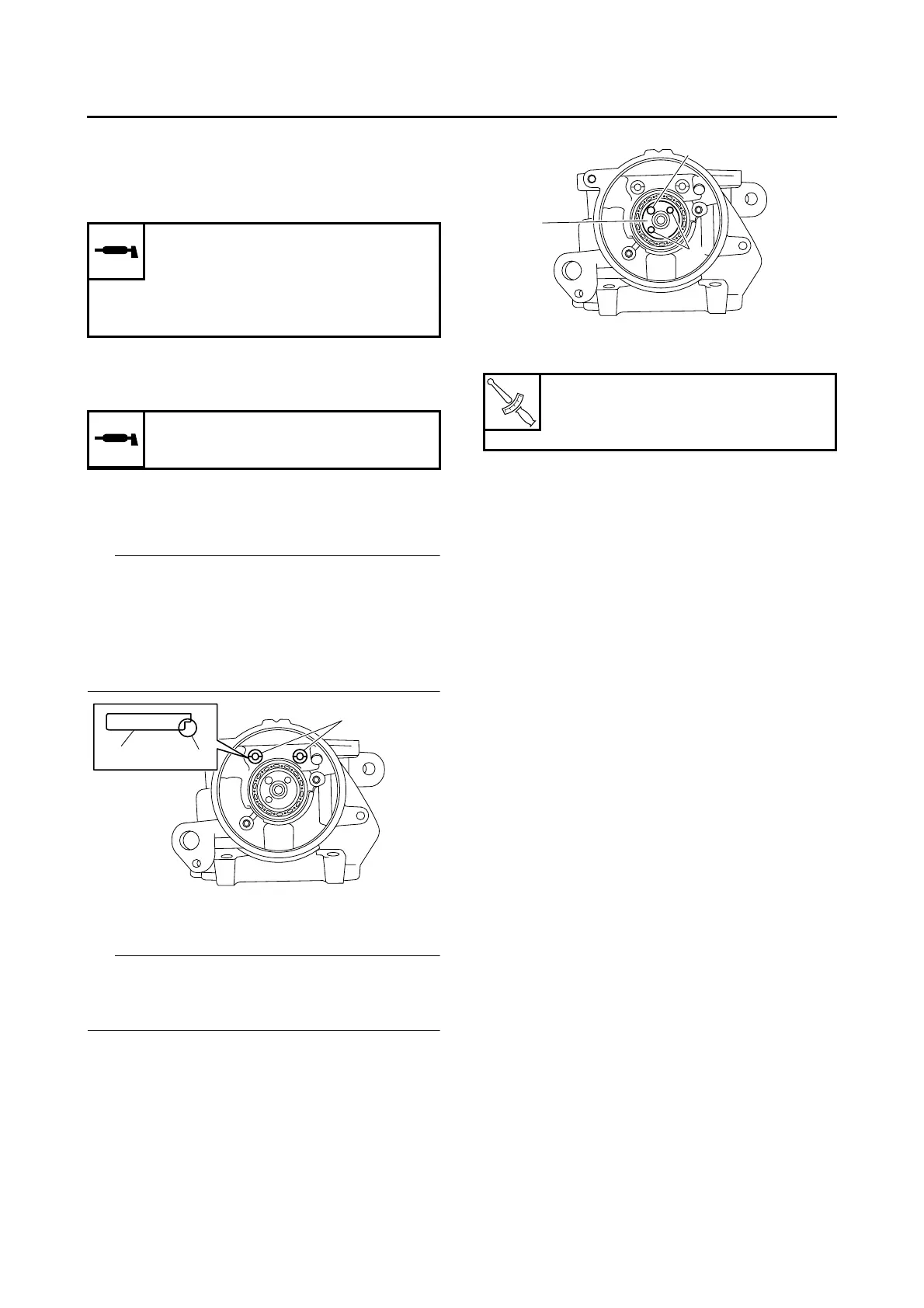

Make sure that the camshaft projections “a” and
hole “b” are positioned as shown in the illustra-
tion.
5. Install:
• Camshaft retainer
Recommended lubricant
Camshaft
Molybdenum disulfide grease
Camshaft bearing
Engine oil
Recommended lubricant
Molybdenum disulfide oil
a
1
1
T
R
.
.
Camshaft retainer bolt
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
LOCTITE®
a
1
b
