STARTER CLUTCH AND GENERATOR (YP250R)
5-99
EAS24480
STARTER CLUTCH AND GENERATOR (YP250R)

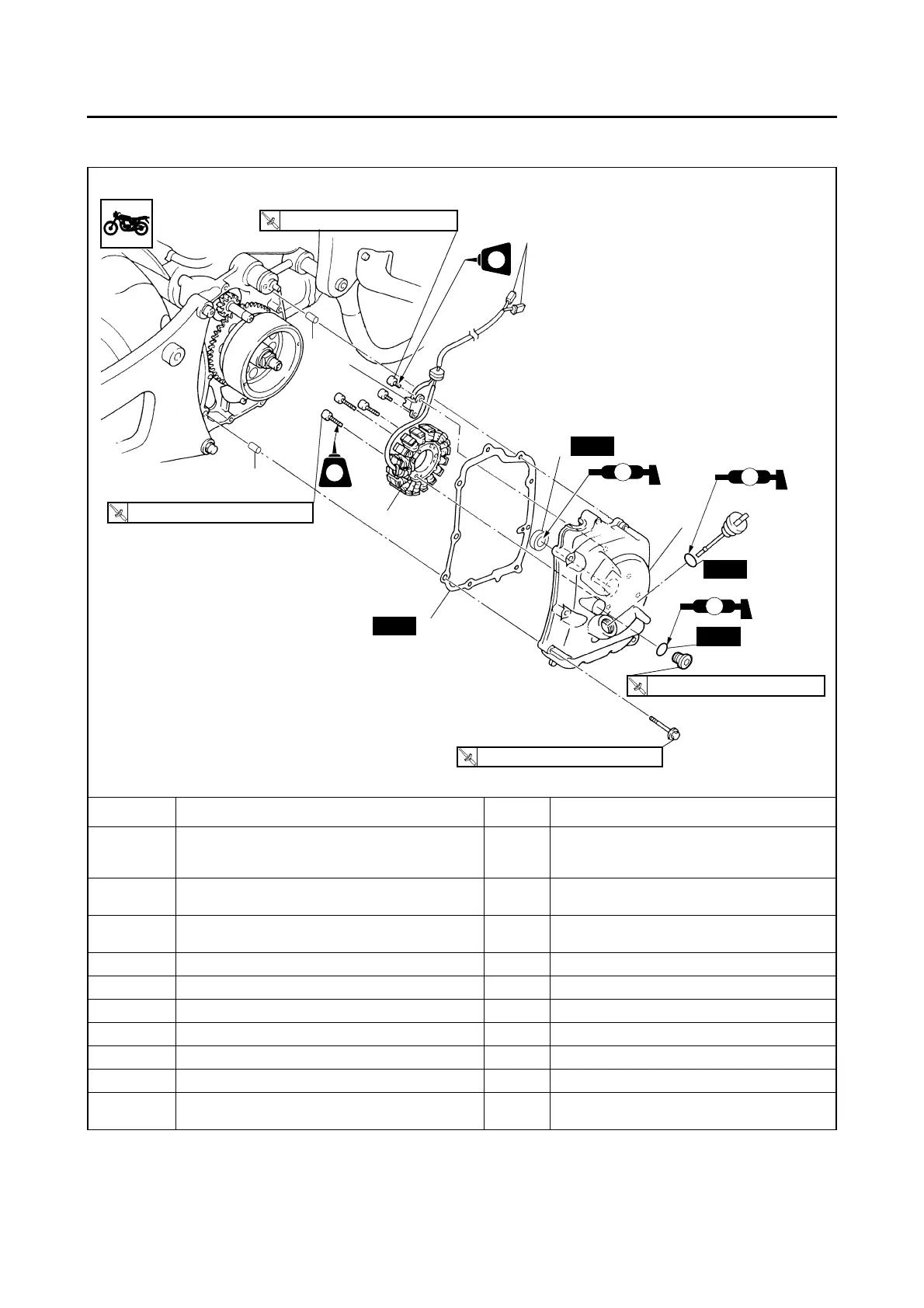

Removing the generator cover and stator coil
Order Job/Parts to remove Q’ty Remarks
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-27.
Muffler/Exhaust pipe
Refer to “ENGINE REMOVAL (YP250R)” on
page 5-61.
1
Crankshaft position sensor coupler/Stator as-
sembly coupler
1/1 Disconnect.
2 Generator cover 1
3 Generator cover gasket 1
4 Dowel pin 2
5 Crankshaft position sensor 1
6 Stator coil 1
7 Oil seal 1
For installation, reverse the removal proce-
dure.
4
4
5
6
3
(10)
2
7
New
New
New
New
LS
LS
1
LT
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
10 Nm (1.0 m
•
kgf, 7.2 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
8 Nm (0.8 m
•
kgf, 5.8 ft
•
Ibf)
T
.R.
LS
LT
LT
