Yamaha YP125R Service Manual

FRONT FORK
4-50
EAS22950
FRONT FORK

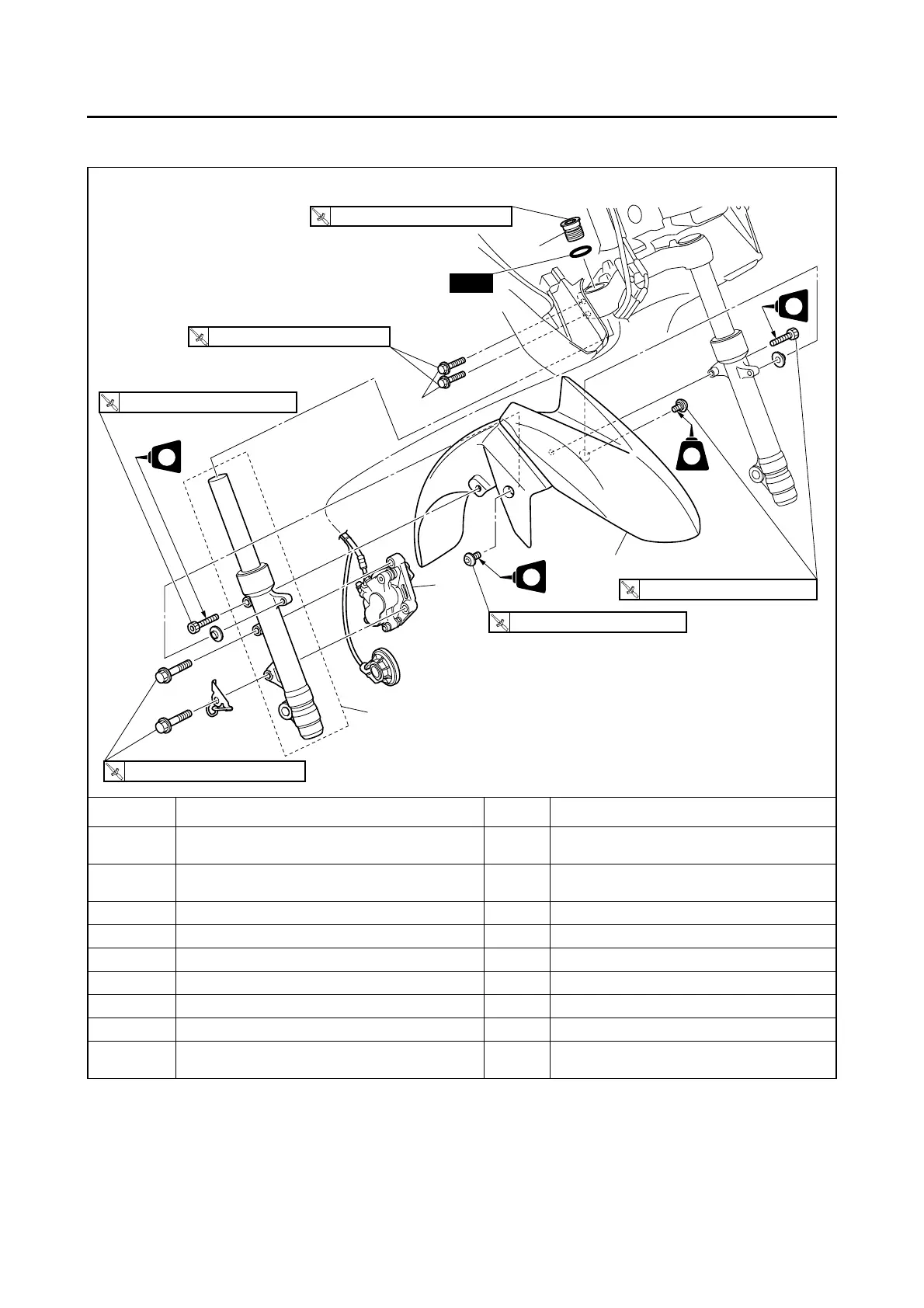

Removing the front fork legs
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front fork legs.
Front cowling assembly
Refer to “GENERAL CHASSIS” on page
4-1.
Front wheel Refer to “FRONT WHEEL” on page 4-9.
1 Front brake caliper 1
2 Front fender 1
3 Cap bolt 1
4 Lower bracket pinch bolt 2 Loosen.
5Front fork leg 1
For installation, reverse the removal proce-
dure.
3
1
2
4
5
LT
LT
New
LT
LT
LT
LT
LT
45 Nm (4.5 m
•
kgf, 32 ft
•
Ibf)
T
.R.
23 Nm (2.3 m
•
kgf, 17 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
40 Nm (4.0 m
•
kgf, 29 ft
•
Ibf)
T
.R.
