Yamaha YP125R Service Manual

HANDLEBAR
4-46
EAS22840

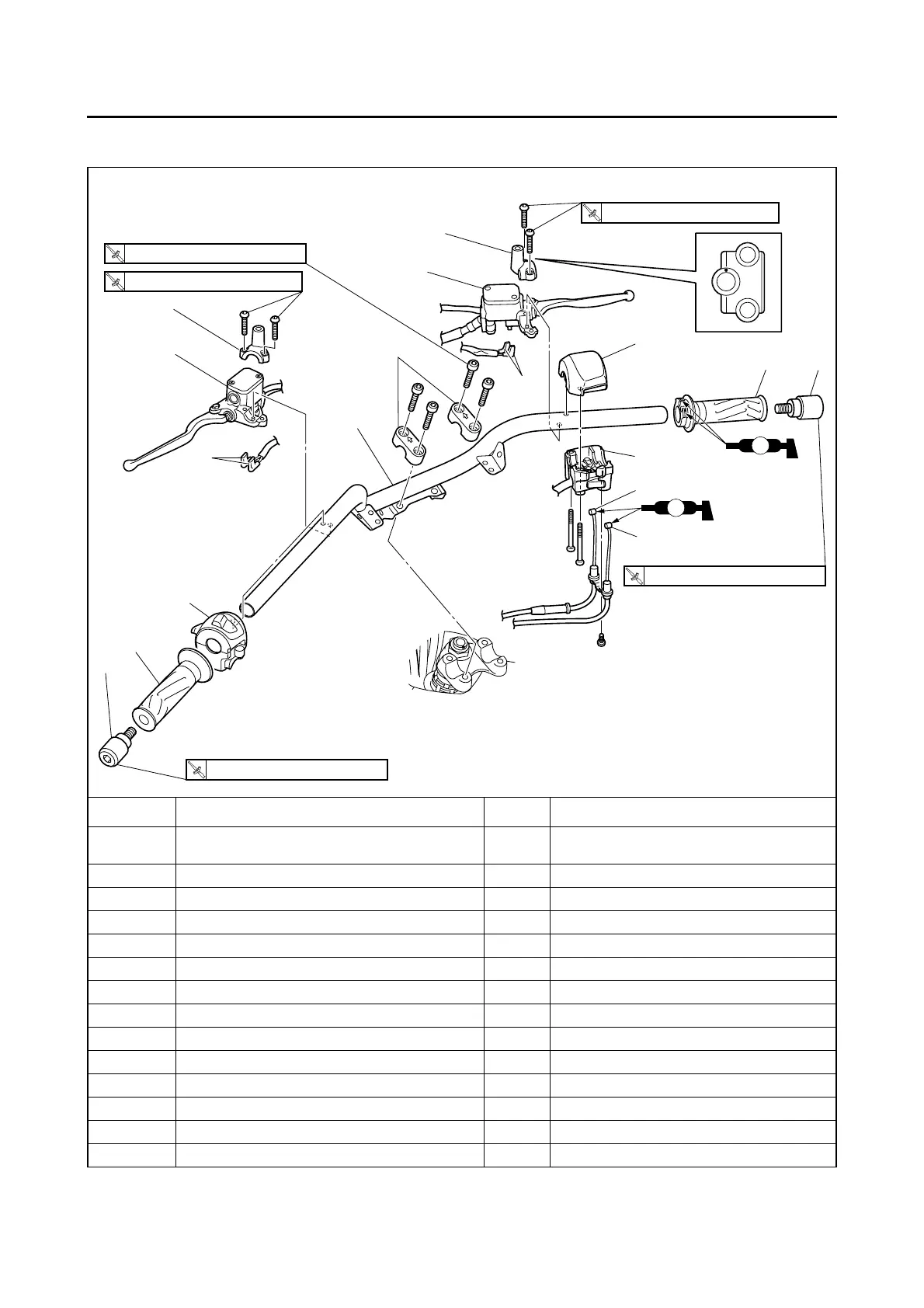

HANDLEBAR
Removing the handlebar
Order Job/Parts to remove Q’ty Remarks
Lower handlebar cover
Refer to “GENERAL CHASSIS” on page
4-1.
1 Grip end 2
2 Front brake light switch connector 2 Disconnect.
3 Front brake master cylinder holder 1
4 Front brake master cylinder 1
5 Right handlebar switch 1
6 Throttle cable 2 Disconnect.
7 Throttle grip 1
8 Rear brake light switch connector 2 Disconnect.
9 Rear brake master cylinder holder 1
10 Rear brake master cylinder 1
11 Left handlebar switch 1
12 Handlebar grip 1
13 Upper handlebar holder 2
7
5
5
3
13
9
11
6
6
1
14
12
4
2
10
8
1
LS
LS
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
7 Nm (0.7 m
•
kgf, 5.1 ft
•
Ibf)
T
.R.
23 Nm (2.3 m
•
kgf, 17 ft
•
Ibf)
T
.R.
26 Nm (2.6 m
•
kgf, 19 ft
•
Ibf)
T
.R.
26 Nm (2.6 m
•
kgf, 19 ft
•
Ibf)
T
.R.

Yamaha YP125R Specifications

General

Engine Type	Liquid-cooled, 4-stroke, SOHC, 4-valve
Bore x Stroke	52.4 mm x 57.9 mm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	V-Belt Automatic
Front Suspension	Telescopic fork
Rear Suspension	Unit Swing
Front Brake	Hydraulic single disc, Ø267 mm
Starter System	Electric
Rear Tyre	140/70-14M/C 62P (Tubeless)
