Barcode Capture Using the RS507x
Pair the RS507x with the L10. See Pairing Scanners by Using Simple Serial Interface (SSI) on page 115 or Pairing
Scanners by Using Human Interface Device (HID) on page 116
for more information.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the RS507x at a barcode.
3. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed by the
cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting conditions.
The RS507x LEDs light green, a beep sounds to indicate the barcode was decoded successfully. Note that
when the RS507x is in Picklist Mode, the RS507x does not decode the barcode until the center of the crosshair
touches the barcode.

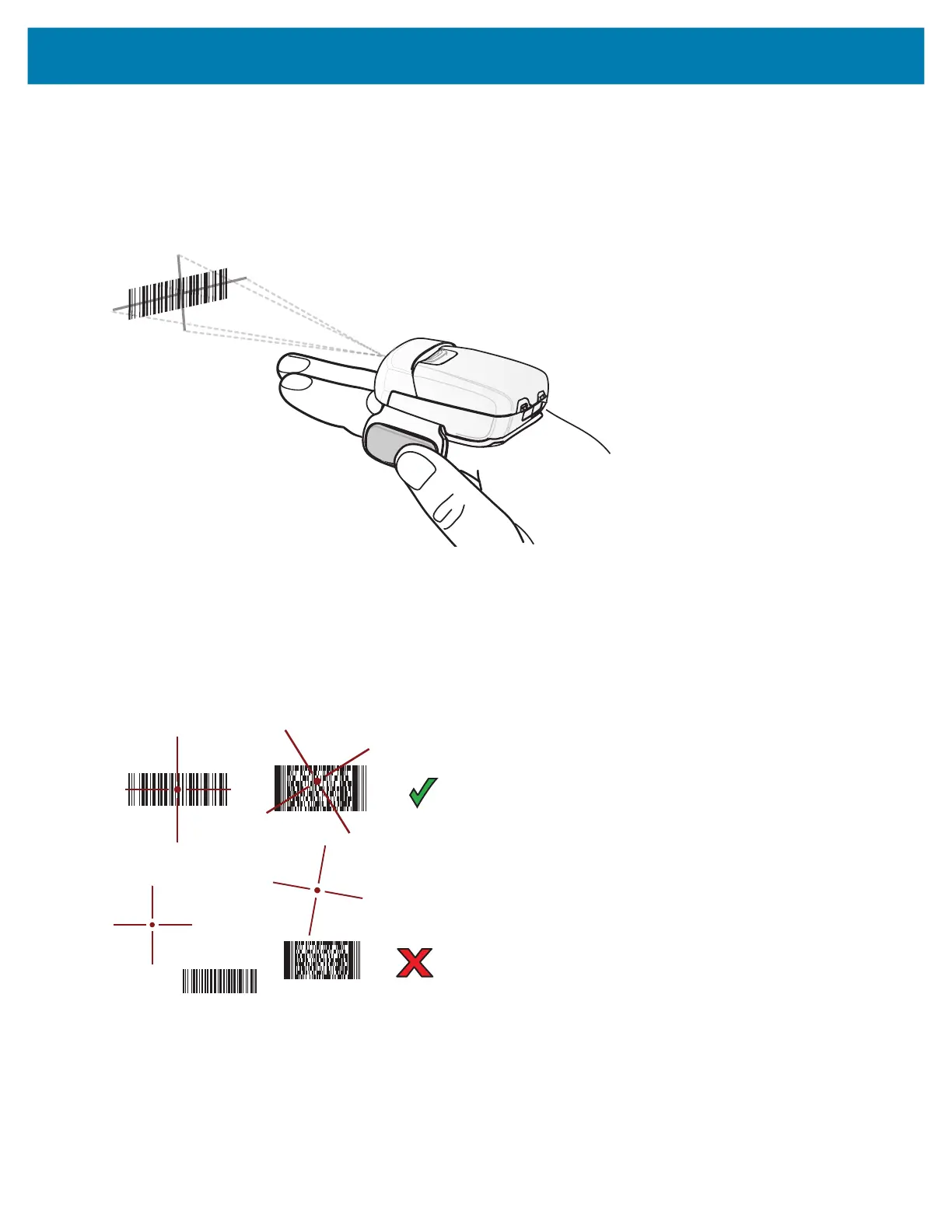

Figure 81 Aiming Pattern
