Brother MFC-J2320 Service Manual

3-7
Confidential

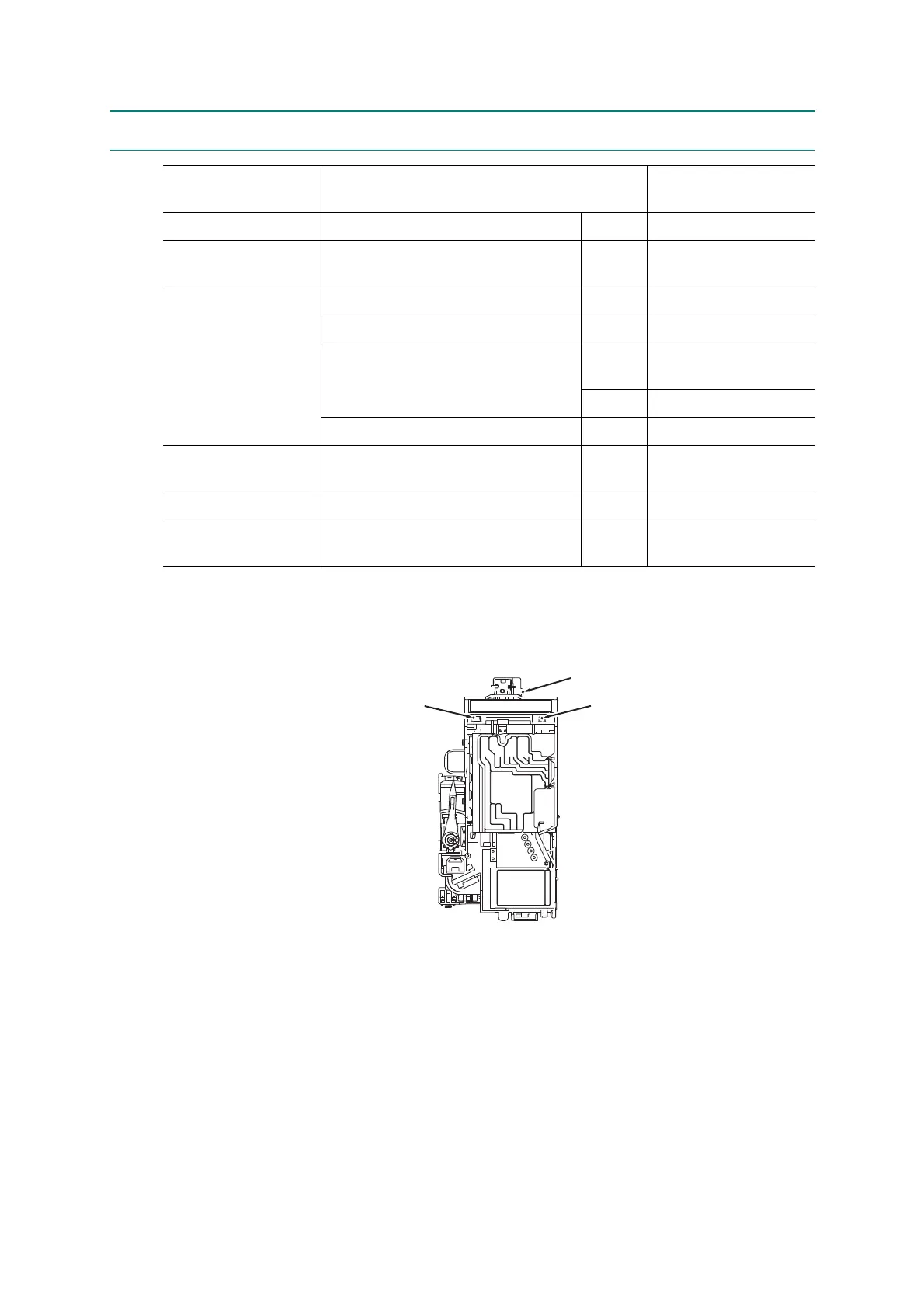

5 LUBRICATION
 Head/carriage unit
Lubricant type
(manufacturer)
Lubrication points
Lubricant amount
per point
Permalub BAN-5 Head/carriage unit 1 1.5 mm diameter ball
FLOIL BG-1319
(Kanto Kasei)
Head/carriage unit 2 1.0 mm diameter ball
FLOIL BG-1319
(Kanto Kasei)
CR guide rail (top face) 24 2.0 mm diameter ball
CR frame (top face) 24 2.0 mm diameter ball
CR frame
(inner side of the rear upright edge) 30 2.0 mm diameter ball
(inner side of the front upright edge) 30 2.0 mm diameter ball
CR frame (bottom face) 2 1.0 mm diameter ball
FLOIL BG-10KS
(Kanto Kasei)
Platen/paper ejection roller 4 1.0 mm diameter ball
Permalub BAN-5 Paper feed roller 2 3.0 mm diameter ball
FLOIL BG-10KS
(Kanto Kasei)
Paper pull-in rollers (T1/T2) 2 2.0 mm diameter ball
Apply grease here.
Apply grease here.
Apply grease here.
