3-80
Confidential
9.32 T1 Bank ASSY
(1) Slightly hold down the Inside cover ASSY to release the Bosses and remove the
Inside cover ASSY.
(2) Release the seven Hooks and remove the T1 bank ASSY.

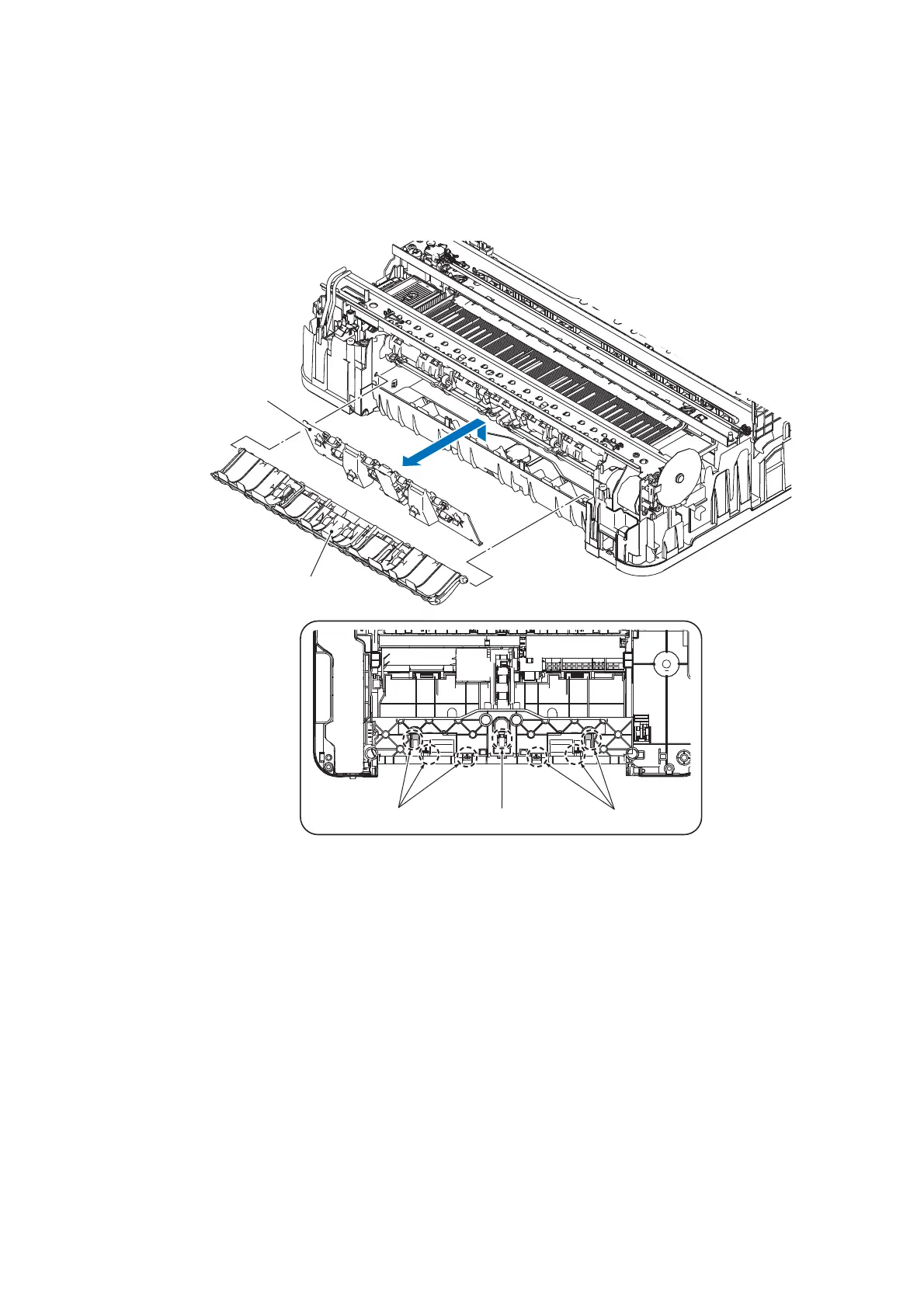

Fig. 3-84
T1 bank ASSY
Inside cover ASSY
Hooks
Hook
Hooks
