3-108
Confidential
9.49 T1 Base Pad
(1) If the T1 base pad needs to be replaced, peel it off the bottom of the Paper tray
ASSY 1.
Note: Once removed, the T1 base pad will become unusable and a new pad will have
to be put back in.

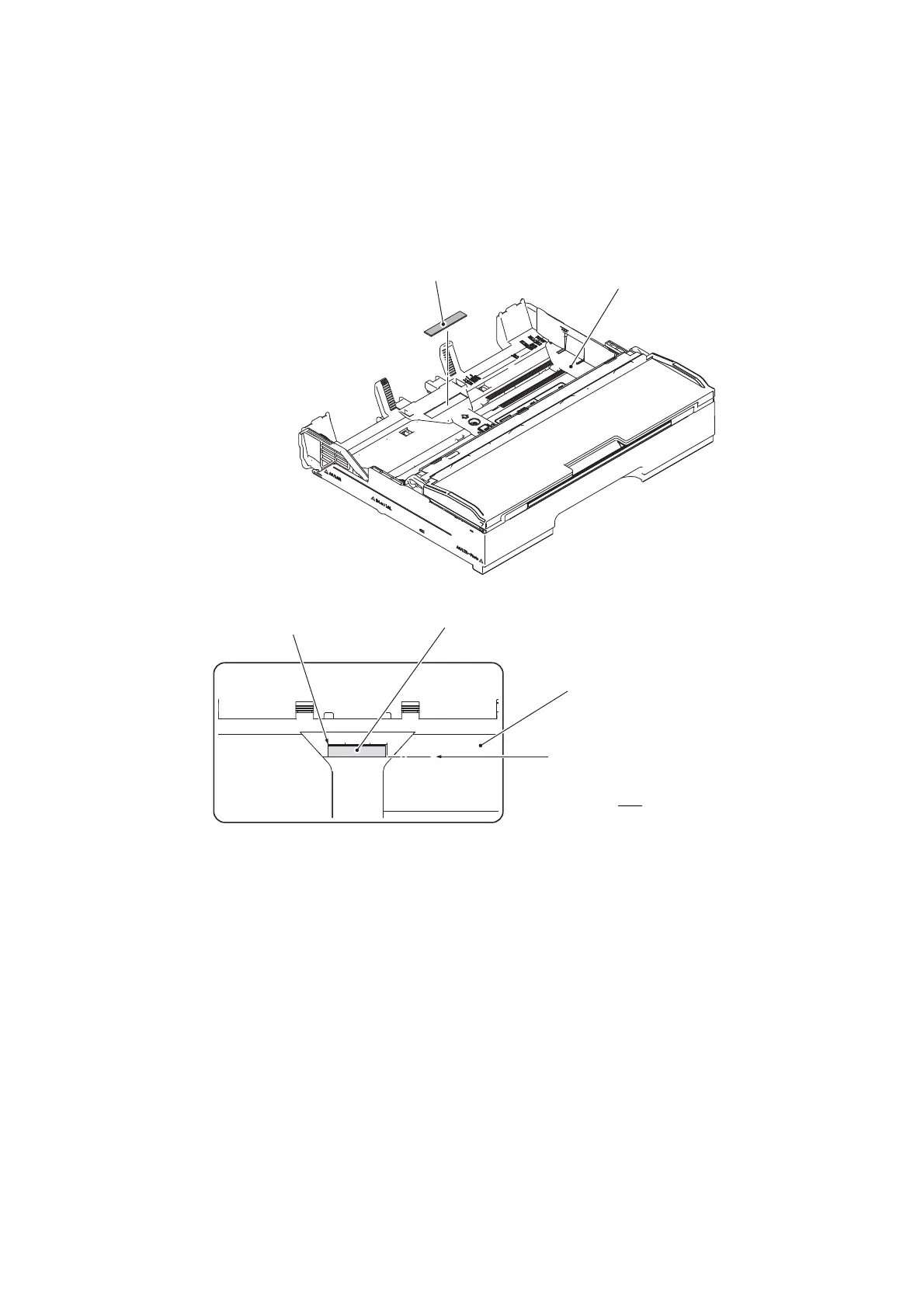

Fig. 3-124
Assembling Note: When attaching a new T1 base pad to the Paper tray ASSY 1, align
the front edge of the pad with that of the Depressed section on the Paper tray ASSY 1
and center the pad widthways as shown above.
T1 base pad
Paper tray ASSY 1
Paper tray ASSY 1
T1 base pad
Depressed section
Align the edge of the T1 base pad
with the front edge of the depressed
section at the bottom of the Paper
tray (this line
).
