Brother MFC-J2320 Service Manual

3-94
Confidential
9.41 PF Encoder Disk/PF Encoder PCB ASSY

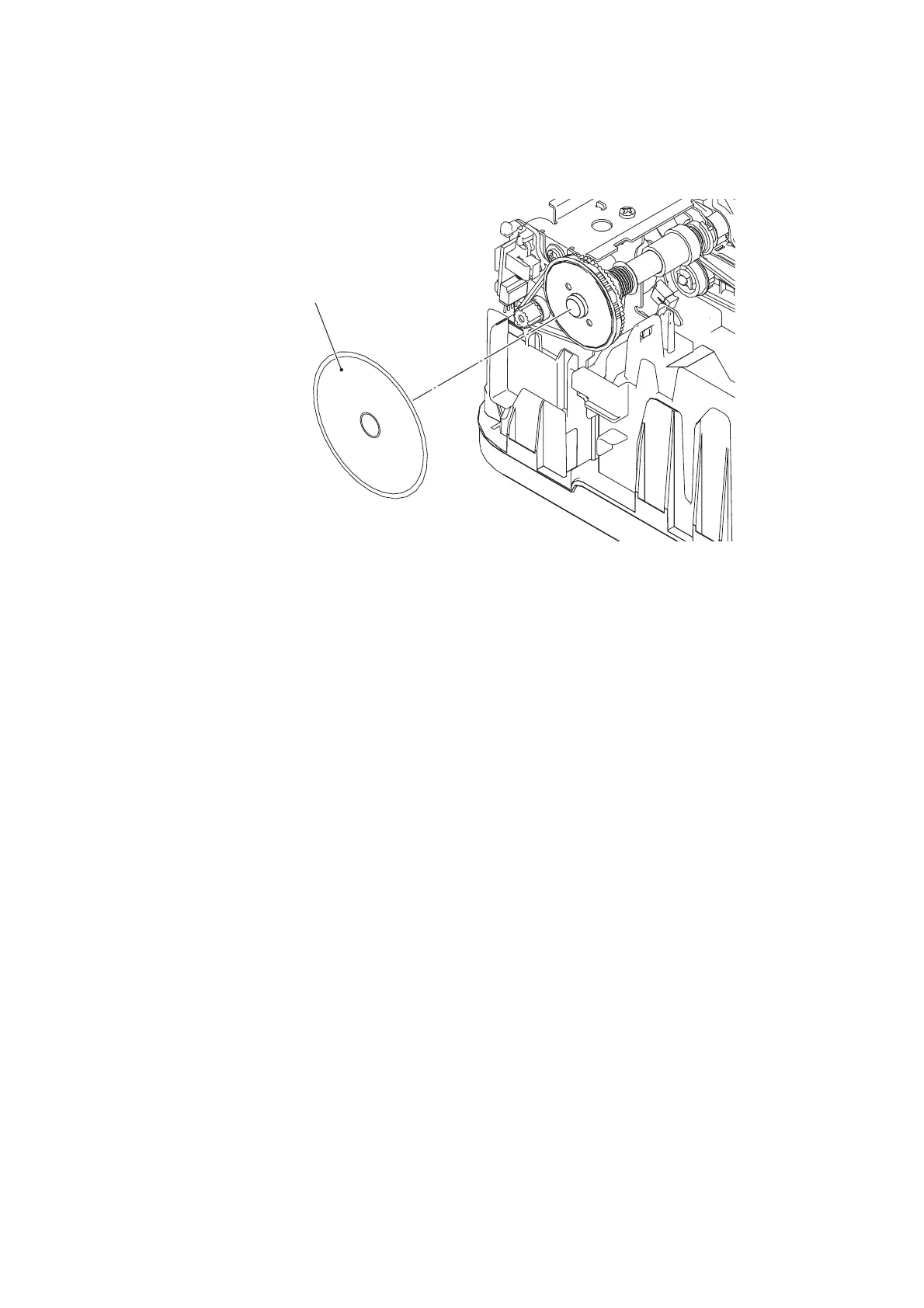

(1) Remove the PF encoder disk.
Fig. 3-104
Note: Once removed, the PF encoder disk should be replaced with a new one.
Assembling Note: When attaching the PF encoder disk, using a spatular tool makes
the job easier. Put on clean gloves to protect the disk surface from dust or fingerprints.
PF encoder disk
