3-88
Confidential
9.37 Flushing Base
(1) Release the wiring of the Switchback sensor PCB.
(2) Remove the two screws (TAPTITE CUP B M3x10) and remove the Switchback
frame ASSY.

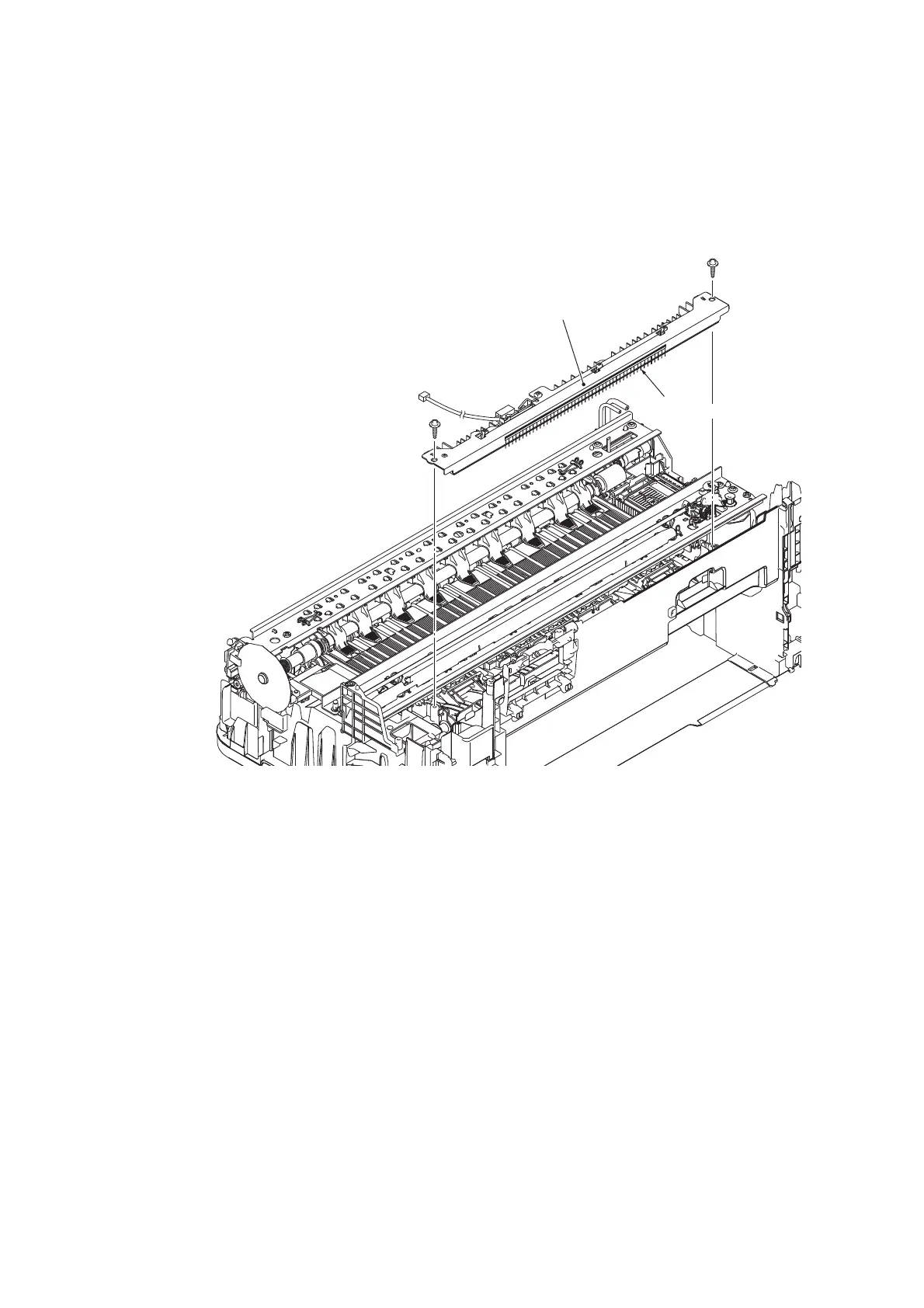

Fig. 3-95
Assembling Note: When mounting the Switchback frame, take care not to wind in the
Anti-static brush.
Switchback frame ASSY
TAPTITE CUP B M3x10
Anti-static brush
