3-65
Confidential
9.27 Carriage PCB ASSY

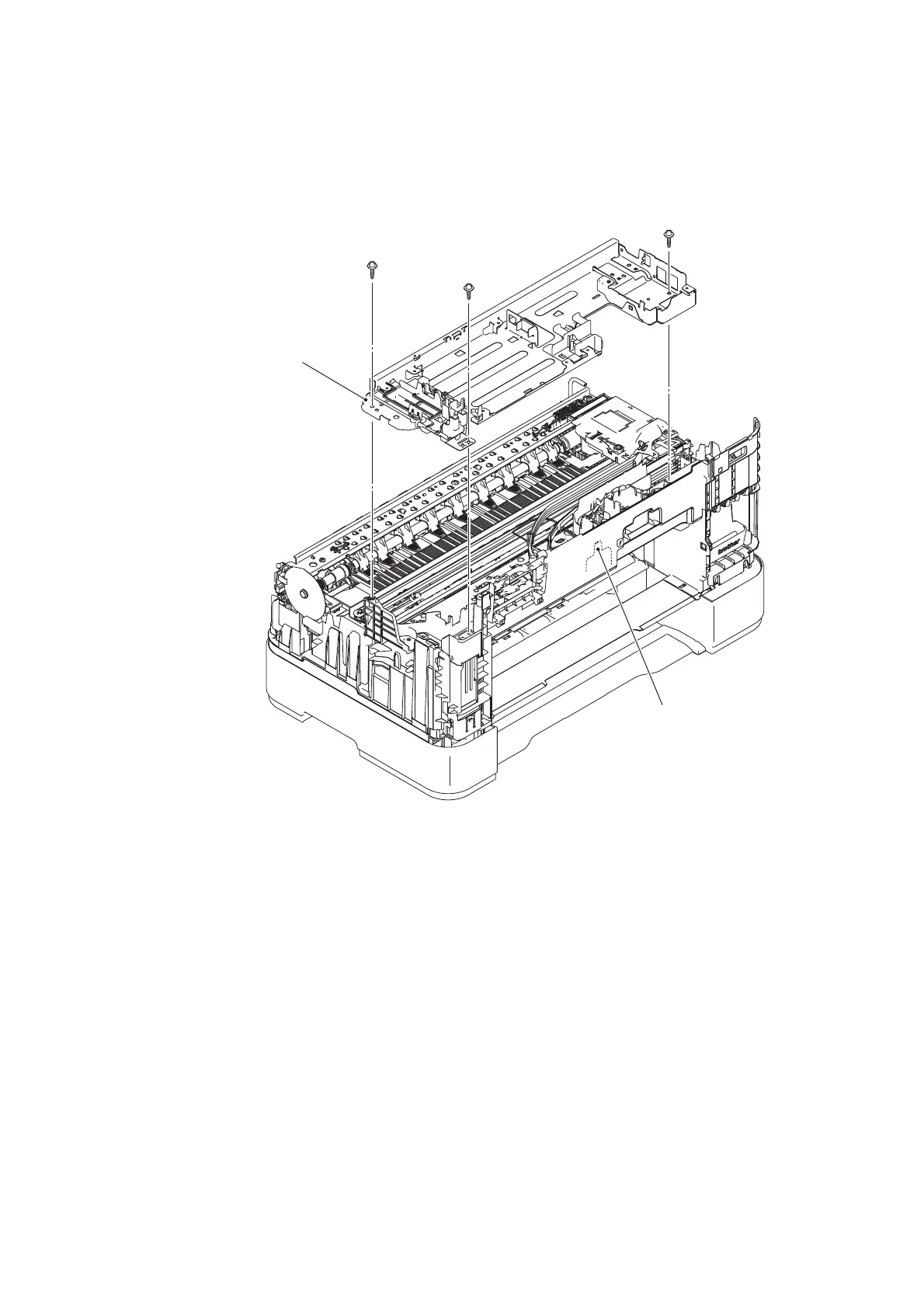

(1) Remove two screws (TAPTITE CUP B M3x10) and one screw (TAPTITE CUP S
M3x6), release the hook at the front center, and take off the Main PCB frame.
Fig. 3-62
Main PCB frame
TAPTITE CUP B M3x10
TAPTITE CUP S M3x6
TAPTITE CUP B M3x10
Hook
