Brother MFC-J2320 Service Manual

3-87
Confidential
9.36 CR Encoder Strip
(1) Release the Lock of the Encoder strip spring and remove the CR encoder strip and
the spring.
Note: Take care not to scratch the CR encoder strip. If it is stained or scratched,
replace it with a new one.

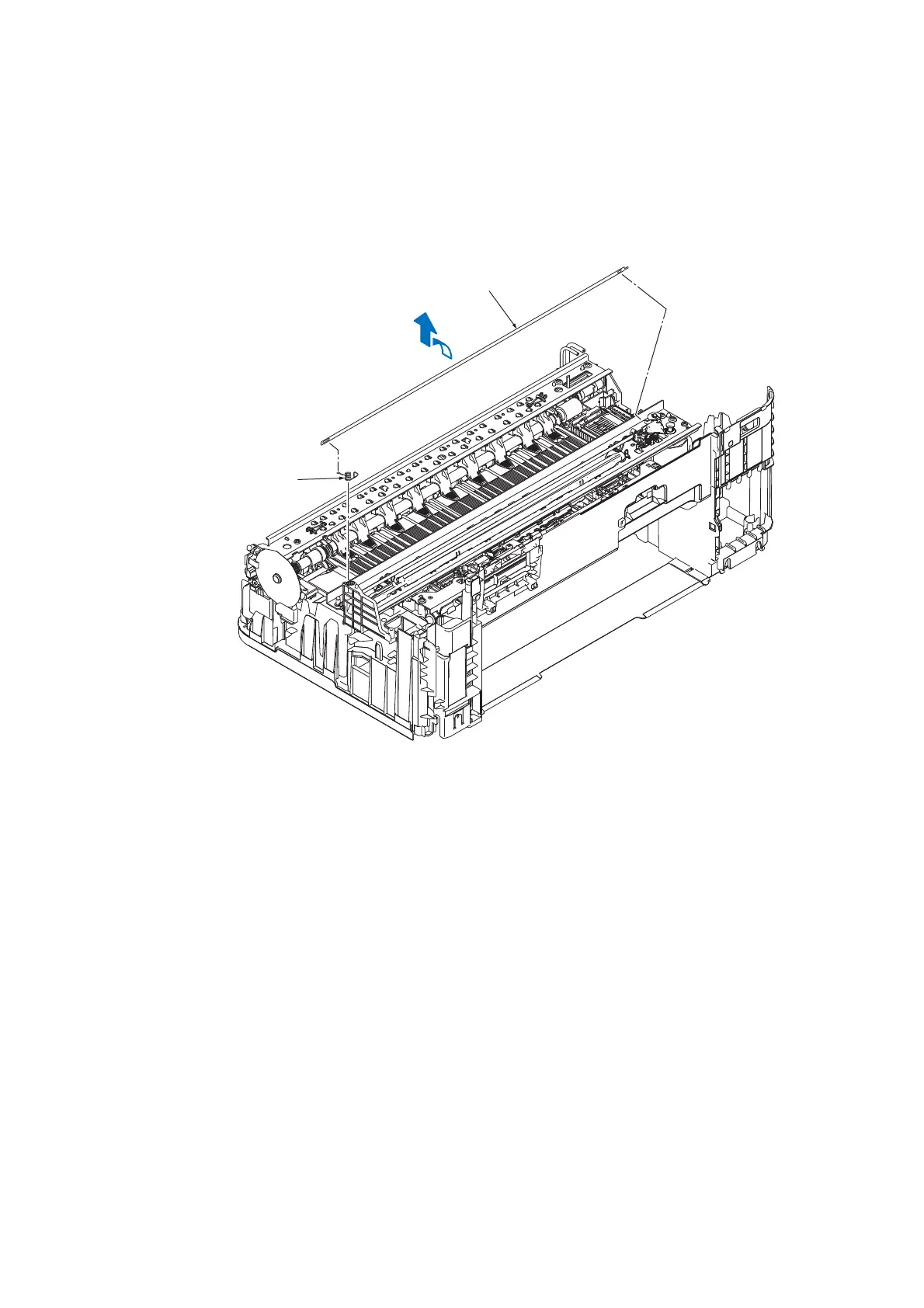

Fig. 3-94
Assembling Note: Set the CR encoder strip so that the ▲-marked end is to the right
(Carriage motor side) and the mark points upwards.
Encoder
strip spring
CR encoder
strip
