3-36
Confidential

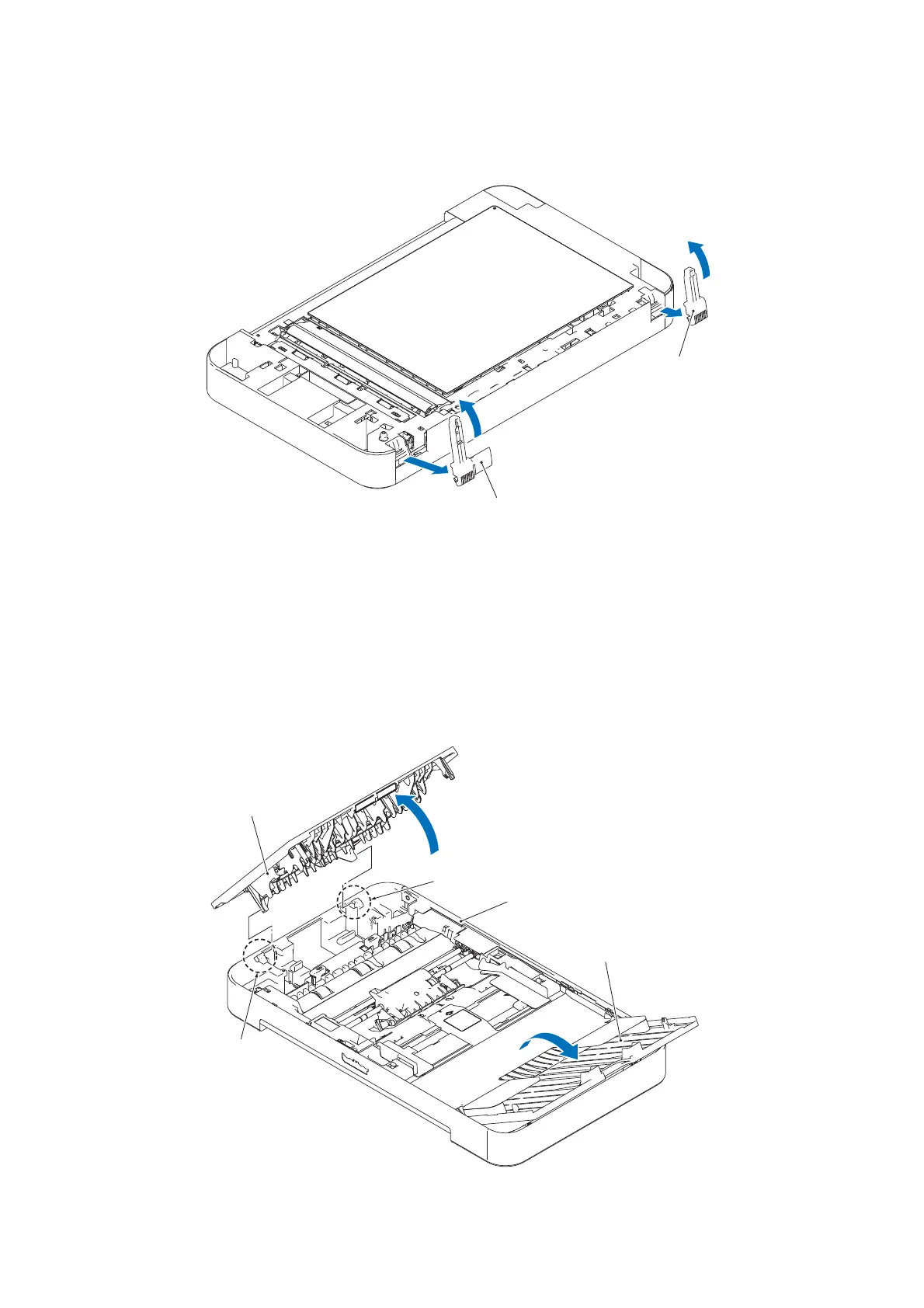

9.6 ADF Hinge L/R
(1) Fully turn the ADF hinge L/R to the front and pull it out to the rear.
Fig. 3-18
9.7 ADF Cover
(1) Open the ADF document support.
(2) Open the ADF cover.
(3) Using a flat screwdriver, release the two Bosses of the ADF unit, and remove the
ADF cover.
Fig. 3-19
ADF hinge L
ADF hinge R
ADF cover
Boss
Boss
ADF unit
ADF document support
2
1
