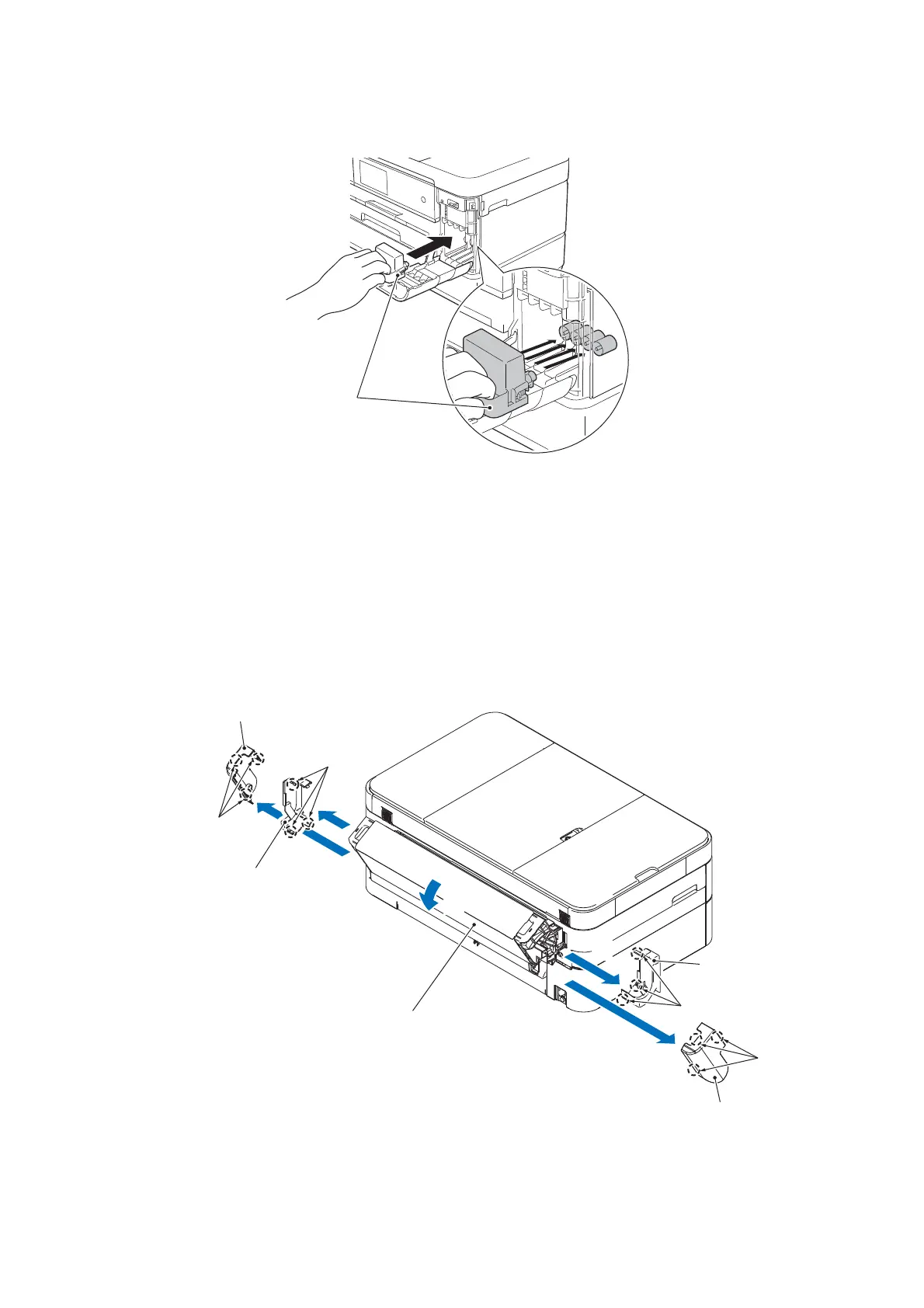

3-26
Confidential
(3) Set the Protective part.
Fig. 3-2
9.2 MP Paper Detection Sensor PCB ASSY
(1) Open the MP tray.
(2) Use a flat screwdriver to release three Hooks and remove the MP side upper cover
L/R.
(3) Use a flat screwdriver to release three Hooks to remove the MP side cover L/R.
Fig. 3-3
Protective parts
MP side upper cover R
Hooks
Hooks
MP side cover R
MP tray
MP side upper cover L
Hooks
Hooks
MP side
cover L
3
2
1
3
2
