3-96
Confidential
9.42 Paper Feed Motor

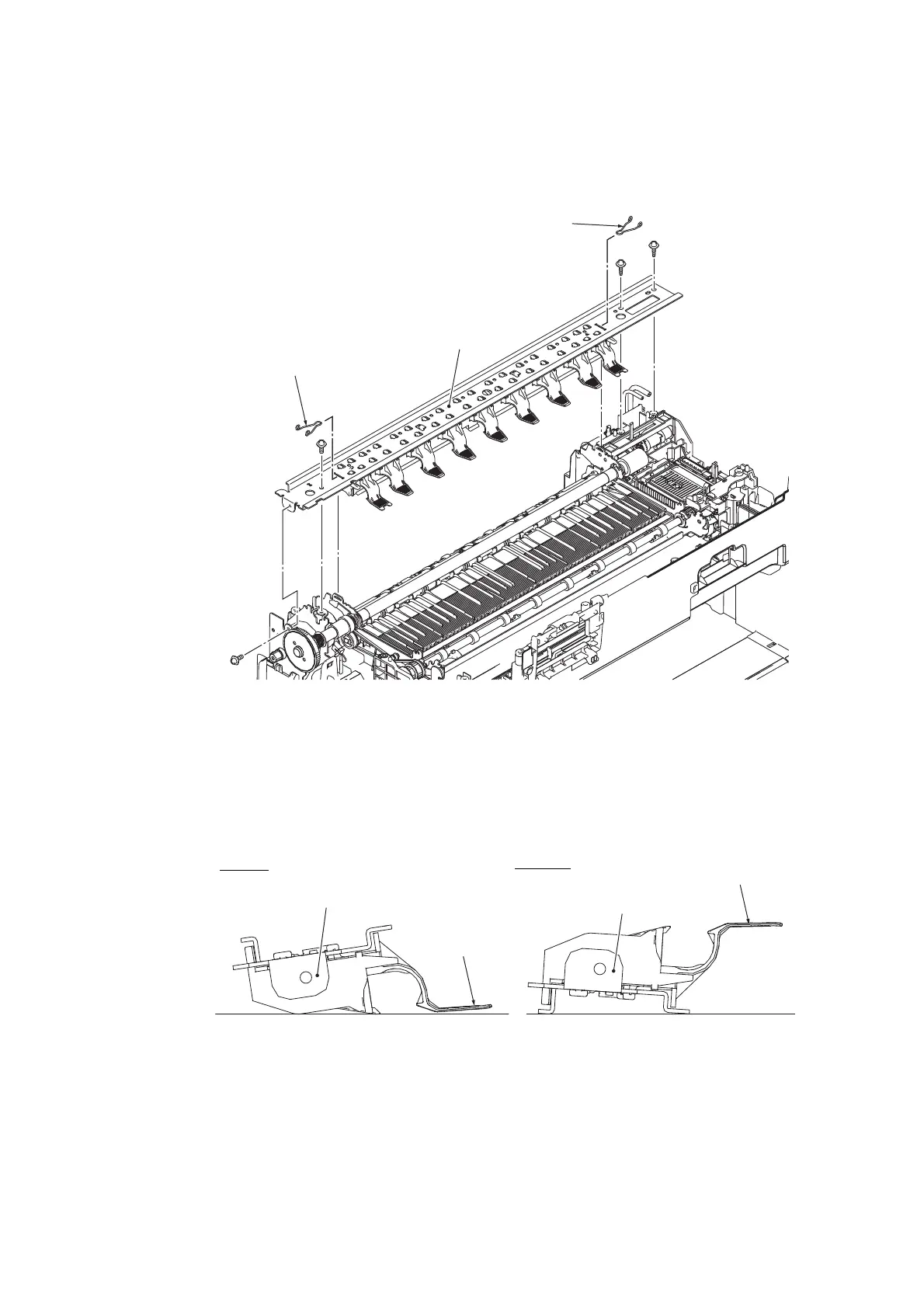

(1) Remove the two screws (TAPTITE CUP B M3x10) and two screws (SCREW BIND
M3x6), remove the two CR guide rail springs, and remove the CR guide rail.
"a": TAPTITE CUP B M3x10
"b": SCREW BIND M3x6
Fig. 3-107
Note: Do not place the removed CR guide rail with the Paper holder down.
Fig. 3-108
CR guide rail spring
CR guide rail
CR guide rail spring
"a"
"a"
"b"
"b"
Paper holder
Paper holder
CR guide rail
CR guide rail
CorrectWrong
