3-50
Confidential
9.15 First Side CIS Unit
(1) Remove the six screws (TAPTITE CUP B M3x10).
(2) Turn the Document scanner unit right side up.
(3) Remove the Document scanner top cover.

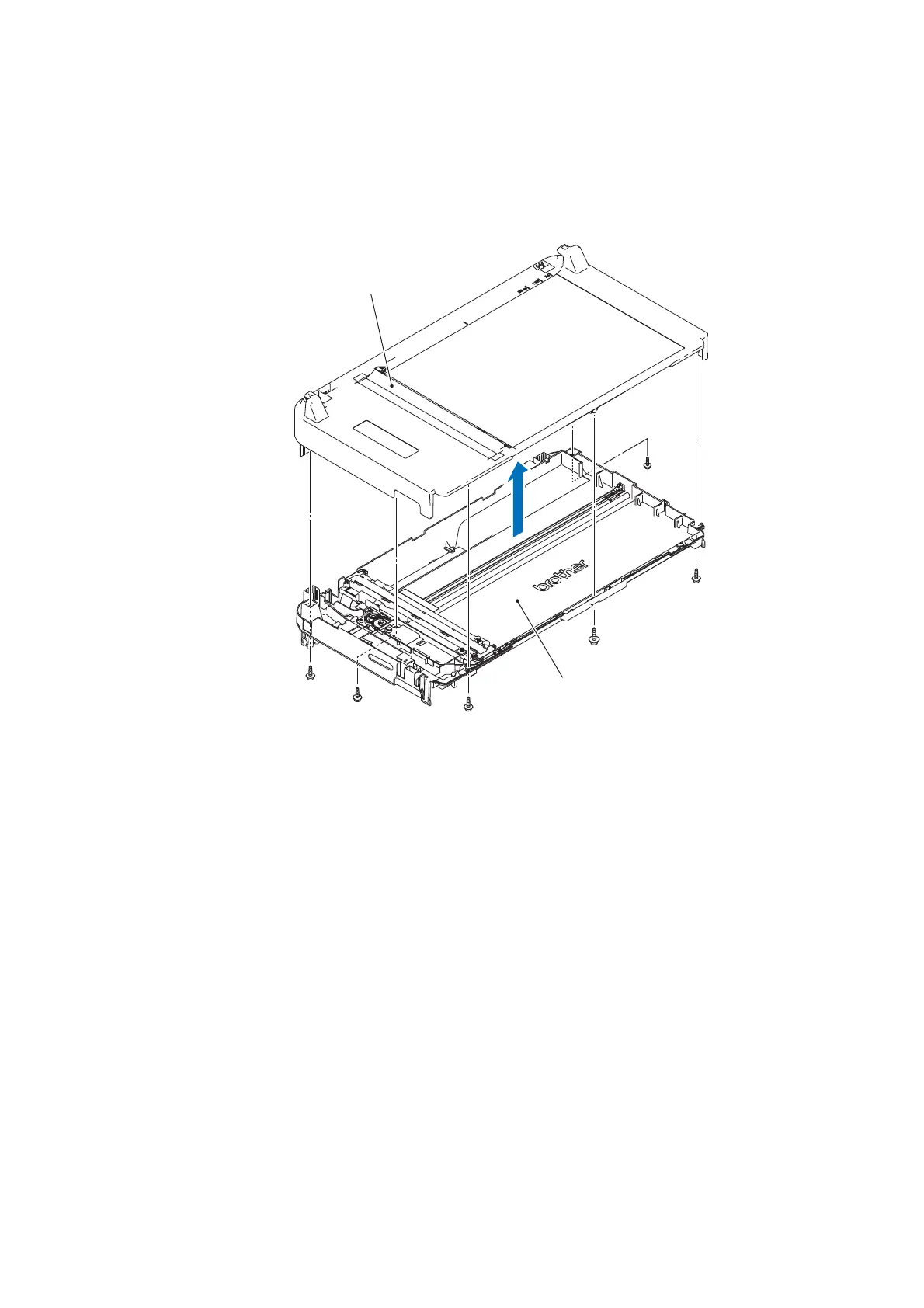

Fig. 3-40
Assembling Note: When attaching the six screws (TAPTITE CUP B M3x10), observe
the order indicated above.
Document scanner top cover
Document scanner bottom cover
TAPTITE CUP B M3x10
1
6
3
5
2
4
