3-55
Confidential
9.18 Ink Cartridge Cover

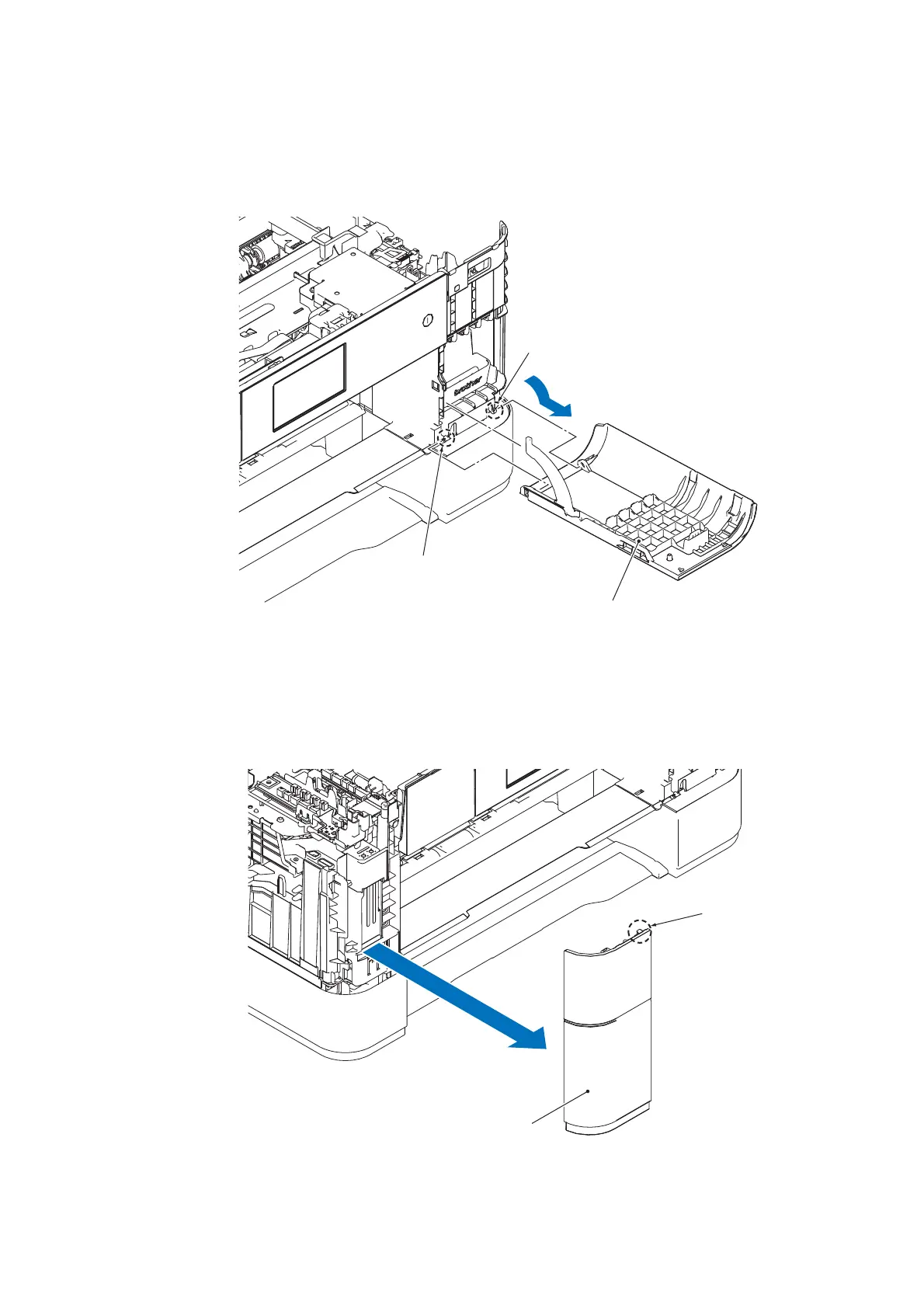

(1) Open the Ink cartridge cover, release the Boss on its right side, and remove the
cover.
Fig. 3-46
9.19 Front Cover
(1) Release the upper Hook on the Front cover and remove the Front cover.
Fig. 3-47
Boss
Boss
Ink cartridge cover
Front cover
Hook
