3-100
Confidential
9.43 Paper Feed Roller
(1) Turn the right and left bushings in the direction of the arrow to unlock them.
(2) Remove the Paper feed roller.

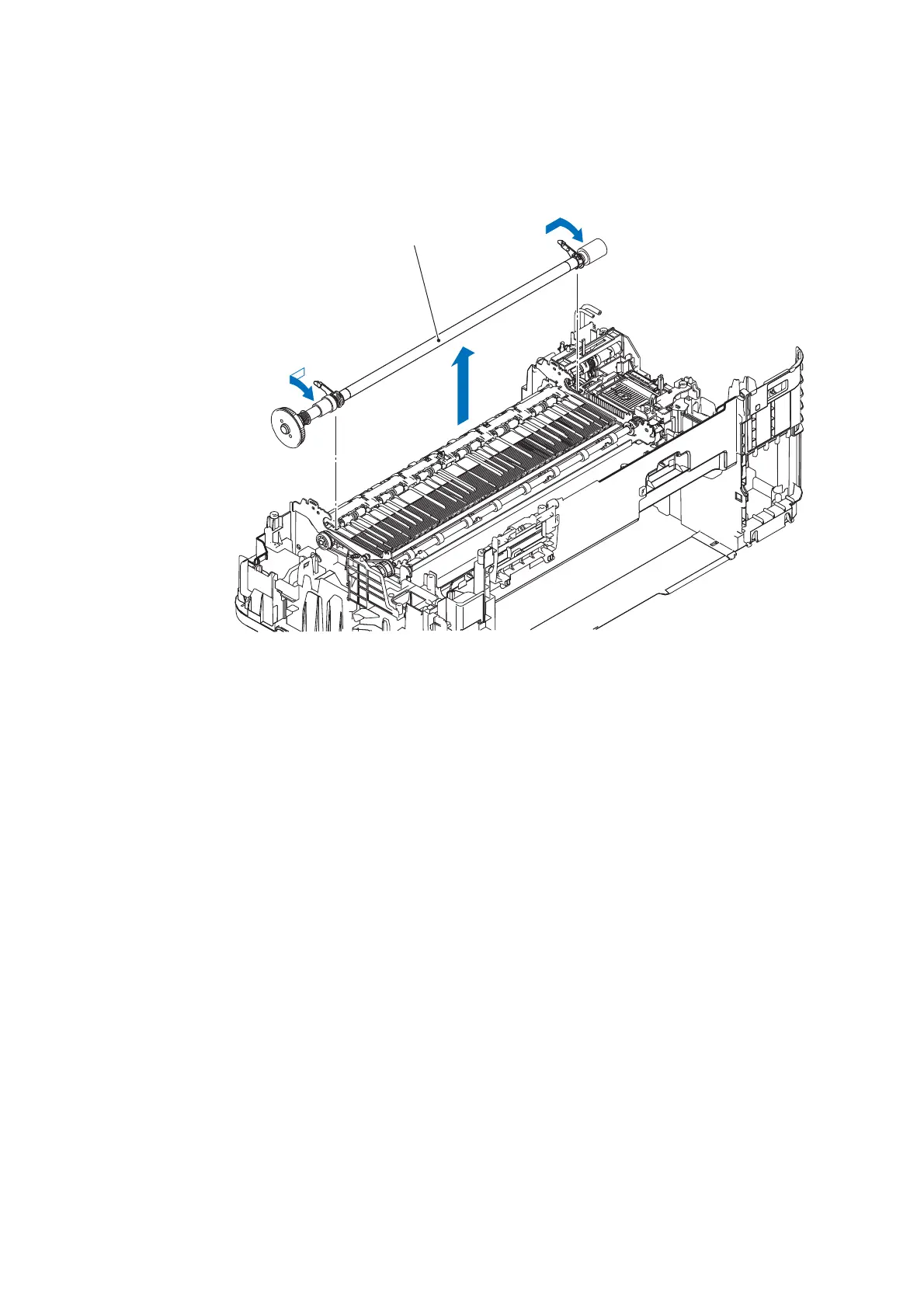

Fig. 3-113
Assembling Note: When mounting the Paper feed roller, hold the left and right
bushing without touching the roller part.
Paper feed roller
2
1a
1b
