3-91
Confidential
Assembling Note: Tighten screw "C" (TAPTITE CUP S M3x6) temporarily. After
setting the Head/carriage unit and the CR timing belt, tighten screw "C" firmly.

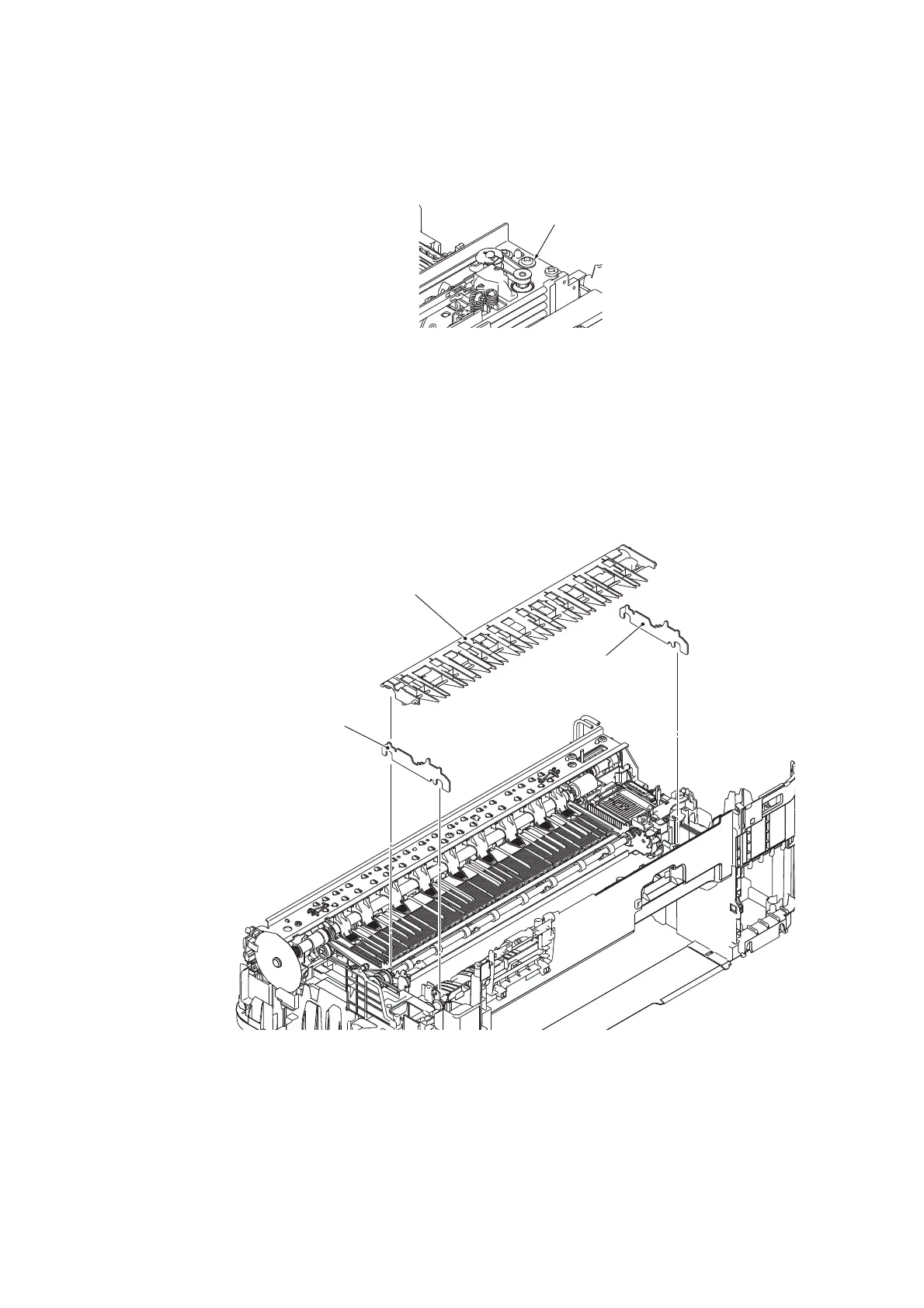

Fig. 3-100
9.39 Switchback Roller
(1) Remove the Switchback inner paper guide.
(2) Remove the two Switchback side frames.
Fig. 3-101
"C"
Switchback
side frame
Switchback
side frame
Switchback inner
paper guide
