3-79
Confidential
(10) Release the three Hooks and remove the T2 bank ASSY.

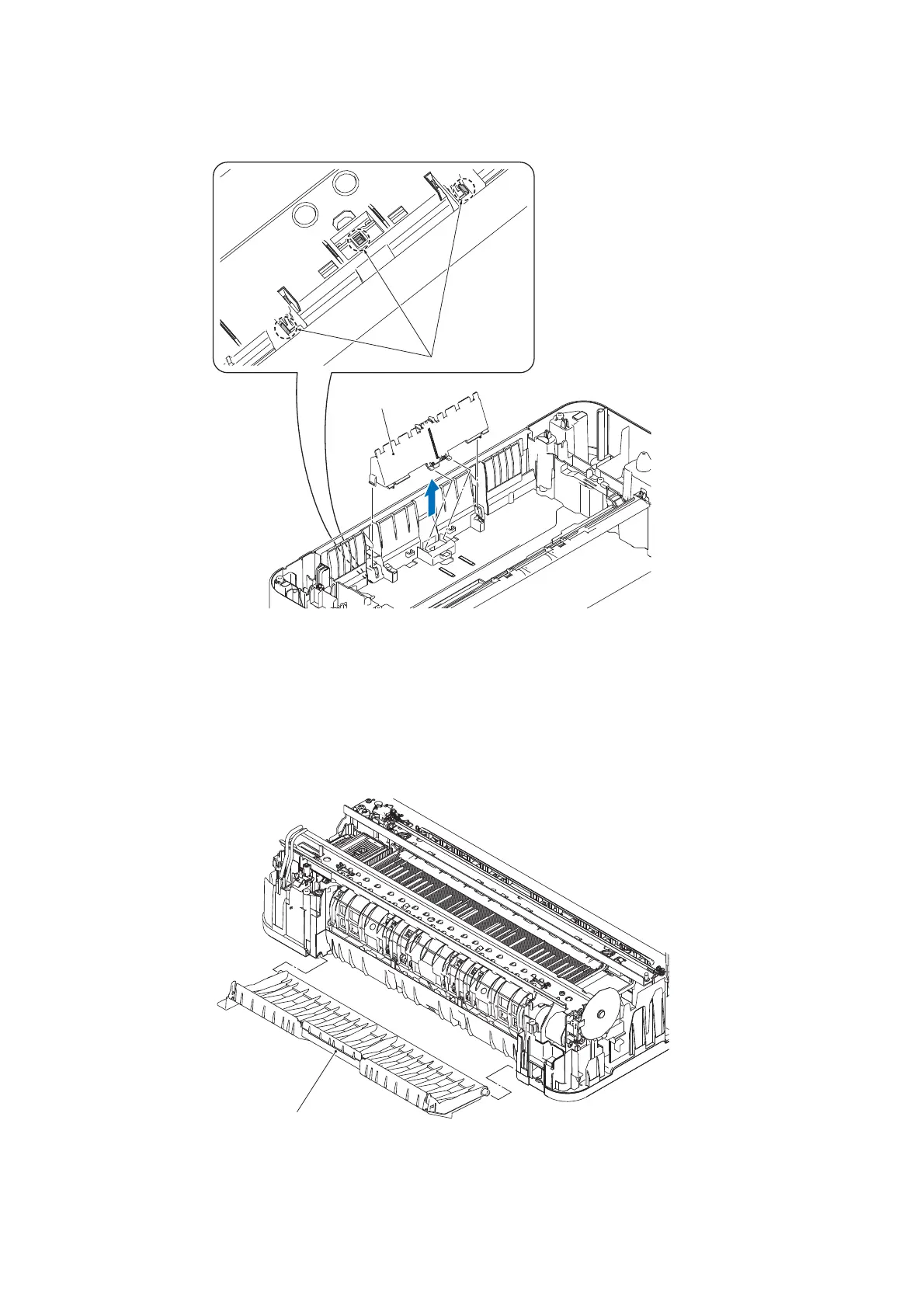

Fig. 3-82
9.31 Jam Clear Cover
(1) Release either one of the Bosses provided on the ends of the Jam clear cover and
remove the Jam clear cover.
Fig. 3-83
T2 bank ASSY
Hooks
Jam clear cover
