Brother MFC-J2320 Service Manual

3-58
Confidential
9.22 Control Panel ASSY

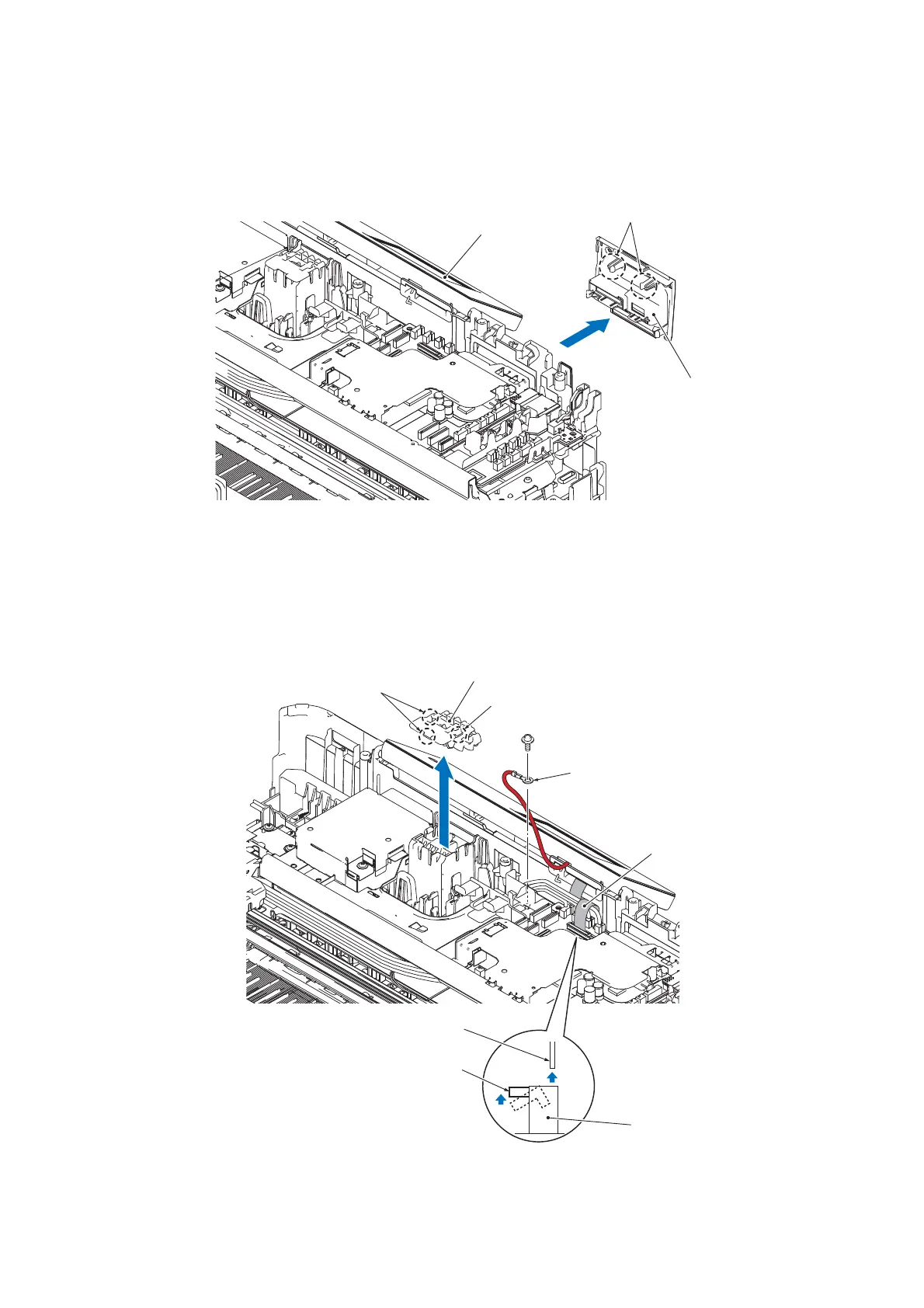

(1) Release the two Hooks on the Inner media module cover and
remove the cover to the front.
Fig. 3-51
(2) Release the three Hooks on the Tilt hook stopper and remove the stopper.
(3) Remove the screw (TAPTITE CUP S M3x6) to release the Panel grounding wire.
(4) Release the Lock of the connector and remove the Panel flat cable.
Fig. 3-52
Control panel ASSY
Hooks
Inner media
module cover
Hooks
Hook
Tilt hook stopper
TAPTITE CUP S M3x6
Panel grounding wire
Panel flat
cable
Connector
Release the Lock.
Panel flat cable
