Brother MFC-J2320 Service Manual

3-43
Confidential
9.11 ADF Separation Pad Holder ASSY

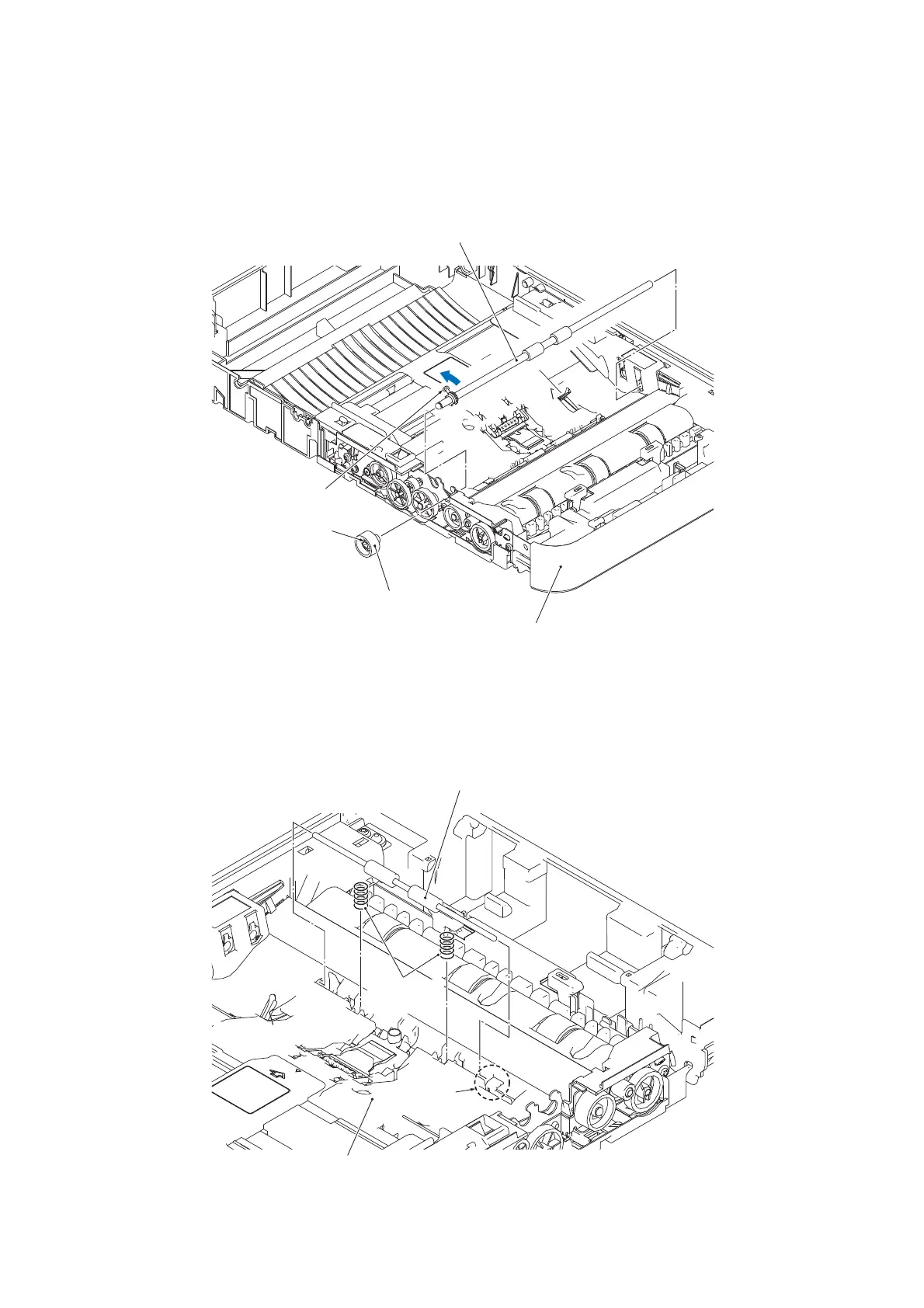

(1) Release the Hook of the Gear and remove the Gear.
(2) Rotate the Bushing of the LF roller to release the lock.
(3) Remove the LF roller.
Fig. 3-30
(4) Release the Hook, and remove the LF roller S.
(5) Remove the two LF roller S springs.
Fig. 3-31
Gear
Hook
Bushing
ADF unit
LF roller
LF roller S
Hook
ADF unit
LF roller S
springs
