3-64
Confidential
9.26 Modem PCB ASSY
(1) Release the wiring of the Modem PCB flat cable.
(2) Remove the screw (TAPTITE CUP S M3x6) and take off the Modem shield.
(3) Remove the screw (TAPTITE CUP S M3x6) and take off the Modem PCB ASSY.

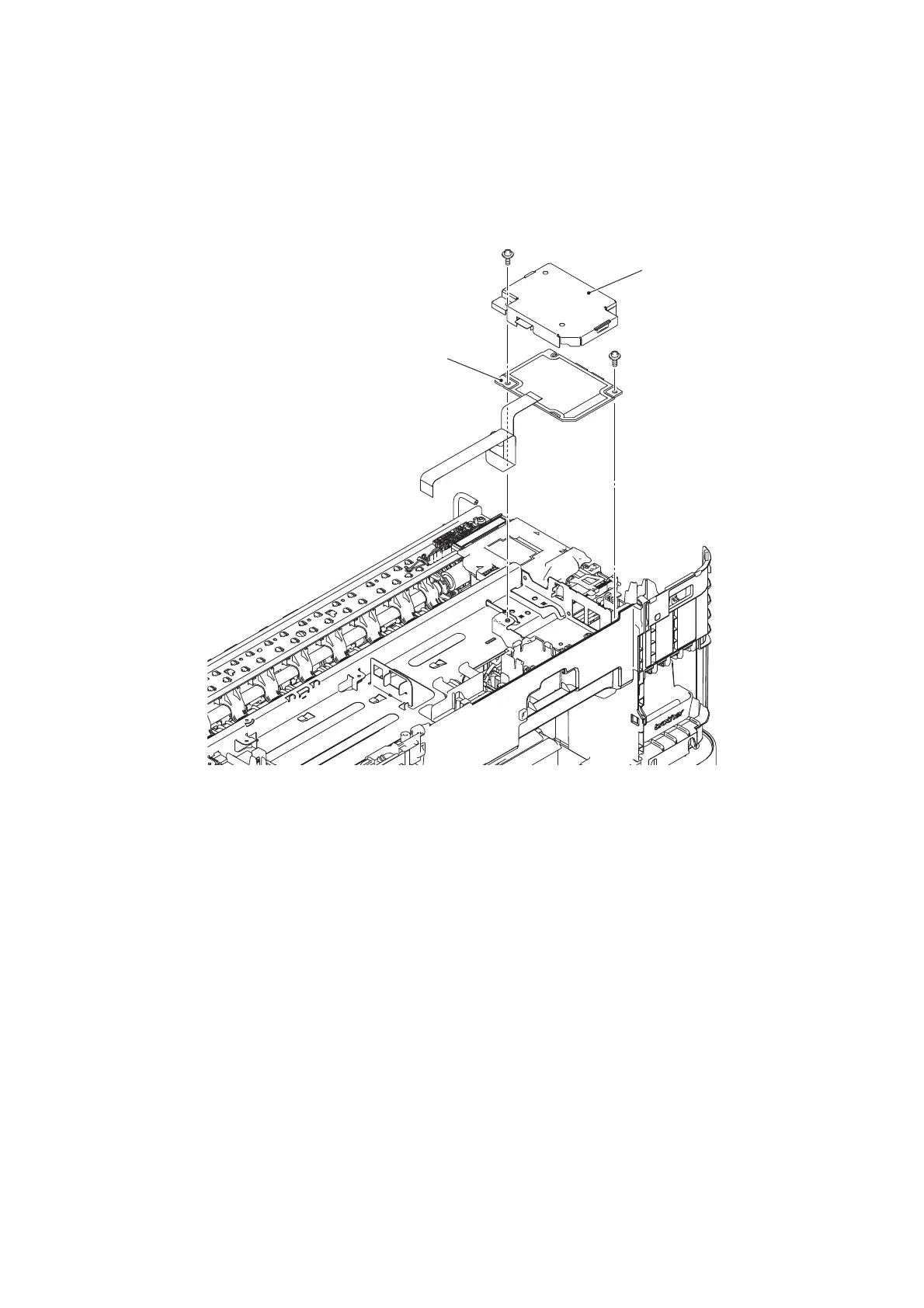

Fig. 3-61
Modem PCB ASSY
Modem shield
TAPTITE CUP S M3x6
